[Technical tips] Touch Calibration on Panel PC (Windows 10/11)

March 31, 2025

When touch input does not match the display position, follow these steps to calibrate your Panel PC.

TouchScreenCalibration_PPC

Calibration Steps

Step 1: Download the Touch Driver

Search for your device model on the ICOP website. On the product page, go to the Technical Resource section and download the appropriate Touch Driver.

Step 2: Install the Driver via USB

Save the downloaded driver onto a USB flash drive. Insert it into the Panel PC, run the installation file, and follow the on-screen instructions to complete the setup.

Step 3: Open eGalaxTouch and Perform Calibration

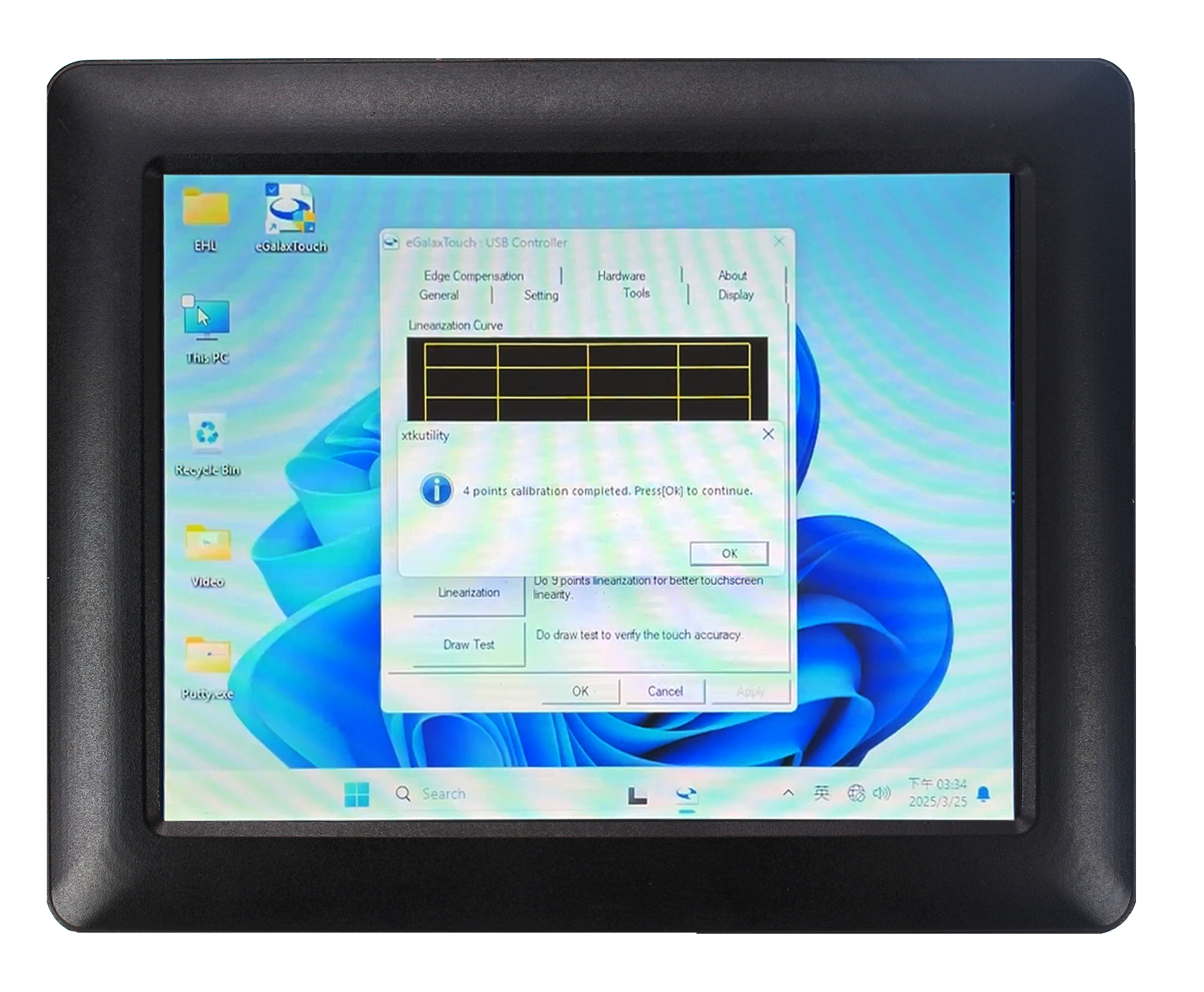

Launch the eGalaxTouch MFC application, go to the "Tools" tab, select "4 Points Calibration", and follow the prompts to tap each point shown on the screen. Click "OK" to complete the calibration.

Calibration Complete

Once completed, the touch input will align accurately with the display, ensuring a better user experience.

Continue Reading:

How to Calibrate the Touch Screen on a Panel PC in Debian

TouchScreenCalibration_PPC

Main features of PPC-104T-EHL:

Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz)
8GB / 16GB / 32GB SO-DIMM DDR4
2S/6U/2HDMI/2 2.5GLAN/Audio/M.2/12~24V Power Adapter
10.4 inch TFT 800x600 Resolution LCD with resistive touchscreen
Operation Temperature: 0 ~ +60°C
CE/FCC/VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration
OS: Windows 10 & Windows 11 (64-bit) Linux

For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
