This guide explains how to calibrate the touch screen on ICOP Vortex86 DX3 processor series Panel PCs, applicable for systems running Debian.

Calibration Steps

sudo xinput_calibrator --output-filename /usr/share/X11/xorg.conf.d/99-calibration.conf

Enter the following command in the terminal to start the touch screen calibration tool:

After running the command, the screen will automatically switch to the "Touchscreen Calibration" interface.
Tap the calibration points shown on the screen. Using a stylus is recommended for better precision.
You have successfully setup Docker and ran your first application.

Once the calibration is complete, the screen will return to the desktop, and the calibration results will be applied.

If the touch function does not work properly after calibration, please restart the system to ensure the calibration results take effect.

※ By following the above steps, your Panel PC's touch screen will be successfully calibrated!

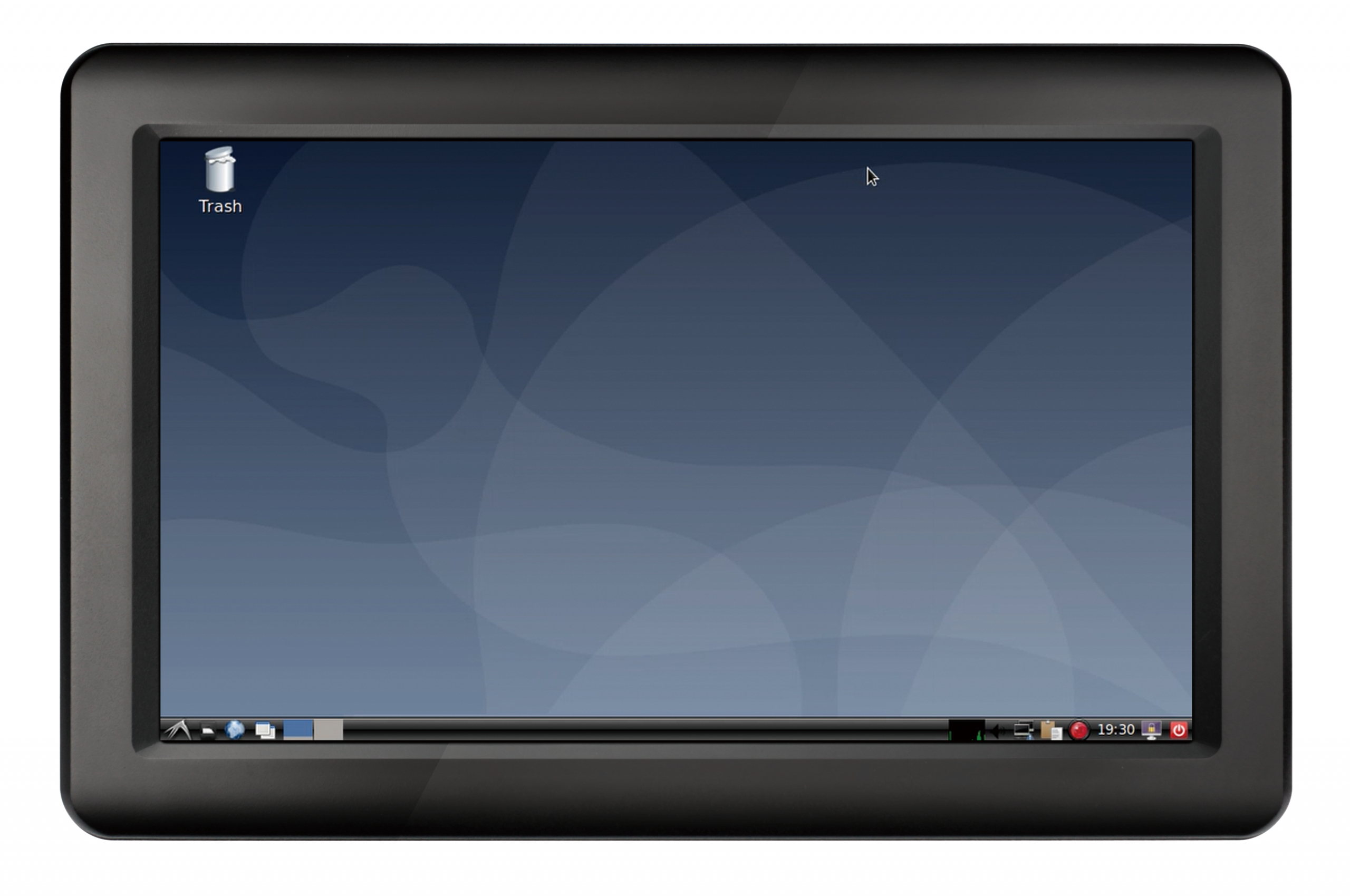

DM&P SoC Vortex86DX3- 1GHz
1GB / 2GB DDR3 onboard
2S/3U/GLAN/LAN/Audio/SATA/CF/12~24V
9" TFT 1024x600 Resolution LCD with Resistive or Projected Capacitive touch screen
Operation Temperature: 0 ~ +50°C / -20 ~ +60°C (Optional)
CF & SATA sockets onboard
CE/FCC/VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration
Optional: 512MB~4GB Flash onboard / GLAN / WLAN / Expansion I/O functions for additional PoE, 5S or 3S with 16bit-GPIO

For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
