The Vortex86 SoC series are 32-bit x86-architecture microprocessors compatible with Windows, Linux and 32-bit Real-Time Operating Systems. The CPU clock ranges from a single-core 300MHz to dual-core 1GHz and integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB ...etc., and most of the legacy I/O interface into one single BGA package.
|

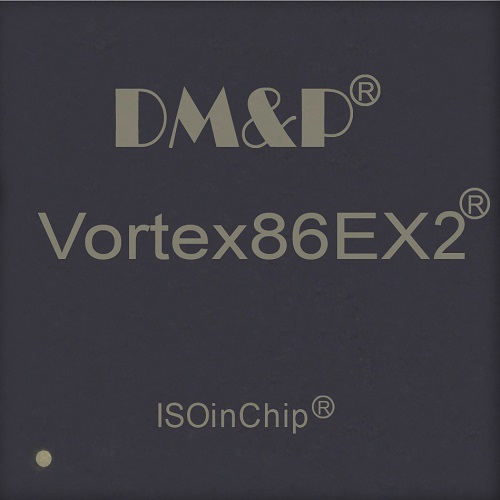

Vortex86EX2
|
2018 March
|
The two independent cores CPU with I/O configurable
|
|

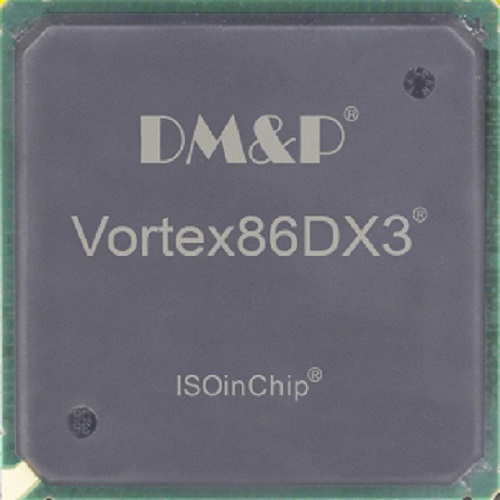

Vortex86DX3
|
2014 October
|
The 1GHz Dual Core CPU with selectable I/O
|
|

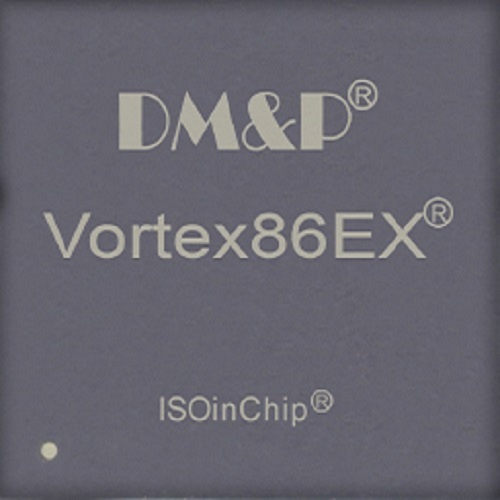

Vortex86EX
|
2013 March
|
The I/O configurable CPU
|
|
Vortex86DX2
|
2012 May
|
The first-ever CPU with build-in Motion Control function
|
|

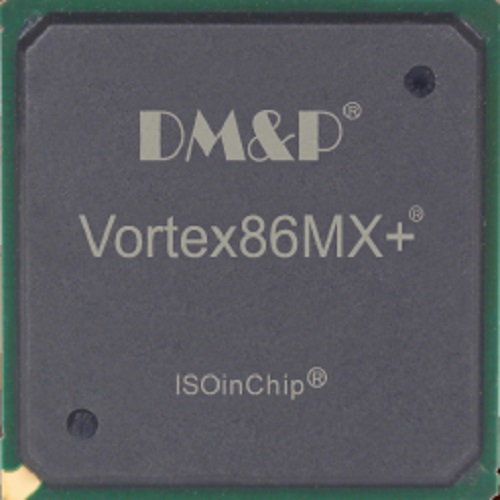

Vortex86MX+
|
2010 June
|
The CPU for ULPC
|
|

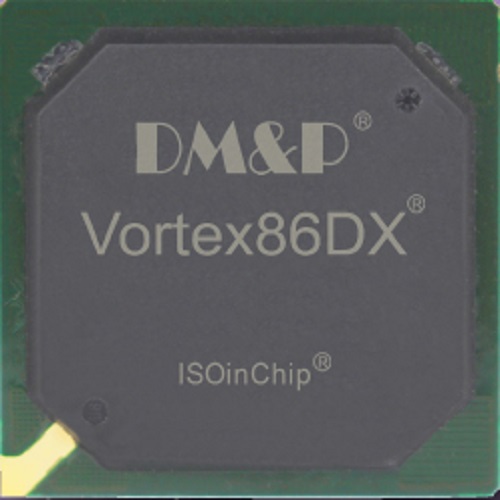

Vortex86DX
|
2008 August
|
The CPU design for industrial application
|
|

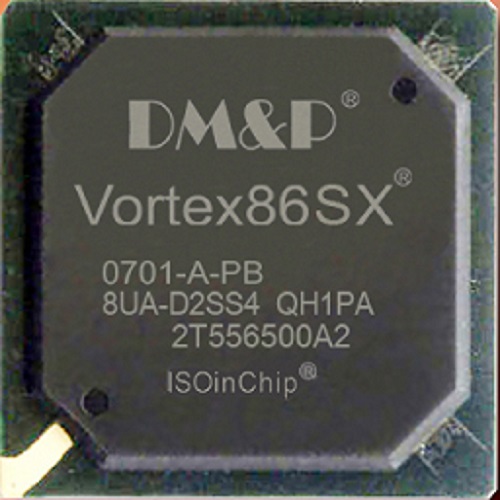

Vortex86SX
|
2007 February
|
The first SoC with build-in North & South Bridge
|
|
M6117D
|
1998 July
|
The very first CPU of DMP
|

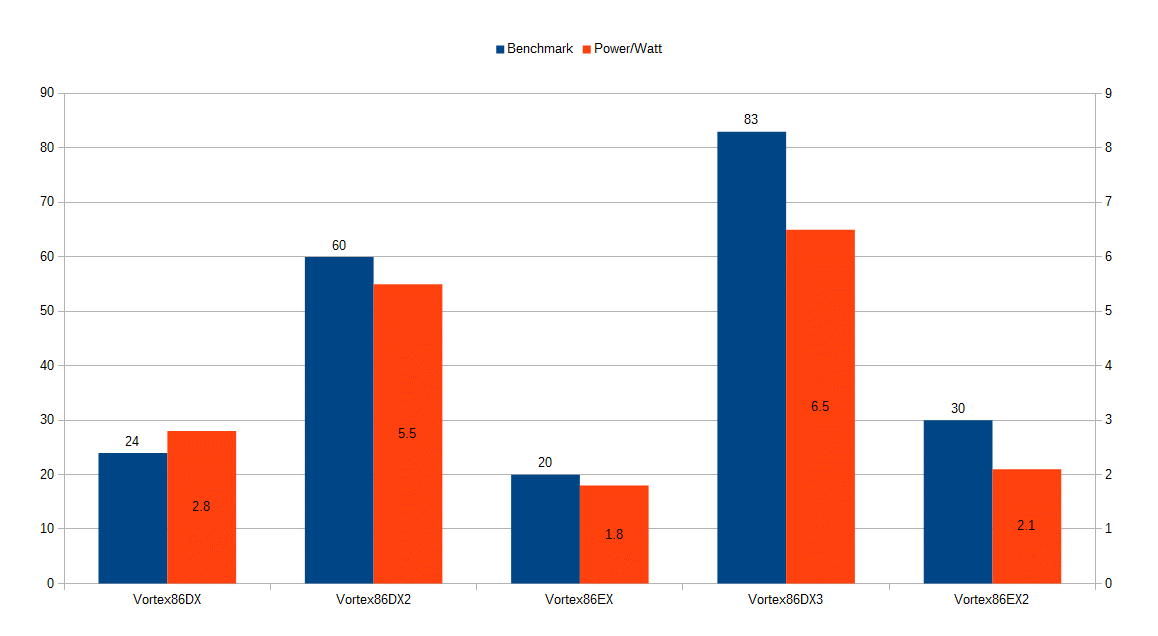

Vortex86CPU supports most of OS and RTOS that provides standard x86 BSP. For reference list, please refer to OS Support List.
|
Vortex86EX2 |
Vortex86DX3 |
Vortex86EX |
Vortex86DX2 |
Vortex86MXplus |
Vortex86DX |
Vortex86SX |
|
|---|---|---|---|---|---|---|---|
| Frequency | 600 MHZ (typ.) | 1000 MHZ (typ.) | 400 MHZ (typ.) | 800 MHZ (typ.) | 933 MHZ (typ.) | 800 MHZ (typ.) | 300 MHZ (typ.) |
| Core | Two (600+400 MHz) |
Dual | Single | Single | Single | Single | Single |
| Process | 65nm | 40nm | 90nm | 90nm | 90nm | 90nm | 130nm |
| FPU | Yes | Yes | Yes | Yes | Yes | Yes | N/A |
| L1 Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache |
| L2 Cache | 128KB | 256KB | 128KB | 256KB | 256KB | 256KB | N/A |
| DRAM Bus | 16-bit DDR3 2GB Max. (2-bit ECC) |
32-bit DDR3 2GB Max. | 16-bit DDR3 1GB Max. | 32-bit DDR2 2GB Max. | 32-bit DDR2 1GB Max. | 16-bit DDR2 1GB Max. | 16-bit DDR2 512MB Max. |
| GPU | N/A (Available with external PCIe Graphic chip - Vortex86VGA) |
2D Engine, CRT/LCD, UMA, Dual Display |
N/A (Available with external PCIe Graphic chip - Vortex86VGA) |
2D Engine, CRT/LCD, UMA | 2D Engine, CRT/LCD | N/A | N/A |
| HD-Audio | Yes | Yes | Yes | Yes | Yes | N/A | N/A |
| WatchDog | 2 | 2 | 1 | 2 | 2 | 2 | 2 |
| PCI Bus | PCI + PCIe x 2 | PCIe x 2 | PCIe x 1 | PCIe x 2 | Yes | Yes | Yes |
| ISA Bus | Yes | Yes | x-ISA | Yes | N/A | Yes | Yes |
| LPC Bus | N/A | N/A | N/A | N/A | Yes | Yes | Yes |
| USB | USB 2.0 Host x 2 | USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 2 USB 1.1 Client x 1 |
USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 4 |
| Serial Port | 10 max. | 9 max. | 10 max. | 9 max. | 3 max. | 5 max. | 5 max. |
| GPIO Port | 128-bit max. | 88-bit max. | 80-bit max. | 88-bit max. | 40-bit max. | 40-bit max. | 40-bit max. |
| Ethernet (10/100Mbps) | 2 | 1 | 1 | 1 | 1 | 1 | 1 |
| SD/MMC | 3 | 2 | 2 | 2 | 2 | 2 | N/A |
| SATA/IDE | N/A | IDE + SATA | SATA | IDE + SATA | IDE | IDE | IDE |
| Parallel Port | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| CAN | 2 | 0 | 1 | 0 | 0 | 0 | 0 |
| I²C | 2 | 2 | 1 | 2 | 2 | 2 | 2 |
| SPI | 2 | 2 | 1 | 2 | 2 | 1 | 1 |
| ADC | 12-bit x 16 chan. | 11-bit x 8 chan. | 11-bit x 8 chan. | N/A | N/A | N/A | N/A |
| Package Size | 19 x19 mm | 31 x 31 mm | 16 x 16 mm | 31 x 31 mm | 31 x 31 mm | 27 x 27 mm | 27 x 27 mm |
| Ambient Temp | -40 ~ +85°C | -40 ~ +85°C | -40 ~ +85°C | -40 ~ +85°C | -20 ~ +70°C | -40 ~ +85°C | -40 ~ +85°C |
