Specifications
Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz)
8GB / 16GB / 32GB SO-DIMM DDR4
2S/6U/2HDMI/2 2.5GLAN/Audio/M.2/12~24V Power Adapter
Operation Temperature: 0 ~ +60°C
10.4 inch TFT 800x600 Resolution LCD with resistive touchscreen
2 external HDMI as second and third display
M.2 M-key (2242/2280) PCIe Gen.3 *2/SATA interface support NVME
M.2 B-key (3024) USB3.1/USB2.0 interface
M.2 E-key (2230) USB2.0/PCIe Gen3 *1 interface
Intel® i225-V 2.5GbE x2
| LCD Display |
Type | SVGA TFT-LCD | |
| Size | 10.4" | ||
| Resolution (Pixel) | 800 x 600 | ||
| Brightness | 500 cd/m2 | ||
| Backlight life | 50,000 hours | ||
| Touch Screen Type | Analog Resistive | ||
| Processor | Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz) | ||
| System RAM | 8GB / 16GB / 32GB DDR4 Memory | ||
| BIOS | AMI BIOS | ||
| Expansion | M.2 B-key (3024) USB3.1/USB2.0 interface M.2 E-key (2230) USB2.0/PCIe Gen3 *1 interface |
||
| Display | HDMI x2 | ||
| Ethernet | Intel® i225-V 2.5GbE x2 | ||
| Audio | HD Audio Realtak ALC888S | ||
| Disk Support | M.2 M-key (2242/2280) PCIe Gen.3 *2/SATA interface support NVME | ||
| Serial Ports | RS232/422/485 x1 (COM1) | RS232 x1 (COM2) | |
| USB Ports | USB3.1 x3 | USB2.0 x3 | |
| Power Requirement | +12~+24V Power Adapter Only | ||
| Operating Temperature | 0°C to +60°C | ||
| Storage Temperature | -30°C to + 70°C | ||
| Dimensions (W x H x D) mm | 273.44 x 219.84 x 56.05 | ||
| OS Support | Windows 10 & Windows 11 (64-bit) Linux |
||
| Certificate | CE, UKCA, FCC, VCCI, Shock, Vibration, IP65 (Front Panel) | ||
| Part Number | Description |
| PPC-104T-EHL-J6-8G | PPC-104T-EHL Series with Intel® Elkhart Lake J6412, 8GB DDR4 Memory, 2S, 2*2.5GLAN and Resistive Touch |
| PPC-104T-EHL-J6-16G | PPC-104T-EHL Series with Intel® Elkhart Lake J6412, 16GB DDR4 Memory, 2S, 2*2.5GLAN and Resistive Touch |
| PPC-104T-EHL-J6-32G | PPC-104T-EHL Series with Intel® Elkhart Lake J6412, 32GB DDR4 Memory, 2S, 2*2.5GLAN and Resistive Touch |
| POWER-12V3.34A-MW | AC – DC power adapter / DC12V @ 3.34A (AC 90 ~ 240V Input) |
| POWERCABLE(A) / (G) / (EU) /(AU) |
US / EU / UK / AU & NZ power cord for POWER-12V3.34A-MW |
| VESA-MT-PPC-EHL-SET | VESA mount bracket set |
| PANEL-MT-PPC-APL-SET | Panel mount set with clamps and screws |
ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-104T-EHL is powered by Intel® Elkhart Lake J6414 SoC Processor and 8GB / 16GB / 32GB SO-DIMM DDR4 module that handles processing more efficiently and provides faster performance. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.
The new PPC-104T-EHL inherited the PPC series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. The versatile I/O ports, IP65 front panel, 2.5 GbE high-speed Ethernet, etc., can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption, and fanless design.
The PPC-104T-EHL supports Windows 10, Windows 10 IoT, Windows 11, and Linux to meet ready-to-market demand and provide competitive advantages for customers.

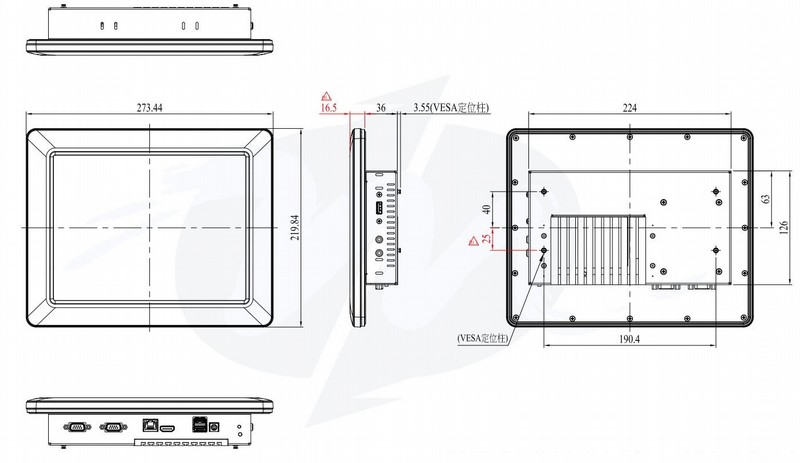

Dimensions:
