Specifications
DM&P SoC Vortex86DX3- 800MHz
1GB / 2GB DDR3 onboard
1S/7U/HDMI/LVDS/GbE/I2C/SPI/AUDIO/4PCIe 1.0/8-bit GPIO/SD/SATA
Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
Without: Display Port
Long life-cycle guarantee
Qseven 2.1 specification compliant
| CPU | DM&P Vortex86DX3 800MHz L1: 32K I-Cache, 32K D-Cache, L2 Cache: 512KB | |||
| RAM | 1/2GB DDR3 Onboard | |||
| BIOS | AMI BIOS | |||
| Expansion | PCIe 1.0 x4 | |||
| Display |
HDMI: Maximum resolution up to 1920 x 1080 @ 60Hz (Display output only) LVDS(Single): Maximum resolution up to 1024 x 768 LVDS(Dual): Maximum resolution up to 1920 x 1080 |
|||
| LAN | RTL8111F Giga Ethernet x1 | |||
| Audio | HD Audio | |||
| I/O Interface | SATA x1 USB (ver. 2.0) x7 I²C x1 |
SD x1 RS232 (TX/RX) x 1 8-bit GPIO SPI x1 |
||
| Power Requirement |
TBA | |||
| Operating Temperature | -20C ~ +70°C (Single Core) -40°C ~ +85°C (Optional for Single Core) |
-10°C ~ +60°C (Dual Core) -20°C ~ +70°C (Optional for Dual Core) |
||
| Dimension | 70 x 70mm | |||
| Weight | 63g | |||
| O/S Support | Windows 7 Windows Embedded Standard 7 Windows Embedded Compact7 Windows Embedded CE6.0 Windows XP Professional Windows Embedded 2009 |
Linux DOS POS Ready (WePOS) QNX VxWorks Free BSD |
||
Module:
| PART NO. | CPU | DRAM (DDR3) | Storage | Display | GbE | USB (ver. 2.0) |
RS232 (TX/RX) | 8-bit GPIO | PCIe | SPI | I²C | Audio |
| VDX3-Q7-54E | 800MHz | 1GB | SATA, SD | HDMI, LVDS | 1 | 7 | 1 | 1 | 4 | 1 | 1 | HD Audio |
| VDX3-Q7-55E | 800GHz | 2GB | SATA, SD | HDMI, LVDS | 1 | 7 | 1 | 1 | 4 | 1 | 1 | HD Audio |
Accessories:
| Item number | Product Description |
| Heatsink-Q7-set | Heatsink set for VDX3-Q7 |
| VDX3-Q7-DEV | Development board for VDX3-Q7 |
The VDX3-Q7 is a low-power CPU module that is compliant with the Q7 standard. It takes advantage of x86-structure Vortex86DX3 1GHz SoC integrates PCI Express, SATA, eMMC, SPI, I2C, GPIO, VGA, LVDS, USB, COM, GLAN, and HD Audio, etc., designed to meet a wide variety of applications.
The VDX3-Q7 is designed as a plug-in replacement, with backward compatibility to support legacy software to extend the existing product life cycle without heavy re-engineering for applications based on the QSEVEN module.

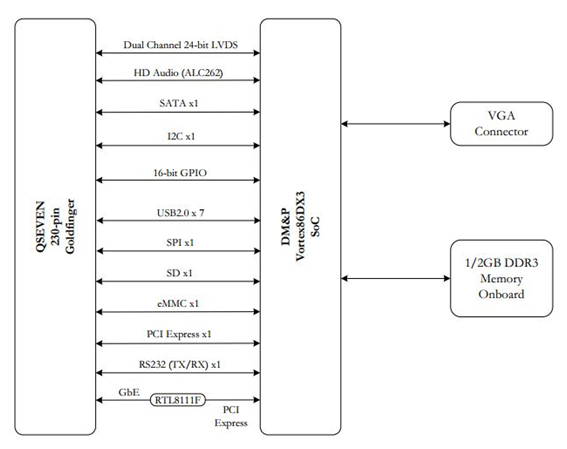

Block Diagram:
