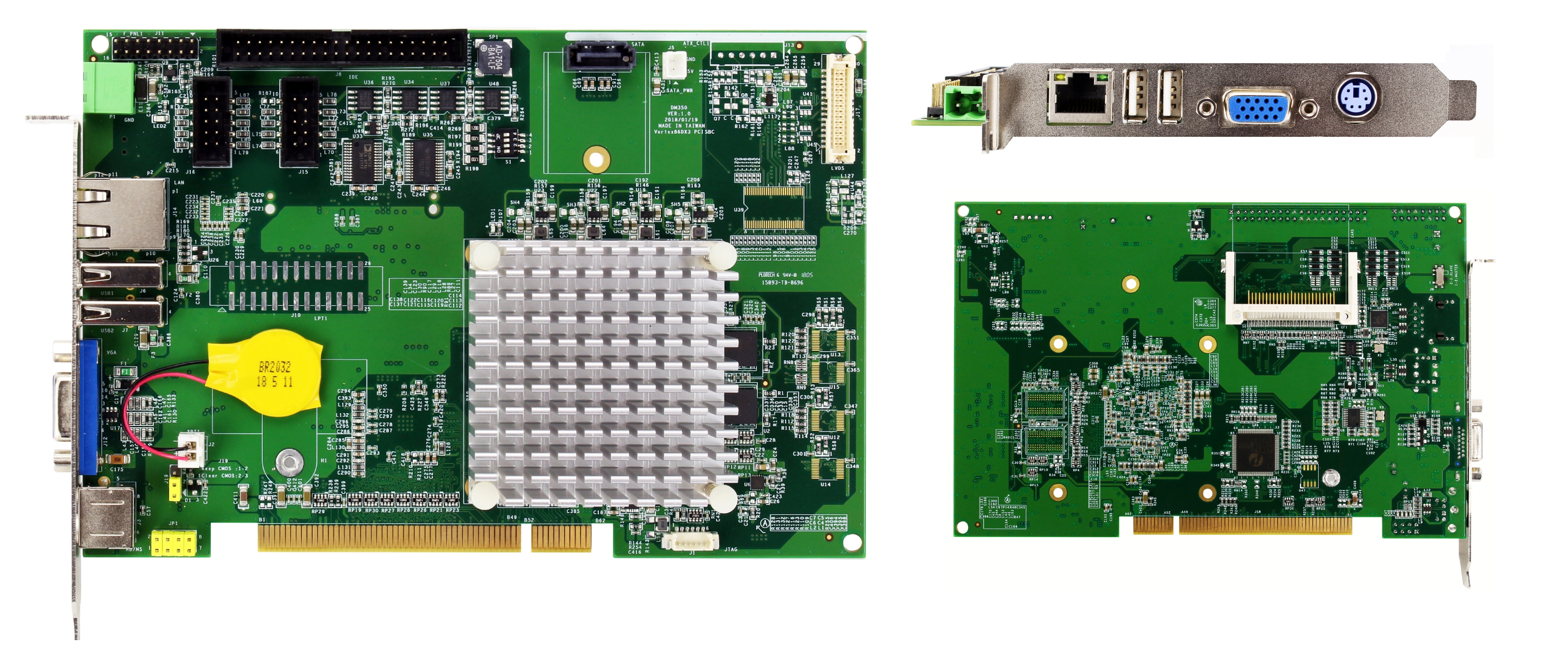

DM&P SoC Vortex86DX3 - 1GHz
VDX3-PCI

2S/2U/VGA/LVDS/GLAN/AUDIO/CF/IDE/SATA

  • Vortex86DX3 1GHz
  • 1GB
  • 2GB
  • RS-232
  • RS-485
  • USB
  • GLAN
  • Audio
  • VGA
  • LVDS

Specifications

  • DM&P SoC Vortex86DX3- 1GHz

  • 1GB / 2GB DDR3 onboard

  • 2S/2U/VGA/LVDS/GbE/AUDIO/CF/IDE/SATA

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

  • Single channel 24-bit LVDS

Manual

Datasheet

Technical Resource

CPU DM&P Vortex86DX3 1GHz
L1: 32K I-Cache, 32K D-Cache
L2 Cache: 512KB
RAM 1/2GB DDR3 Onboard
BIOS AMI BIOS
Bus PCI
Display Integrated 2D VGA chip with Dual Display Support (VGA + LVDS)
VGA: Maximum resolution up to 1920 x 1080 @60Hz
LVDS: Maximum resolution up to 1024 x 768 @60Hz
Single-channel 24-bit LVDS
LAN RTL8111F GbE x1
Disk Support SATA DoM IDE DoM Compact Flash
I/O Interface USB(ver. 2.0) x2 COM x2
Connectors 2.54mm 40-pin box header for IDE DoM x1
2.54mm 16-pin pin header for Front Panel x1
2.54mm 10-pin box header for COM x2
2-pin box header for DC Output x1
1.25mm 30-pin wafer for LCD Panel x1
7-pin SATA connector for SATA DoM x1
RJ45 Connector x1
USB Connector x1
PS/2 Connector x1
Power Terminal Block x1
D-Sub 15-pin female connector for VGA x1
Type I/II Compact Flash Slot x1
Power Requirement DC +5V @ 110mA
Operating Temperature -20°C to +70°C (Single Core)
-10°C to +60°C (Dual Core)
-40°C to +85°C (Optional for Single Core)
-20°C to +70°C (Optional for Dual Core)
Dimension 185 x 121mm
Weight 150g
O/S Support Windows 7
Windows Embedded Standard 7
Windows Embedded Compact7
Windows Embedded CE6.0
Windows XP Professional
Windows Embedded 2009
Linux
DOS
POS Ready (WePOS)
QNX
VxWorks
Free BSD
PART NO. VDX3-PCI-7S4E VDX3-PCI-7S5E VDX3-PCI-7D4E VDX3-PCI-7D5E
CPU 1GH
(Single Core)
1GHz
(Single Core)
1GHz
(Dual Core)
1GHz
(Dual Core)
DRAM (DDR3) 1GB 2GB 1GB 2GB
Storage SATA DoM
IDE DoM
Compact Flash
SATA DoM
IDE DoM
Compact Flash
SATA DoM
IDE DoM
Compact Flash
SATA DoM
IDE DoM
Compact Flash
Bus PCI Bus PCI Bus PCI Bus PCI Bus
Display VGA
LVDS
VGA
LVDS
VGA
LVDS
VGA
LVDS
GLAN 1 1 1 1
COM 2 2 2 2
USB 2 2 2 2

Extend Your Product Life Cycle with VDX3-PCI

A Half-Size PCI board designed for your legacy system support.

The same as the VDX3-6724 ISA board, VDX3-PCI is an industrial-grade half-size PCI SBC based on the DM&P Vortex86DX3 1GHz SoC, which is designed to keep your applications operating and relying on PCI communication with other I/O modules.



Featured with high I/O integrity, VDX3-PCI is equipped with 2GB DDR3 memory, supporting industrial I/O such as LVDS, Giga Ethernet, 2x COM, PCI, SATA DoM, etc. It operates in temperature environments ranging from -40° up to +85°C and can be powered up under sub-zero conditions. It is a perfect embedded solution for applications requiring PCI communication and for developers looking for PCI support to keep existing applications running.



VDX3-PCI mass production has been launched and is available now. For a quotation or other questions, please feel free to contact us.



Main Features:

  • Based on Low-power consumption x86-structure Vortex86DX3 1GHz SoC (Dual-core support)
  • 2GB DDR3 system memory onboard
  • VGA, LVDS, GbE, 2x USB, 2x COM, PCI, SATA DoM, IDE DoM, and Compact Flash
  • -40°C o +85°C support and sub-zero power up to support
  • Ordering part number: VDX3-PCI-7S4E, VDX3-PCI-7S5E, VDX3-PCI-7D4E, VDX3-PCI-7D4E
