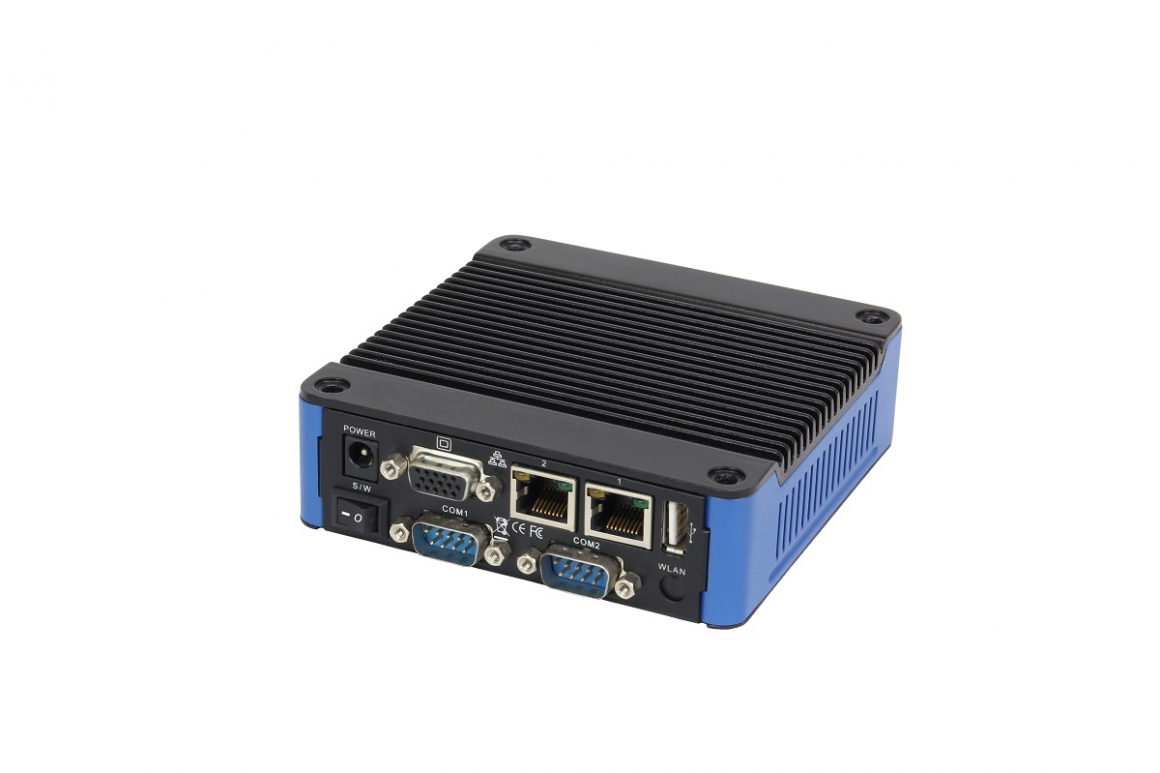

EB-3362-I Series, the thin size Mini Box PC conforms to the VESA standards, can be quickly applied to existing solutions

December 28, 2021

EB-3362-I Series is a revolutionary device especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, EB-3362-I can be easily integrated with a VESA monitor to access at any time. EB-3362-I can be attached to any VESA mounting fixture, allowing it to be securely mounted onto desks, walls, or buildings, and thereby optimizing your work area. It can also be attached directly to any size LCD for trade shows, presentations, promotions, etc. With FANLESS design, it is ideal to be used in an environment where temperature demand is critical.

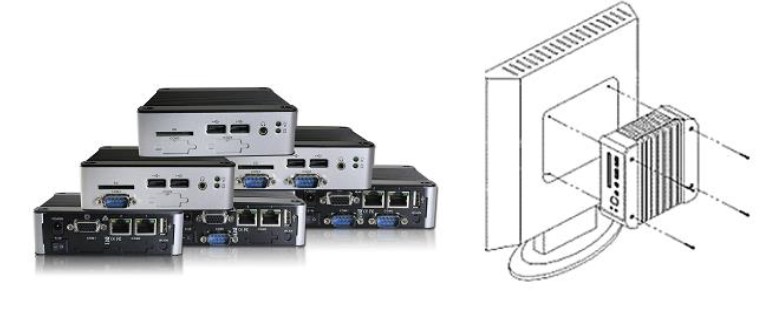

The VESA® FDMI™ Standard defines mounting interfaces, hole patterns, and associated cable/power supply locations for LCD monitors, plasma displays, and other flat panel devices. EB-3362-I Series is designed to fit VESA standards to make monitor attachment quickly and easily.

* Related reading: VESA mount

EB-3362-I can easy configured as a data/webs server, industrial automation, process control, automotive controller, AVL, medical device, and machine control, etc

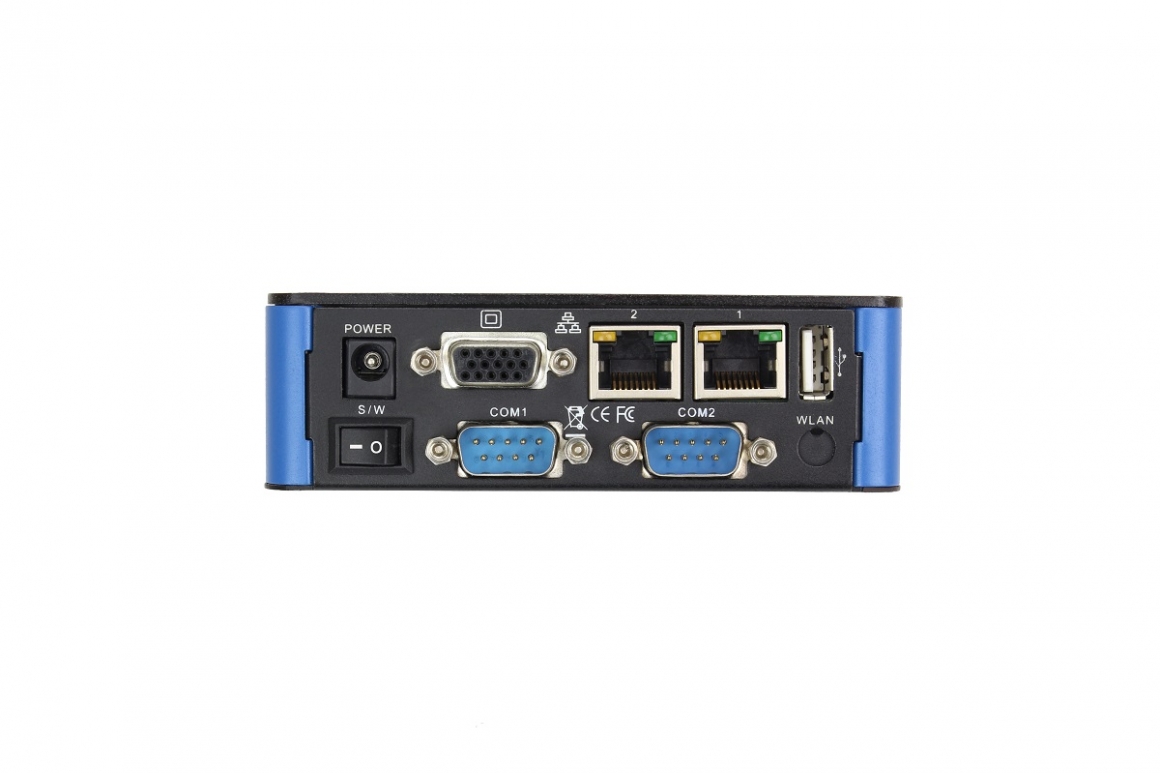

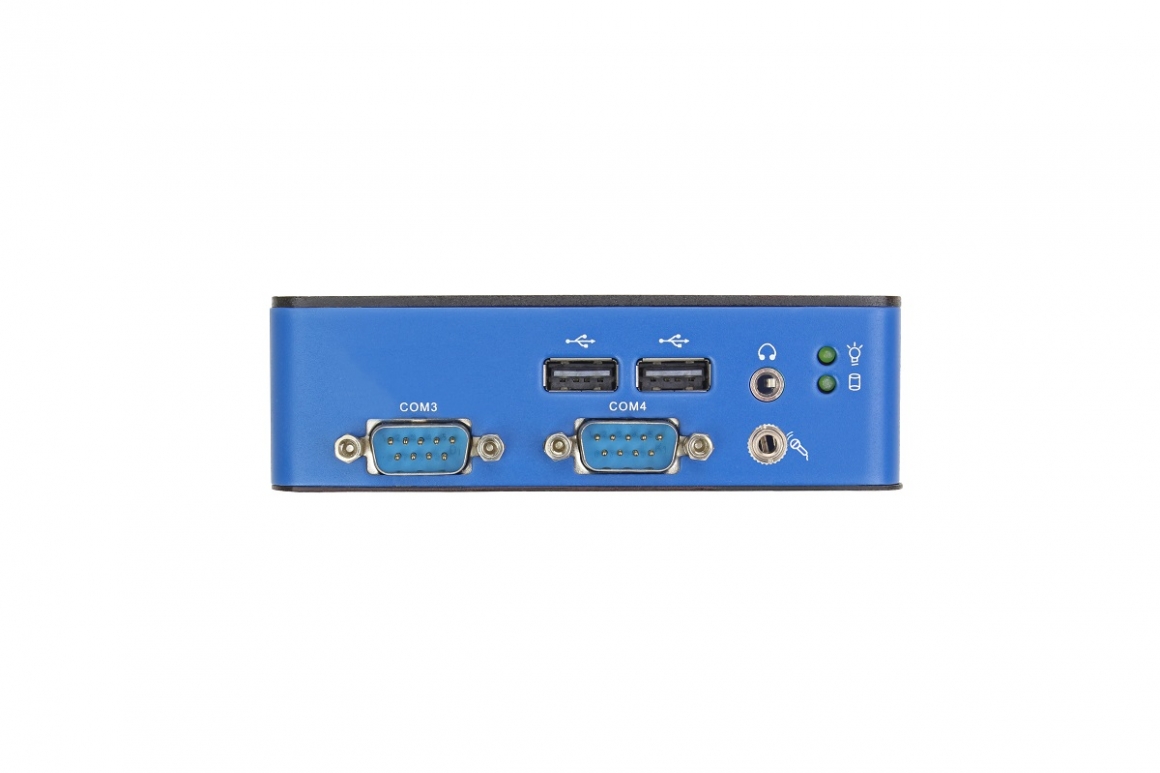

EB-3362-I series, based on Vprtex86DX3 SoC with 2GB DDR3 RAM onboard memory, is designed to provide stable computing performance with low-power consumption benefit. EB-3362-I series equipped with VGA, LAN, GLAN, 4USBs, 4COMs, SATA, SD card slot, GPIO, and wireless antenna (optional) configured to meet a large variety of applications. EB-3362-I can operate in temperature from -20°C to 70°C and support +8 to +24VDC and can be configured as data server, webs server, industrial automation, process control, automotive controller, AVL, medical device, and machine control, etc.

* Related reading: Installing and Setting Up an Nginx Server on the EB-336x with Linux Debian 9

The DM&P SoC: Vortex86DX3

The Vortex86DX3 is a 32-bit x86-architecture dual-core microprocessor with Windows-based, Linux, and most popular 32-bit RTOS compatibility. It also integrates 32KB write through 8-way L1 cache, 512KB write-through / write back 4-way L2 cache, PCIe bus at 2.5 GHz, DDR3, ROM controller, ISA, I2C, SPI, IPC (Internal Peripheral Controllers with DMA and interrupt timer/counter included), Fast Ethernet, FIFO UART, USB2.0 Host, and IDE/SATA controller within a single 720-pin BGA package to form a system-on-a-chip (SOC).

It provides an ideal solution for the embedded system and communications products (such as thin client, NAT router, home gateway, access point, and tablet PC) to bring about desired performance.

Main features of EB-3362-I:

  • DM&P SoC Vortex86DX3- 1GHz
  • 2GB DDR3 onboard
  • 3S / 3U / VGA / GLAN / LAN / Audio / 8 GPIO / SATA / 8~24V
  • Operation Temperature: -20 ~ +70°C
  • Auto Power On
  • VESA Mount
  • Fanless
  • PXE diskless boot
  • Long life time supply
  • Low power consumption
  • Optional: Din Rail

For more info and sample request, please write to, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
