Specifications
DM&P SoC Vortex86DX3- 1GHz
2GB DDR3 onboard
2S/3U/VGA/GLAN/LAN/Line-out/SIM/mPCIe/16GPIO/SATA/SD/8~24V
Operation Temperature: -20 ~ +70°C
Auto Power On
VESA Mount
Optional: Din Rail
| Part Number | EB-3362-L2851C3P-I | EB-3362-C2G2SIM-I | EB-3362-L2C2851G1E-I | |||
| Processor | DM&P SoC CPU Vortex86DX3 -1GHz | |||||
| RAM | 2GB DDR3 Onboard | |||||
| BIOS | AMI BIOS | |||||
| Display | VGA: Maximum resolution up to 1920x1080 @ 60Hz | |||||
| LAN | 10/100Mbps LAN x1 10/100/1000Mbps LAN x1 |
10/100Mbps LAN x1 | 10/100Mbps LAN x1 10/100/1000Mbps LAN x1 |
|||
| USB | External x3 Internal x1 (for wireless dongle) |
External x3 | External x3 Internal x1 (for wireless dongle) |
|||
| SD Slot | 1 | 1 | --- | |||
| Mini PCIe | 1 | 1 | --- | |||
| SIM Card Slot | --- | 1 | --- | |||
| SATA | --- | 1 | 1 | |||
| RS232 | 3 | 2 | 2 | |||
| RS485 | 1 | --- | 1 | |||
| GPIO | -- | 8-bit GPIO x2 | 8-bit GPIO x1 | |||
| Dimension | 115 x 115 x 35mm | |||||
| Power Requirement | +8 to +24VDC | |||||
| Weight | 510g | |||||
| Operating Temperature |
-20°C to +70°C | |||||
| Auto Power On | Support | |||||
| VESA Mounting | 75 x75mm 100 x100mm |
|||||
| O/S Support |
Windows7 |
|||||
Box System:
| Part Number | Description |
| EB-3362-L2851C3P-I | Vorxtex86DX3 with 2GB RAM/LAN/GLAN/4USB/SD/MINIPCIE/4COM |
| EB-3362-C2G2SIM-I | Vorxtex86DX3 with 2GB RAM/LAN/3USB/SD/MINIPCIE/SIM/SATA/2COM/16GPIO |
| EB-3362-L2C2851G1E-I | Vorxtex86DX3 with 2GB RAM/LAN/GLAN/4USB/SATA/3COM/8GPIO |
Wireless Dongle:
| Part Number | Description |
| USB-WLAN-IPEX-KIT | Internal Wireless USB Adapter |
| WIRELESS-ANTENNA-157MM | 2dBi Dipole Antenna for Wireless USB Adapter, 157mm |
| WIRELESS-CABLE-150MM | 150mm Cable for Antenna |
EB-3362-I series, based on Vortex86DX3 SoC with 2GB DDR3 RAM onboard memory, is designed to provide stable computing performance with low-power consumption benefit.
EB-3362-I series equipped with VGA, LAN, GLAN, 4USBs, 4COMs, SATA, SD card slot, GPIO, and wireless antenna (optional) configured to meet a large variety of applications.
EB-3362-I can operate in temperature from -20°C to 70°C and support +8 to +24VDC and can be configured as industrial automation, process control, automotive controller, AVL, medical device, and machine control, etc.

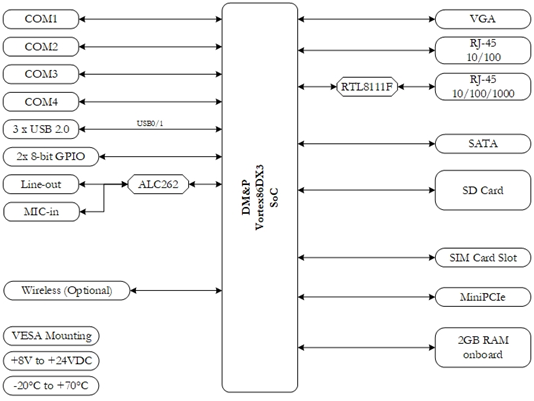

Block Diagram:
