IBW-35-E4, 3.5” Fanless SBC with onboard 4GB DRAM, 2 GLAN, Dual Display, 2 mPCIe, 4 COM, 6 USB and SIM slot

January 22, 2021

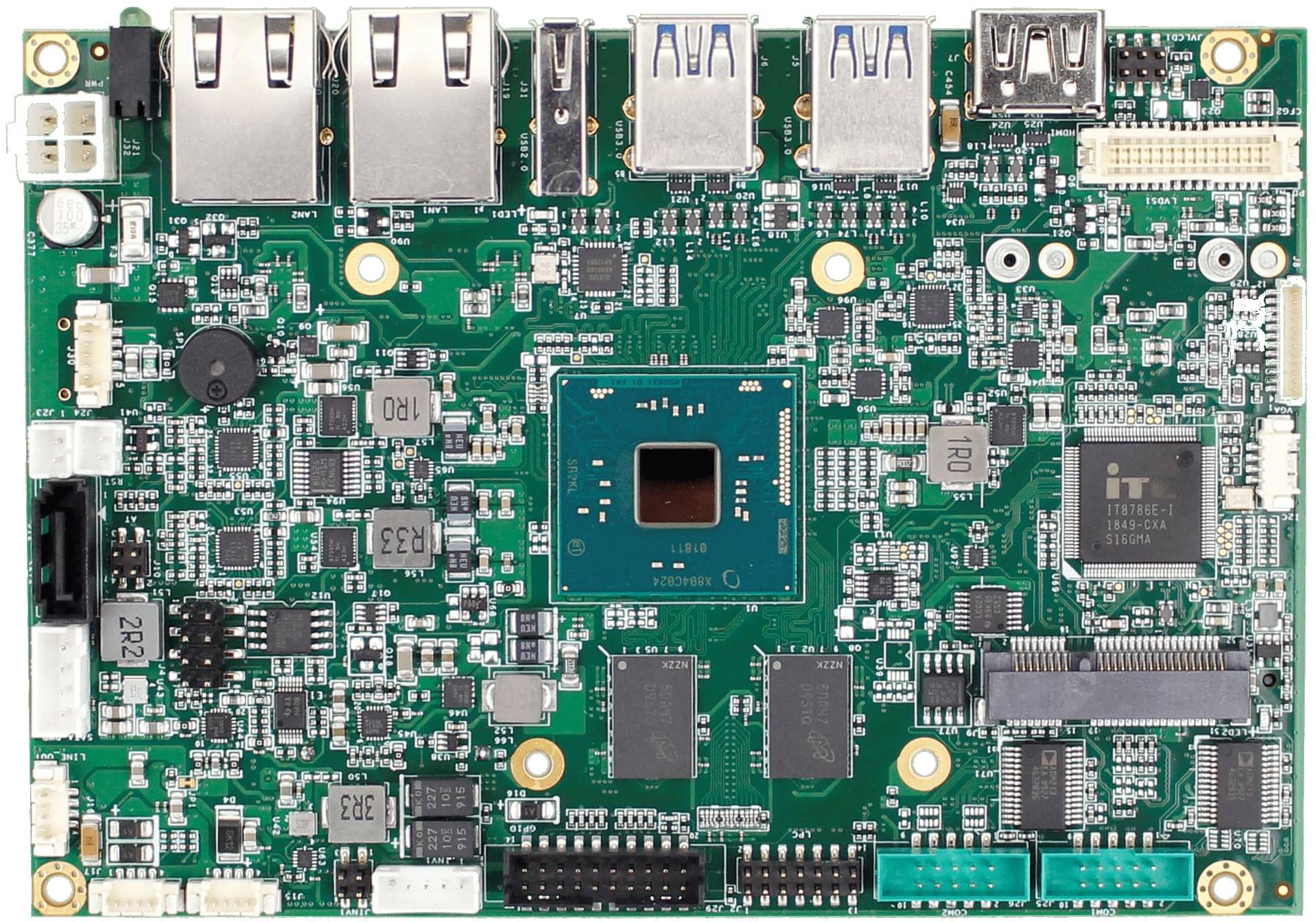

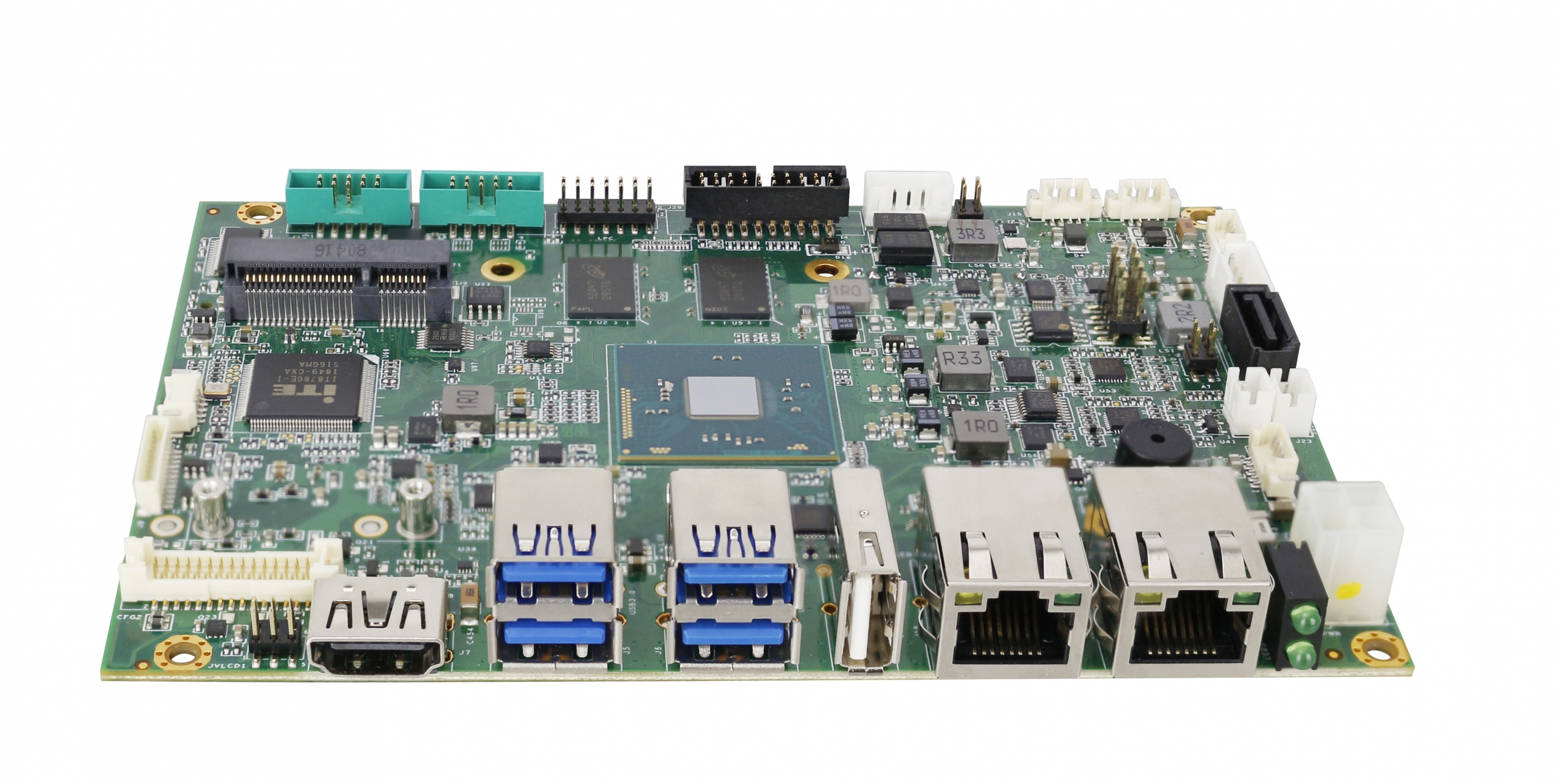

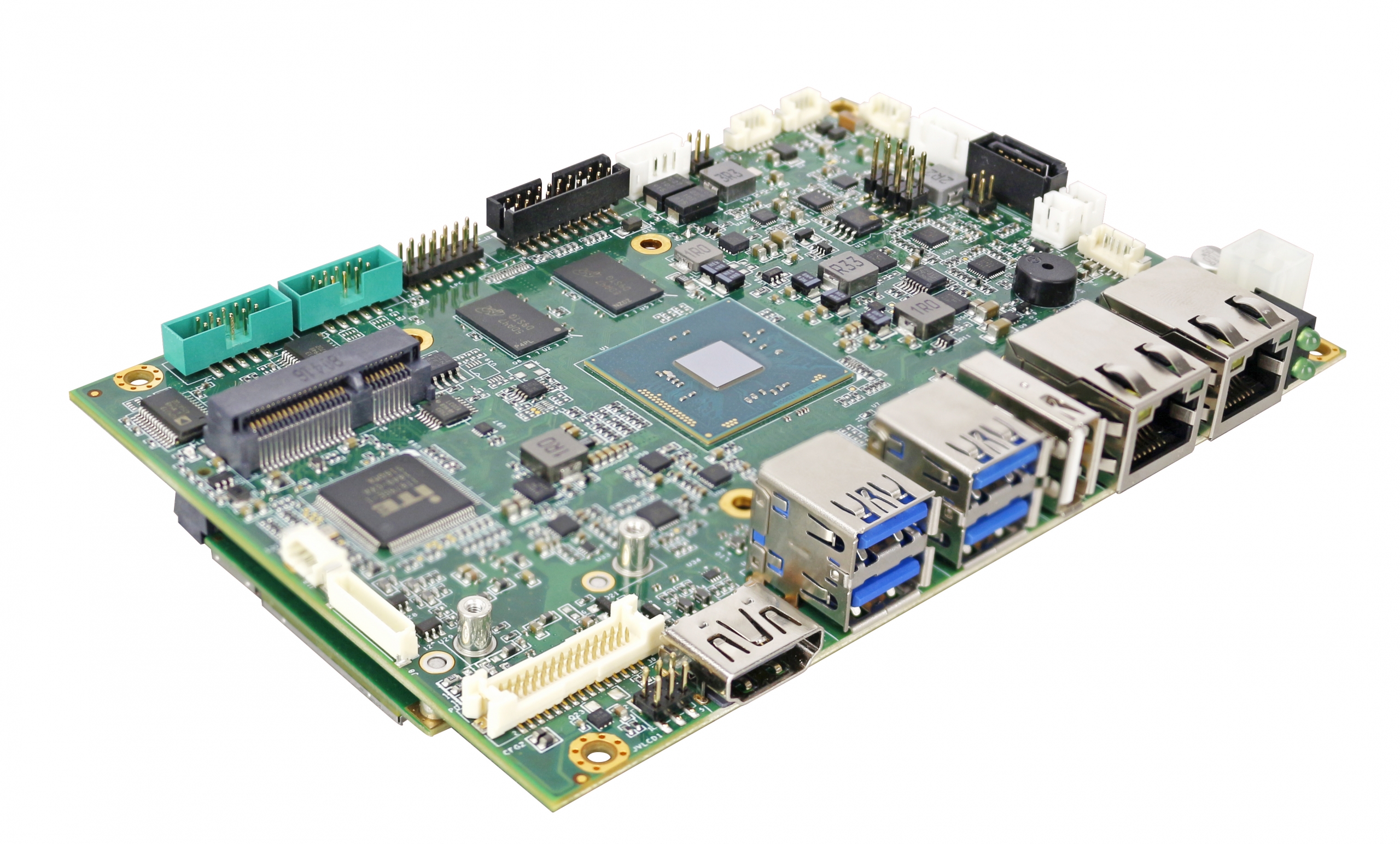

IBW-35-E4 is a 3.5” SBC powered by the Intel® Braswell quad-core CPU and 4GB DDR3L RAM onboard, which provides stable and robust computer performance. It comes with multiple I/O features and is designed for fanless operation. This makes the IBW-35-E4 an ideal solution for applications in the industrial field, transportation and public infrastructure.


 Different Operating Systems for Multiple Industrial IoT

The IBW-35-E4 is the perfect choice for multipleIIoT solutions since it supports various amount of different operating systems and as it comes with a Micro-SIM card slot. Bluetooth, WLAN and further I/O functions are supported through MiniPCIe. The SIM card slot serves for wireless long-distance communication while it simultaneously supports 2 x GLAN.


 Enhanced Service with More Efficient Resource Assignment

As a versatile and multi-functional 3.5” SBC equipped with rich I/O features, the IBW-35-E4 can be integrated into various applications that require embedded solutions. I/O features include2 x GbE, 4 x COM, 6 x COM, 6 x USB, I2C, 16-bit GPIO, MiniPCIe, HDMI, LVDS, VGA. For storage, one can select using SATA, mSATA or Micro SD. The SIM card slot serves for wireless long-distance communication.


Main Features:

  • Processor:
    • Intel® Atom® x5-E8000 / Intel® Pentium® N3710 / Intel® Celeron® N3160
  • Memory: 4GB DRAM onboard
  • Storage: SATA, Micro SD, mSATA(Optional)
  • Expansion: mPCIe1/mSATA & mPCIe2 with Micro SIM slot
  • Display output: HDMI, VGA, LVDS
  • I/O: COMx4 (2x RS232/422/485) , I²C x1 , GPIO , USB x6
  • LAN: RTL8111H GbE x2
  • HD Audio: Realtek ALC262 VD

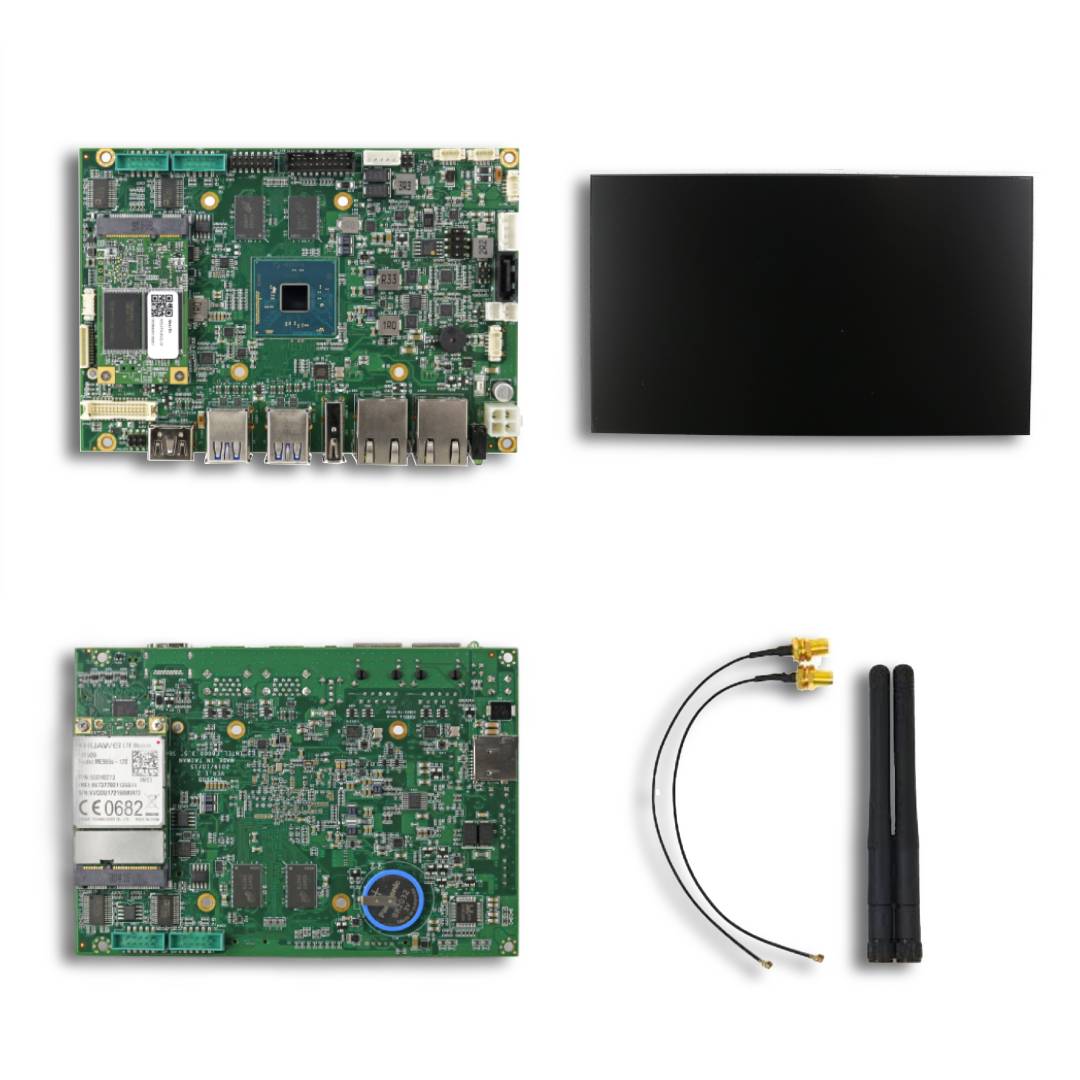

ICOP also provides an integrated 9” LCD with IBW-35-E4 ready for test or other usage purposes.



Detail product information: IBW-35-E4.


For more info and sample request, please write to, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
