EBOX-IMX8MM, a Palm-size Industrial grade Box PC powered by NXP i.MX8M Mini. DIN Rail/VESA mount ready

November 03, 2020





EBOX-IMX8MM-1

The EBOX-IMX8MM is a solid light-weight aluminum box PC-driven by NXP i.MX8M Mini Quad-Core 1.6GHz Cortex-A53 processor. Weigh 700g with dimensions 115 x 115 x 35mm. DIN Rail & VESA Mounting capability makes it easy to be deployed in any location. Wide temperature -40°C to 80 °C support makes it good in harsh environment usage. A perfect platform for IoT, M2M, Home Automation, Network security, Point-of-Sales, Digital signage, and many other industrial applications.



Dimensions:
Size: 115 x 115 x 35mm (4.528 x 4.528 x 1.378 inches)

EBOX-IMX8MM-D



Features:

  • NXP i.MX8M Mini Quad-Core 1.6 GHz Cortex-A53
  • 3D GPU / 1080p60 / H.264 Encode & Decode
  • Up to 4GB RAM & 64GB eMMC
  • HDMI/USB/Giga LAN/WiFi & BT/Audio/RS232/485 (I2C and GPIO by Request)
  • Operating Temperature: 0°C to +60°C/-40°C to +80°C (Optional)
  • Power Requirement: DC +12V to +36V input
  • Yocto Linux and Android 9 Ready



Mounting

VESA 100 x 100mm:

EBOX-IMX8MM-D

VESA Mounting Actual Image:

EBOX-IMX8MM-D

EI8M-M

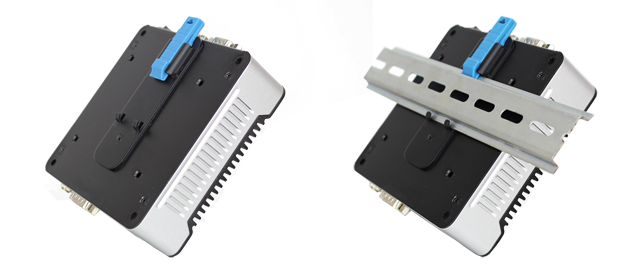

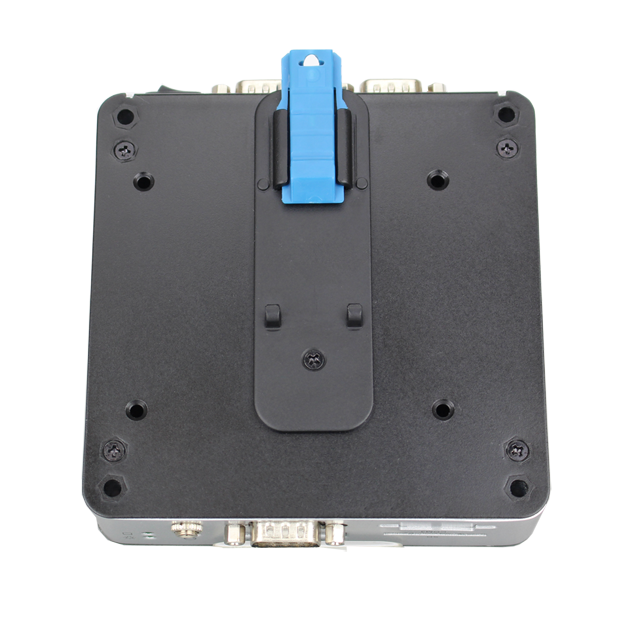

DIN Rail (Optional) Actual Image:



EBOX-IMX8MM-D

EBOX-IMX8MM-DIN Rail2

Related Document:





Product's Page: https://www.icop.com.tw/product/EBOX-IMX8MM.
