Providing Balance with the NX8MM-D168

October 30, 2020
NX8MM-D168

It may difficult to find a balance when searching for the perfect platform to begin a new project. Trying to balance price, power, and optimal performance while ensuring the end-product accurately represents a company poses a challenge for many out there. To help make this decision easier, we are proud to announce the NX8MM-D168.

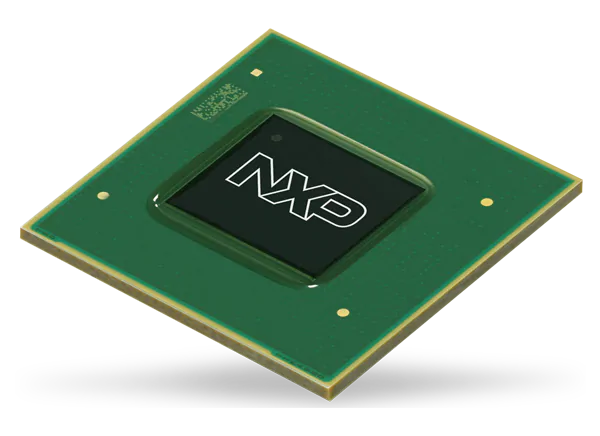

NXP CPU

The NX8MM-D168 is equipped with the NXP I.MX8M Mini Quad Core Cortex-A53 1.6 GHz ARM CPU with 3D GPU and includes advanced 14LPC FinFET process technology, which provides more speed and improved power efficiency. At slightly less than half the size of a credit card at 35 x 55mm and utilizing a solid 168 pin board-to-board connector with soldered-on LPDDR4 and eMMC, the NX8MM-D168 can be utilized and implemented into many space-limited applications. Despite its tiny size, it incorporates and supports a wide range of Feature-Rich I/O, such as GbE, USB, UART, SPI, I2C, PWM, MIPI-DSI, among other configurations.



Dimensions:

Features:

  • NXP i.MX8M Mini, Quad-core 1.6GHz ARM Cortex-A53
  • Onboard LPDDR4 1GB/2GB/4GB
  • 3D GPU / 1080p60 VPU
  • GbE / USB / UART / SPI / I²C / PWM / GPIO / MiniPCIe / Audio
  • Support MIPI-DSI / MIPI-CSI
  • 168 pins Configurable I/O Funciton
  • eMMC 4GB~64GB onboard / Micro SD Scoket (Optional)
  • Operation Temperature: -20°C ~ +70°C / -40°C ~ +85°C (Optional)
  • Compact Size Module: 55mm x 35mm
  • OS Support: Yocto Linux, Android 9 Ready



For more product information, please check here.




For ease of testing and installation, the NX8MM-D168 is now being offered in ICOP’s Box PC and Panel PC product line with ready-to-use Yocto Linux and Android Images available as well as a 6-week carrier board option.

PN8M-090T-5A

PN8M-090T-5A

  • NXP i.MX8M Mini-1.6GHz

  • 9" Resistive touch

  • S/2U/GLAN/Audio
    /eMMC/MiniPCIe

  • VIN: +5VDC

PN8M-090T-8A

PN8M-090T-8A

  • NXP i.MX8M Mini-1.6GHz

  • 9" Resistive touch

  • S/2U/GLAN/Audio
    /eMMC/MiniPCIe

  • VIN: +8~35VDC

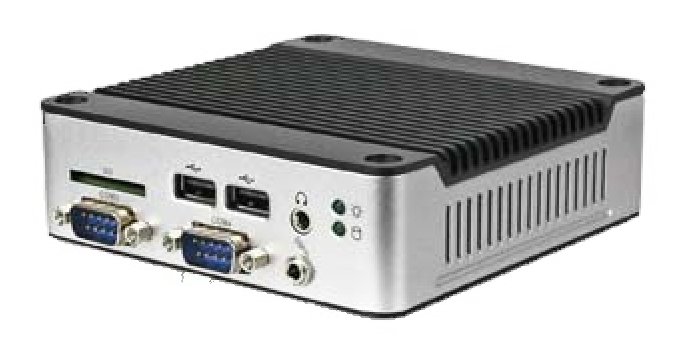

EBOX-IMX8MM

EBOX-IMX8MM

  • NXP i.MX8M Mini-1.6GHz

  • 4S/3U/HDMI/2LAN
    /AUDIO/BT&WLAN

  • VESA 100mm x 100mm

  • Android 9 & Yocto Ready





For more info, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
