PBSW-090T, A 9” Aluminum Die-Cast, Fanless, Touch Panel Computer with an IP65 certified Front Panel, Shock and Vibration Certification, +12V~36VDC Supported Power Input and Panel/VESA Mounting Compatibility.

September 16, 2020

The Intel® Braswell Processor is the most recent Embedded processor to support both Legacy and UEFI OS. ICOP’s new 9” PBSW-090T adopts the Intel® Braswell x5-E8000 (Option for N3160 or N3710) processor with the high-performance operation, low power consumption, advanced system security, and great reliability.

Designed to be an easy upgrade for existing customers, this unit uses the same rugged aluminum cast body design that is 100% fully compatible with the:  9” PMX, PDX2, and PDX3.  This fanless unit also comes with a front panel with IP65 waterproof protection.

In order to support a variety of applications worldwide, the PBWS-090T supports: a wide power input range (+12V~36VDC), 30G Mechanical Shock Certification, 20m/s2 Vibration Certification, can be panel mounted or VESA mounted, and can come with Win10 IoT Pre-installed.


Main Features:

  • Intel® Braswell x5-E8000/N3160/N3710 Processor (Quad Core)

  • 4GB DDR3L onboard

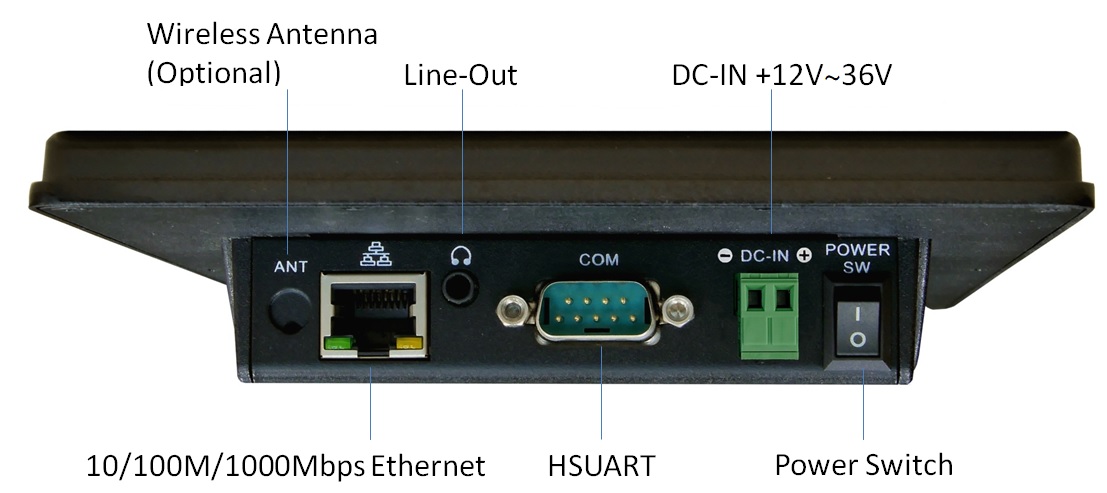

  • S/2U/GLAN/Audio/M.2-2242/MiniPCIe/12~36V

  • 9" TFT 1024x600 Resolution LCD with resistive touchscreen

  • Operation Temperature: 0 ~ +50°C / -20 ~ +60°C (Optional)

  • M.2 Slot Support (M-key, SATA interface, 2242)

  • MiniPCIe socket with Micro SIM Card Holder

  • Wide power voltage input, +12~36VDC


Detail product information:


For more information and to request a sample, please write to, call your nearest ICOP Branch, or contact one of our Worldwide Official Distributor.
