9" Resistive/Capacitive touch
DM&P SoC Vortex86DX3- 1GHz

PPC-090T-D3

2S/3U/GLAN/LAN/Audio/SATA/CF/12~24V

  • 9"
  • Resistive
  • Capacitive
  • x86/Vortex86DX3 1GHz
  • 1GB
  • 2GB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • GLAN
  • LAN
  • Audio
  • SATA
  • CF
  • 12~24V

Specifications

  • DM&P SoC Vortex86DX3- 1GHz

  • 1GB / 2GB DDR3 onboard

  • 2S/3U/GLAN/LAN/Audio/SATA/CF/12~24V

  • 9" TFT 1024x600 Resolution LCD with Resistive or Projected Capacitive touch screen

  • Operation Temperature: 0 ~ +50°C / -20 ~ +60°C (Optional)

  • CF & SATA sockets onboard

  • CE/FCC/VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration

  • Wide power voltage input, DC +12~24Vdc

  • Optional: 512MB~4GB Flash onboard / GLAN / WLAN / Expansion I/O functions for additional PoE, 5S or 3S with 16bit-GPIO

Manual

Datasheet

Technical Resource

CPU Board Specifications
CPU DM&P Vortex86DX3-1GHz
Cache DX3: L1:32KB I-Cache, 32KB D-Cache
L2: 512KB Cache
BIOS AMI BIOS
Memory 512MB/1GB/2GB DDR2(DDR3) onboard
Watchdog Timer Software Programmable from
30.5u to 512 seconds x 2 sets
LAN Integrated 10/100M Ethernet X1
Giga Ethernet (Optional) X1
PoE (Optional) Optional upon 10/100Mbps Ethernet x 1 Support IEEE 802.3AT
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives Compact Flash Type I / II Slot
SATA SLIM, SD Slot (Optional)
I/O RS-232/422/485 x 2
USB Ports (Ver2.0) x 3
PS/2 KB
Audio-Out
RJ-45 Port x 1
GIGA Ethernet Port X 1 (Optional)
Mechanical & Environment
Power Requirement +12 ~ 24VDC
Power Consumption +24VDC@ 1A
Operating Temperature 0~+50°C (+32~+122°F) /
-20~+60°C (-4~+140°F)
Storage Temperature -30~+70°C (-22~ +158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing

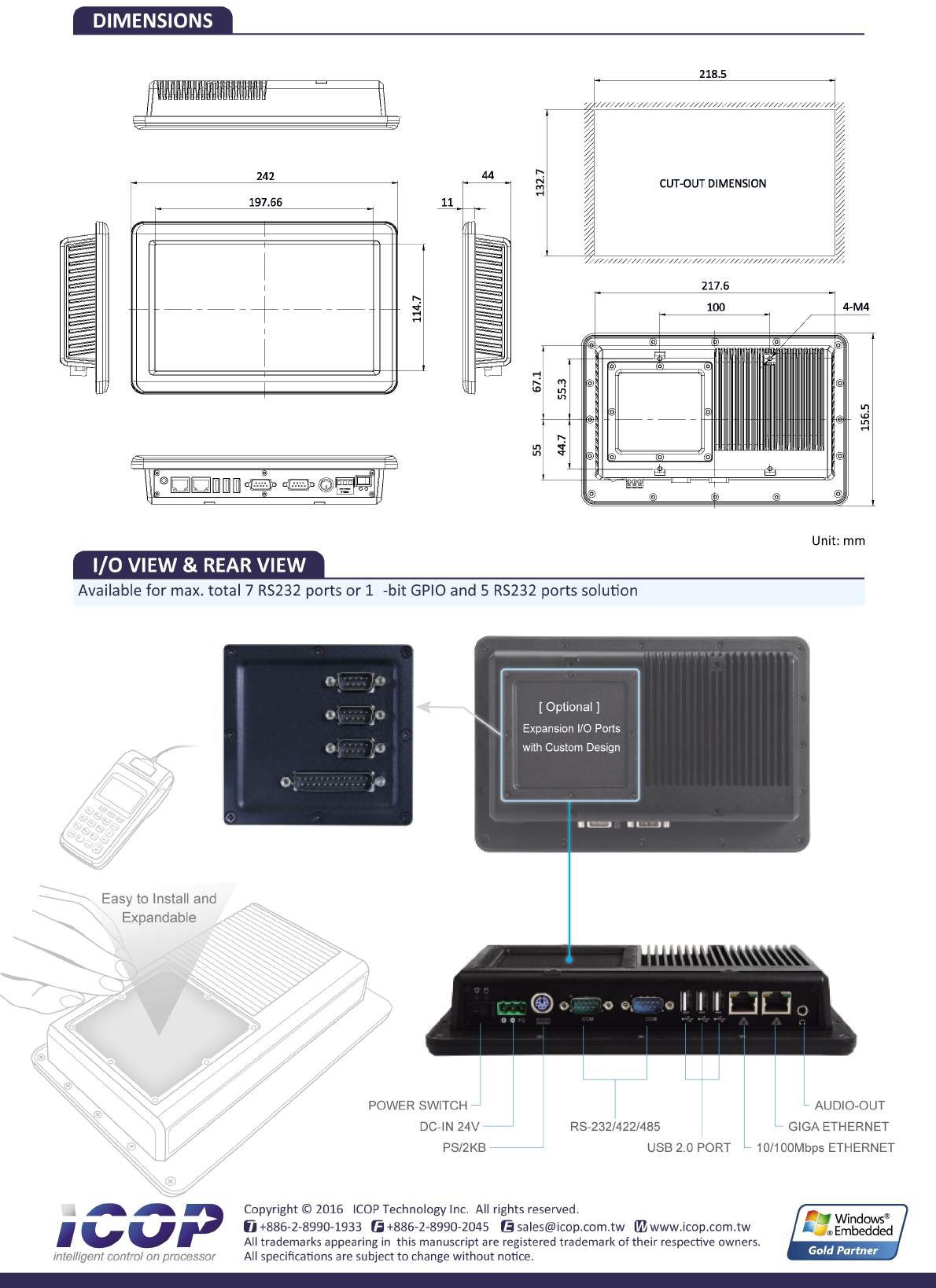

Dimensions 242x156.5x44mm (9.68"x6.26"x1.76")
Weight 1.36 Kg
Protection IP65 Front Panel
Certification CE
FCC
VCCI
Vibration
Shock
LCD Specifications
Display Type 9” WSVGA TFT LCD
Backlight Unit LED
Display Resolution 1024(W) x 600(H)
Brightness (cd/m²) 300 nits
Contrast Ratio 500: 1
Display Color 262,144
Pixel Pitch (mm) 190.5 (H) x 189 (V)
Viewing Angle Vertical 120°, Horizontal 140°
Backlight Lifetime 20,000 hrs
Touchscreen (Type 1)
Type 1 Analog Resistive
Resolution Continuous
Transmittance 80%
Controller PS/2 interface
Software Driver Linux
WinCE
WinXP
Win7
Windows Embedded Standard
Durability 1 million
Touchscreen (Type 2)
Type 2 Projected Capacitive Touch Screen (Optional)
Resolution 25ppi (Min.)
Transmittance 86% ± 2%
Accuracy Within 2.5mm each target
Surface Hardness ≧ 7H (Pressure:0.5N/45°)
Product Code LCD Size CPU Type CPU Clock RAM Flash onboard I/O
PPC








090T
104T
150T
150P





D2 (DX2)
D3 (DX3)
PD2 (DX2 + 9” PCAP)
PD3 (DX3 + 9” PCAP)





W(800MH)
N(933MHz)
G (1GHz)
D (1GHz with wide temp.)





3(512B)
4 (1GB)
5 (2GB)






N (No Flash)
A (256MB)
B (512MB)
C (1GB)
D (2GB)
E (4GB)



GE (GigaLAN)
G7C (GigaLAN + 7 COMs)
G7CP (GigaLAN + 7 COMs + PoE)
G5CG (GigaLAN + 5 COMs + 16bit GPIO)
G5CGP (GigaLAN + 5 COMs + 16bit GPIO + PoE)
7C (7 COMs)
7CP (7 COMs + PoE)
5CG (5 COMs + 16bit GPIO)
5CGP (5 COMs + 16bit GPIO + PoE)



PART Number DESCRIPTION
PPC-090T-D3G4N 9” Panel PC w/DX3/1GB Memory
3USB/AUDIO/LAN/2COM/DC12~24V
PPC-090T-D3G4N-GE 9” Panel PC w/DX3/1GB Memory
3USB/AUDIO/LAN/GIGA LAN/2COM/DC12~24V
PPC-090T-D3G5N 9” Panel PC w/DX3/2GB Memory
3USB/AUDIO/LAN/2COM/DC12~24V
☛PPC-090T-D3G5N-GE 9” Panel PC w/DX3/2GB Memory
3USB/AUDIO/LAN/GIGA LAN/2COM/DC12~24V
PPC-090T-PD3G4N 9” Panel PC w/DX3/1GB Memory
3USB/AUDIO/LAN/2COM/PCAP/DC12~24V
PPC-090T-PD3G4N-GE 9” Panel PC w/DX3/1GB Memory
3USB/AUDIO/LAN/GIGA LAN/2COM/PCAP/DC12~24V
PPC-090T-PD3G5N 9” Panel PC w/DX3/2GB Memory
3USB/AUDIO/LAN/2COM/PCAP/DC12~24V
PPC-090T-PD3G5N-GE 9” Panel PC w/DX3/2GB Memory
3USB/AUDIO/LAN/GIGA LAN/2COM/PCAP/DC12~24V
PPC-090T-D3G5N-G7C 9” Panel PC w/DX3/2GB Memory
3USB/AUDIO/LAN/GIGA LAN/7COM/DC12~24V
☛PPC-090T-D3G5N-7CP 9” Panel PC w/DX3/2GB Memory
3USB/AUDIO/LAN/PoE/7COM/DC12~24V
WLAN KIT (Optional) USB-WLAN-IPEX-KIT
WIRELESS-ANTENNA-157MM
WIRELESS-CABLE-150MM
★ Please contact your region sales for more ordering part numbers.

ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-090T is powered by DMP’s Vortex86DX2 and DX3 SoCs, the 3rd generation SoCs of the Vortex86 family, and a dual-channel 1GB / 2GB DDRII (DDDRIII) chipset that handles processing more efficiently and provides faster performance. The resistive touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design are perfect for the present demanding embedded and productive applications.
The new PPC-090T inherited PDX/PMX-series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. The versatile I/O ports, IP65 front panel, 10/100Mps Ethernet, GIGA high-speed Ethernet, WLAN, etc. can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption, and fanless design. The expandable customize I/O ports can be accommodated connectivity requirements to industrial machine platforms and industrial automation equipment’s needs.
The PPC-090T supports Windows Embedded CE 6.0, Windows Embedded Compact 7,  Windows Embedded Standard 2009, Windows Embedded Standard 7, and Linux to meet ready-to-market demand and provide competitive advantages for customers.
