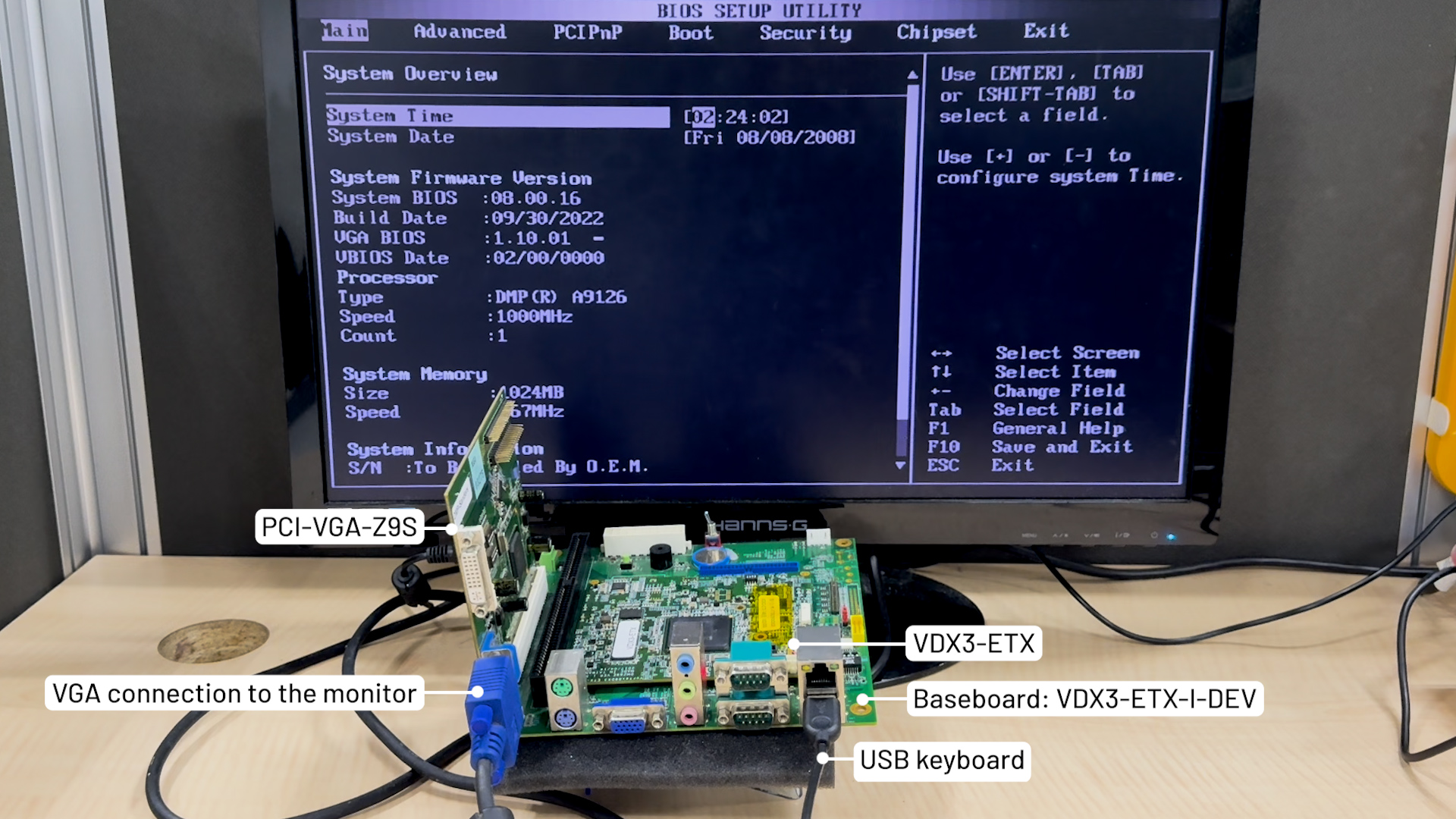

Using VDX3-ETX module as daughter board could easily run the PCI graphic card for primary display if the demand is required.

Preparation:

1. Power up the VDX3-ETX computer board.

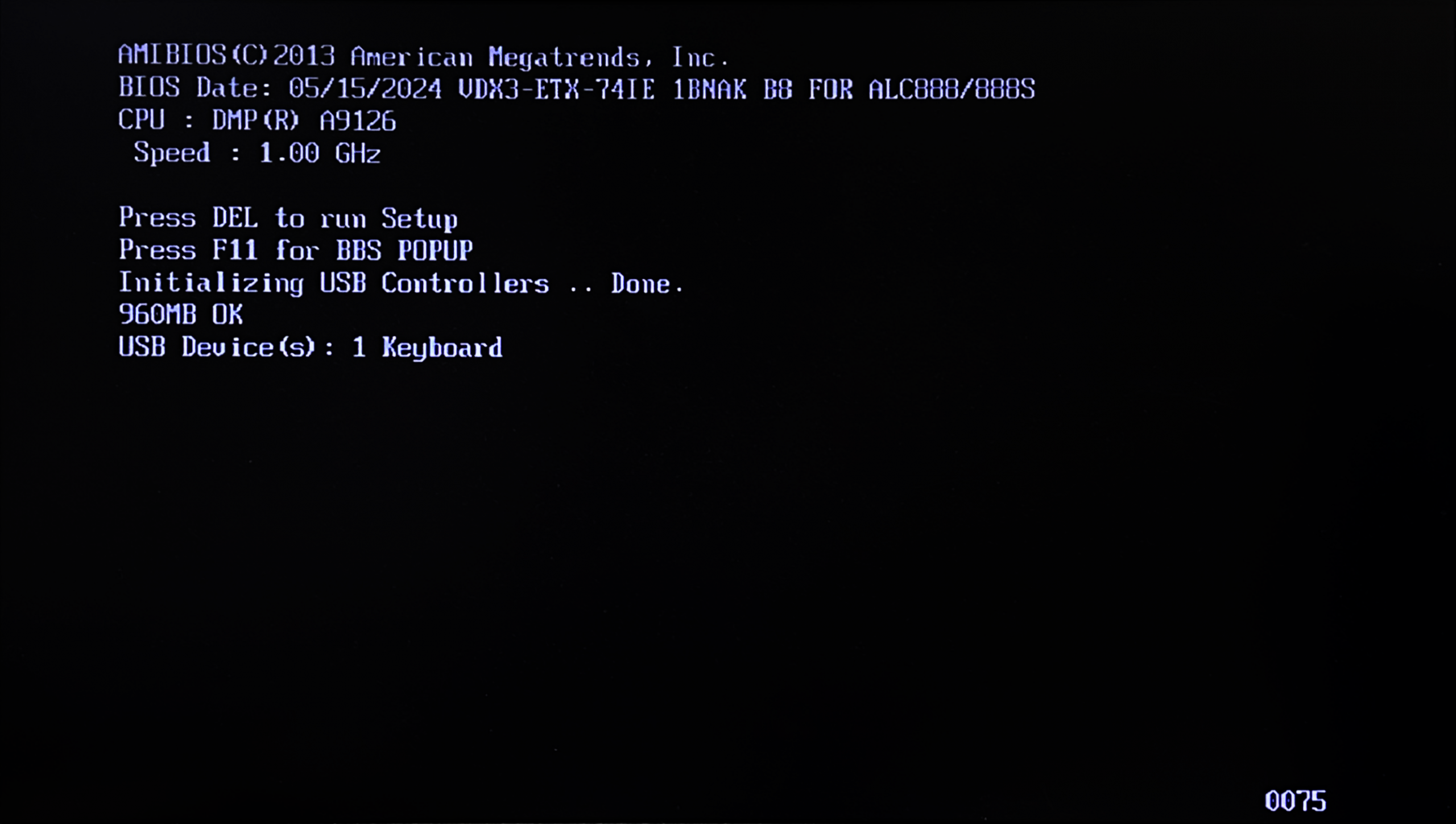

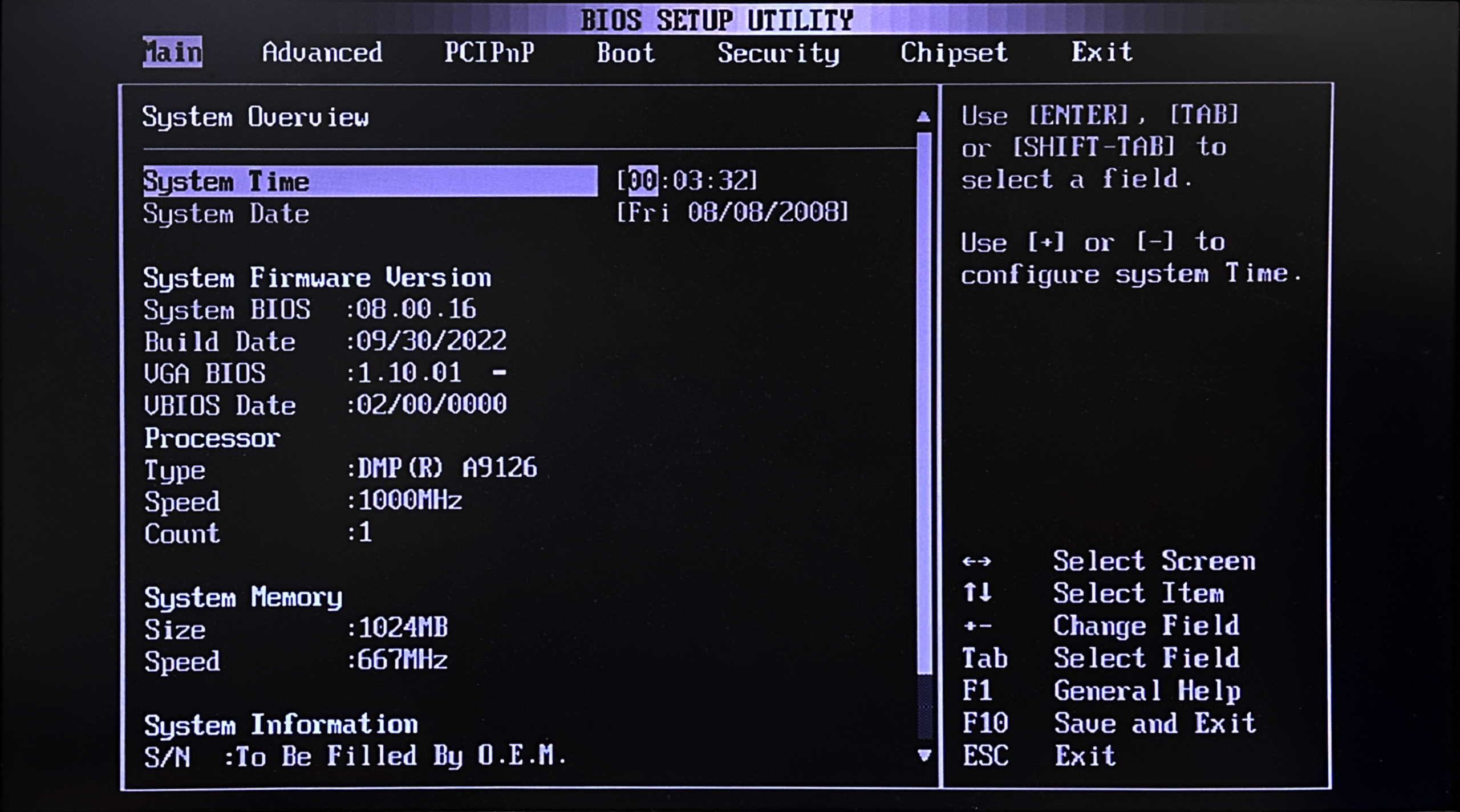

2. Continually press the delete bottom to enter the BIOS set up utility page.

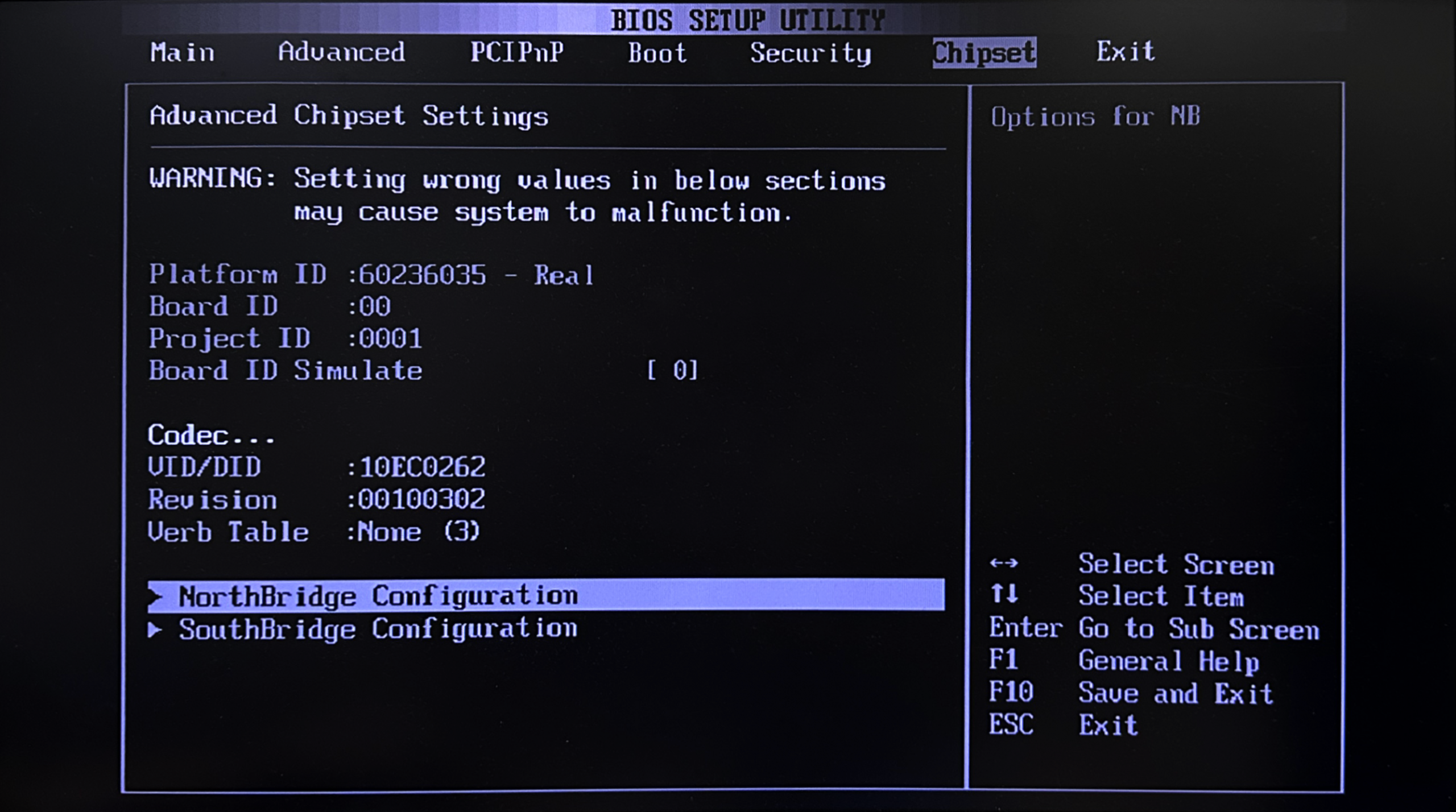

3. Enter Chipset page and access NorthBridge Configuration.:

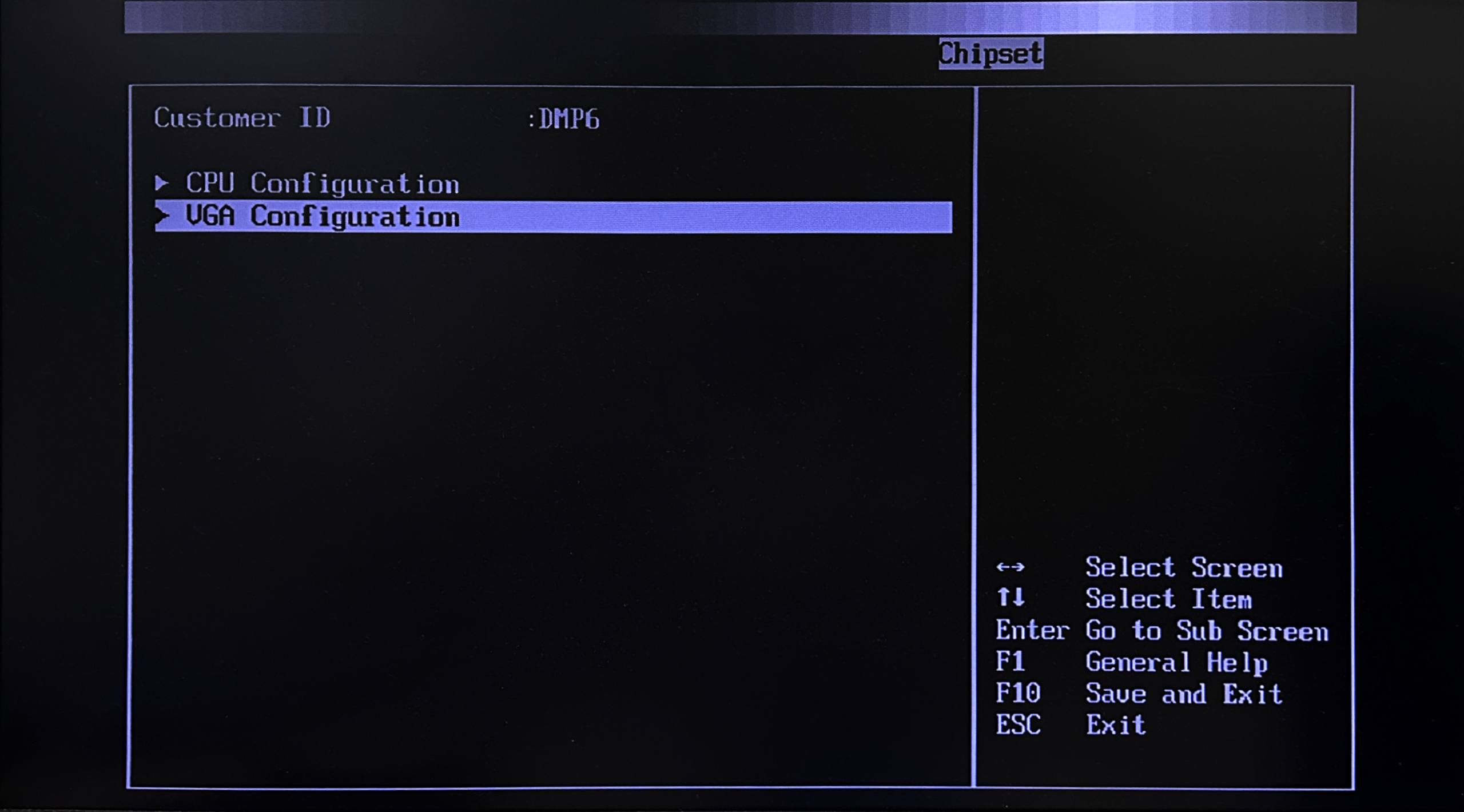

4. Enter VGA Configuration
DX3-ETX-module_backup-04

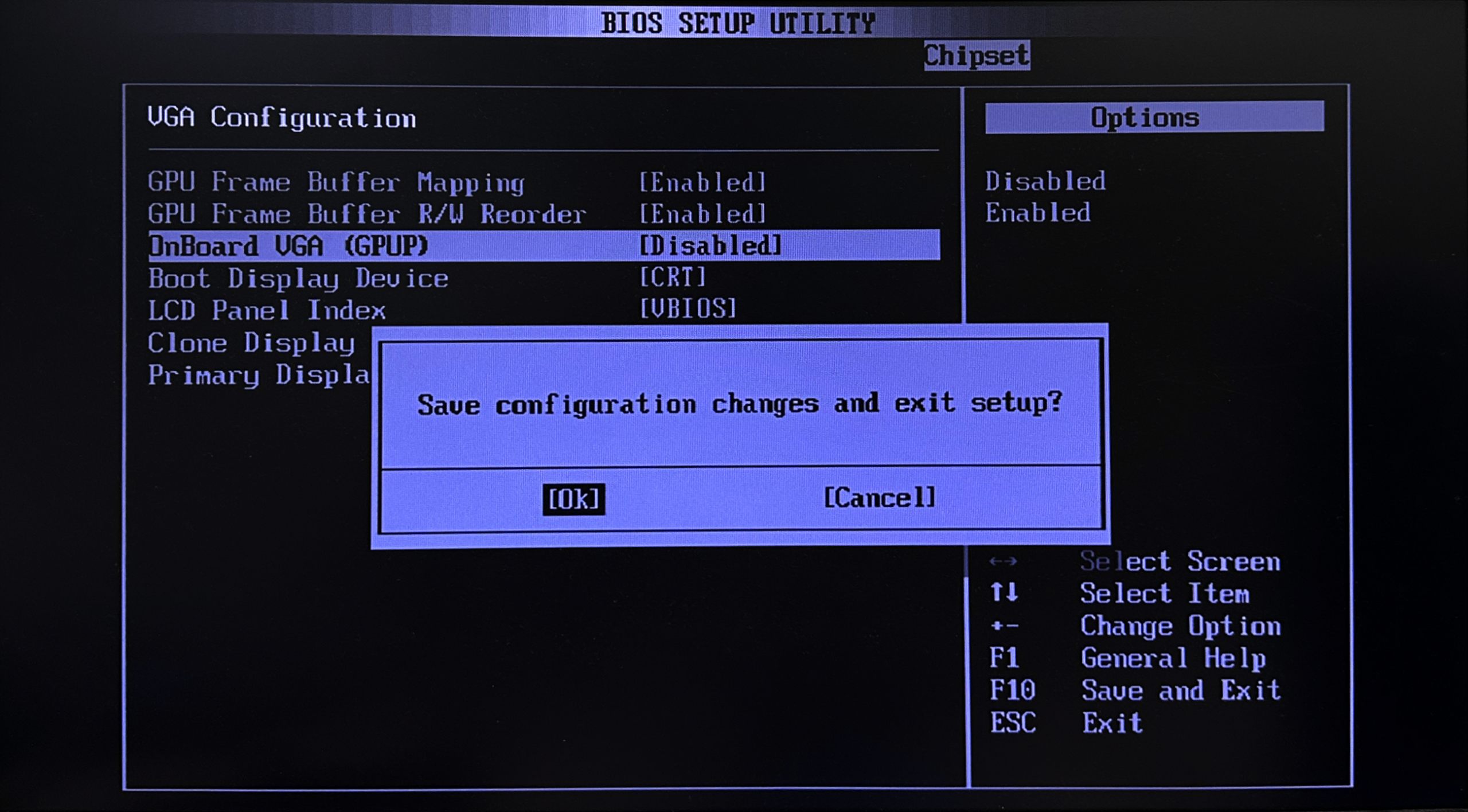

5. As the image below shown, disabled the OnBoard VGA(GPUP)

6. Press F10 to save the configuration.

7. After disable the Onboard VGA (GPUP), VDX3-ETX could display from the PCI graghics card as a primary display.

For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
