DM&P SoC Vortex86DX3- 1GHz
VDX3-ETX

2S/4U/VGA/LVDS/LAN/LPT/I2C/AUDIO/PCI/ISA/16GPIO/IDE/SATA

  • Vortex86DX3 1GHz
  • 1GB
  • 2GB
  • RS-232
  • USB
  • LAN
  • LPT
  • I2C
  • Audio
  • PCI
  • ISA
  • GPIO
  • VGA
  • LVDS

Specifications

  • DM&P SoC Vortex86DX3- 1GHz

  • 1GB / 2GB DDR3 onboard

  • 2S/4U/VGA/LVDS/LAN/LPT/I2C/AUDIO/PCI/ISA/16GPIO/IDE/SATA

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

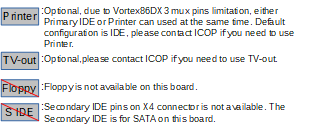

  • Without: Secondary IDE Channel

  • Optional: GLAN

  • Long life-cycle guarantee

Manual

Datasheet

Technical Resource

Processor DM&P SoC CPU Vorteex86DX3 - 1GHz
L1: 16K I-Cache, 32K D-Cache, L2: 512KB Cache
RAM 512MB/1GB/2GB DDR3 Onboard
BIOS AMI BIOS
Watchdog Timer Software programmable from 30.5μs sec. to 512 sec. x 2 sets
Display Integrated 2D VGA chip with Dual Display Support
(VGA + LVDS)
Share 16MB to 256MB system memory
18/24-bit Single Channel LVDS
24-bit Dual-channel LVDS (Optional)
VGA: Maximum resolution up to 1920x1080
LVDS(Single) Maximum resolution up to 1024x768
LVDS(Dual) Maximum resolution up to 1920x1080
LAN Realtek 8111F 10/100/1000Mbps
(Default 10/100 mode)
Audio HD Audio
PWM None
Optional Interface None
I/O interface SATA x1
Enhanced IDE (UltraDMA-100/66/33) x1
Serial Port x2
USB (Ver 2.0) x4
Connector SATA 7-pin for SATA x1
1.25mm 10-pin box header for GbE x1
Power Requirement Single Voltage +5V@ (TBD)
Weight 110g
Dimensions 95mm x 114mm (3.7 x 4.5 inches)
Operating Temp. -20℃ ~ +70℃
-40℃ ~ +85℃ (Optional)
OS Support DOS
Windows CE6.0/CE7.0/XP Professional/Embedded Standard(XPE)/Embedded Standard 7
POS Ready (WePOS)
Embedded Linux
X-Linux
QNX
VxWorks
FreeBSD
Item number Product Description
VDX3-ETX-53IS Vortex86DX3 ETX Module with 512MBDDR3/2S/4USB/LAN/VGA/LCD(18/ 24-bit/AUDIO/PCI/SATA/IDE, -10 to +60°C
VDX3-ETX-74IE Vortex86DX3 ETX Module with 1GBDDR3/2S/4USB/LAN/VGA/LCD(18/ 24-bit/AUDIO/PCI/SATA(Vertical Connector)/IDE, -20 to +70°C
VDX3-ETX-74IE-H Vortex86DX3 ETX Module with 1GBDDR3/2S/4USB/LAN/VGA/LCD(18/ 24-bit/AUDIO/PCI/SATA(Horizontal Connector)/IDE, -20 to +70°C
VDX3-ETX-75IE Vortex86DX3 ETX Module with 2GBDDR3/2S/4USB/LAN/VGA/LCD(18/ 24-bit/AUDIO/PCI/SATA(Vertical Connector)/IDE, -20 to +70°C
VDX3-ETX-75IE-H Vortex86DX3 ETX Module with 2GBDDR3/2S/4USB/LAN/VGA/LCD(18/ 24-bit/AUDIO/PCI/SATA(Horizontal Connector)/IDE, -20 to +70°C

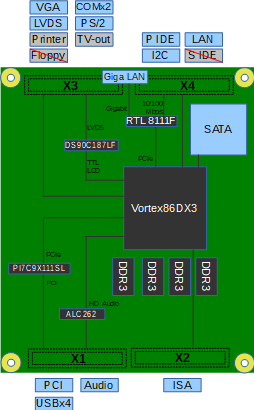

The VDX3-ETX is a low-power CPU module which compliant with ETX standard. It takes advantage of the Vortex86DX3 1GHz x86 CPU, which integrates the PCIe, IDE, I2C, VGA, LVDS, PS/2, USB, HD Audio, and even 16-bit ISA bus support.

The VDX3-ETX is designed as a plug-in replacement, with backward compatibility to support legacy software to extend the existing product life cycle without heavy re-engineering.
