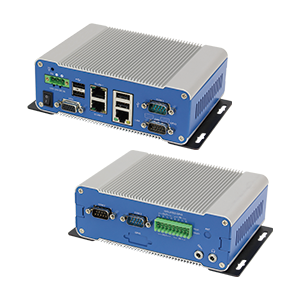

The iBPC is an BOX Mini PC designed by ICOP specifically for high-stability applications, featuring the DM&P SoC Vortex86DX3 1GHz processor to deliver excellent computing performance. It comes with flexible I/O configurations and interference-resistant GPIO design. The isolated GPIO further enhances interference protection, ensuring stable data transmission. The iBPC is an ideal embedded hardware solution for diverse industrial control needs, offering long-term reliable product supply.
Rich I/O Configurations and Flexible Expansion

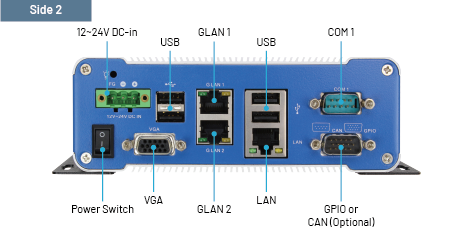

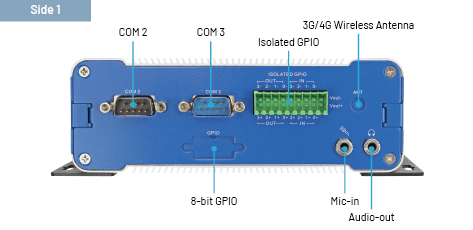

The iBPC offers a variety of I/O combinations, including 2x GLAN and 1x 10/100M LAN, general 8-bit GPIO, and an isolated 8-bit GPIO, with optional CAN BUS support. Additionally, it is equipped with 4x USB ports, 3x COM ports, VGA, LVDS, MIC-in, and Audio-out, providing exceptional flexibility. The iBPC also supports Mini PCI-Express slots (for installing 3G/4G modules) and antenna connectors for further expansion.
iBPC feature 1: Isolated GPIO Enhances Interference Resistance

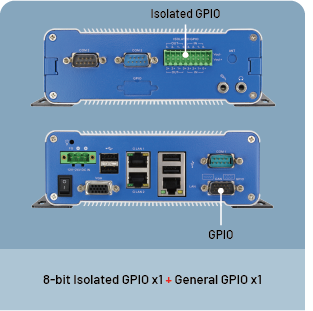

One of the key features of the iBPC is its provision of two types of GPIO configurations: general 8-bit GPIO and 8-bit isolated GPIO. This not only meets general I/O requirements but also enhances interference resistance through the Isolated GPIO, reducing communication interference and ensuring stable data transmission.

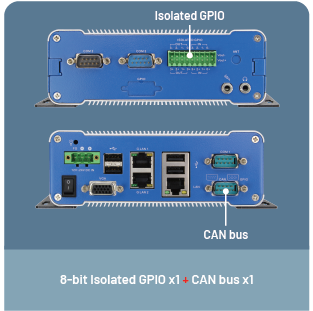

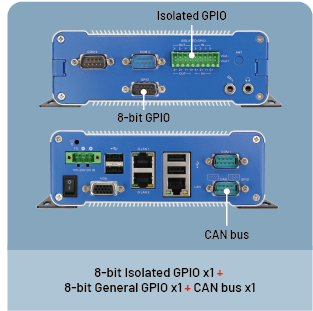

iBPC feature 2: Flexible I/O Combinations with Both CAN Bus and General GPIO
The iBPC supports three I/O configurations, offering flexible application choices, including:
High Efficiency and Stability in Harsh Environments
The fanless design of the iBPC supports stable operation in working temperatures ranging from -20°C to 70°C, adapting to various environments and simplifying maintenance costs, making it an ideal embedded hardware solution. The CPU it features is developed and produced by our partner DMP, focusing on providing stable product quality and long-term supply, ensuring customers do not have to worry about rapid product end-of-life (EOL) issues, thus guaranteeing long-term reliable solutions.
ICOP Customer’s Applications: The Ideal Solution for Traffic Control Systems
In the practical applications of ICOP customers, the iBPC is widely used in traffic control systems. Its flexible I/O configuration enables multitasking for tasks such as traffic signal control, traffic flow monitoring, and data collection. Equipped with isolated GPIO design, the iBPC ensures stable data transmission, allowing it to operate reliably even in harsh environments. Additionally, the product supports Linux, Ubuntu, and Debian operating systems, providing developers with greater flexibility to meet diverse development needs. Whether in traffic management systems or other industrial applications, the iBPC is an ideal embedded hardware choice for achieving efficient and stable operation, offering long-term reliable product supply.
For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
