Specifications
DM&P SoC Vortex86DX3- 1GHz
2GB DDR3 onboard
3S/4U/VGA/LVDS/2GLAN/LAN/Audio/16GPIO/SATA/mSD
Operation Temperature: -20 ~ +70°C
Isolated GPIO
Optional: Mini-PCIe socket / CAN / SIM Holder
8-bit Isolated GPIO
Single channel 24-bit LVDS
| Processor | DM&P SoC CPU Vortex86DX31 GHz L1: 32K I-Cache, 32K D-Cache L2:512KB Cache |
|||
| RAM | 1/2GB DDR3 Onboard | |||
| BIOS | AMI BIOS | |||
| Display | Integrated 2D VGA chip with Dual Display Support (VGA + LVDS) VGA: Maximum resolution up to 1920 x 1080 @ 60Hz LVDS: Maximum resolution up to 1024 x 768 @ 60Hz, single-channel 24-bit LVDS |
|||
| LAN | Integrated 10/100Mbps Ethernet x1 | Realtek 8111F Giga Ethernet x2 | ||
| Audio | MIC-in x1 | Lin-out x1 | ||
| Disk Support | SATA DoM | Micro SD | ||
| I/O Interface | RS232 x3 (RS485 x2) 8-bit Isolated GPIO x1 8-bit GPIO x1 (Optional) |
USB (ver. 2.0) x4 CAN Bus x1 (Optional) Mini PCIe x1 (USB + RS232 signal supported) |
||

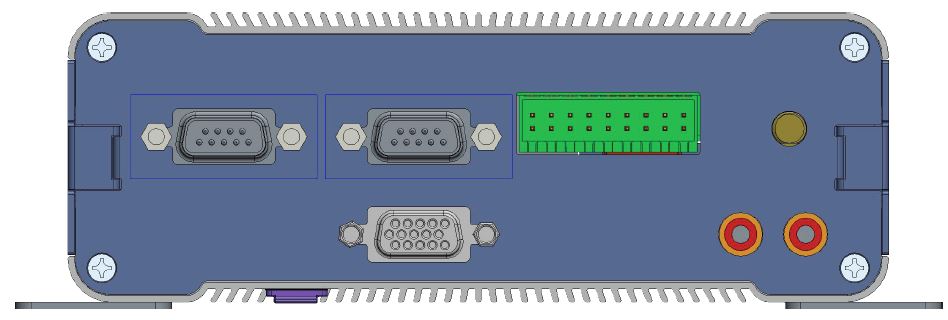

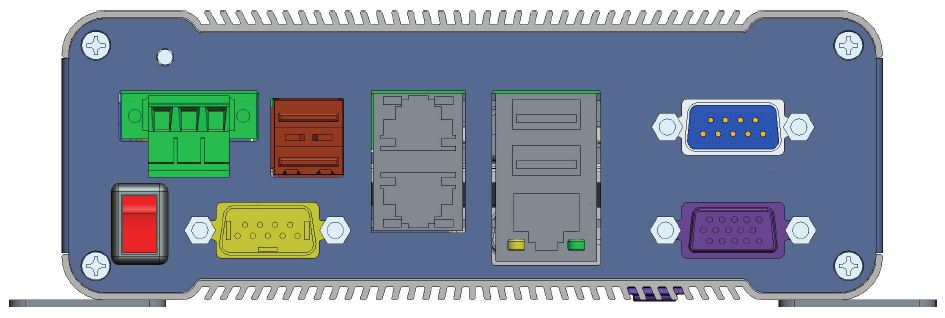

| Connectors | 15-pin D-Sub male connector for CAN Bus x1 (Optional) 15-pin D-Sub male connector for GPIO x1 (Optional) 9-pin D-Sub male connector for RS232 x3 9-pin D-Sub male connector for VGA x1 5mm 3-pin terminal block for DC-in x1 3.5mm 18-pin terminal block for isolated GPIO x1 RJ45 connector for Ethernet x1 RJ45 connector for Giga Ethernet x2 |
3.5mm jack for Line-out x1 3.5mm jack for MIC-in x1 Power switch x1 USB connector x4 Mini PCIe slot x1 |
||
| Power Requirement | 12 to 24VDC | |||
| Operating Temperature | -20°C to +70°C | |||
| Certifications | CE FCC VCCI |
|||
| Dimension | 152 x 104 x 54mm | |||
| Weight | 760g | |||
| O/S Support | Windows7 Windows Embedded Standard 7 Windows Embedded Compact 7 Windows Embedded CE6.0 Windows XP Professional Windows Embedded 2009 |
Linux DOS POS Ready (WePOS) QNX VxWorks FreeBSD |
||
*SATADoM support is set as default.
Box System:
| PART NO. | iBPC-D3-74GE | iBPC-D3-74CE | iBPC-D3-74FE |
| CPU (MHz) | 1GHz | 1GHz | 1GHz |
| DRAM (DDR3) | 1GB | 1GB | 1GB |
| Mini PCIe* | 1 | ||
| Storage | **SATADoM, Micro SD | ||
| Display | VGA, LVDS | ||
| LAN | 1 | ||
| Giga LAN | 2 | ||
| RS232 | 3 (RS485 x2) | ||
| USB | 4 | ||
| Isolated GPIO | 8 | ||
| GPIO | 8 | --- | 8 |
| CAN Bus | --- | 1 | 1 |
| Audio | MIC-in, Line-out | ||
*Mini PCI supports RS232 and USB signal (Optional)
**SATADoM support is set as default.
| PART NO. | iBPC-D3-75GE | iBPC-D3-75CE | iBPC-D3-75FE |
| CPU (MHz) | 1GHz | 1GHz | 1GHz |
| DRAM (DDR3) | 2GB | 2GB | 2GB |
| Mini PCIe | 1 | ||
| Storage | SATA DoM, Micro SD | ||
| Display | VGA, LVDS | ||
| LAN | 1 | ||
| Giga LAN | 2 | ||
| RS232 | 3 (RS485 x2) | ||
| USB | 4 | ||
| Isolated GPIO | 8 | ||
| GPIO | 8 | --- | 8 |
| CAN Bus | --- | 1 | 1 |
| Audio | MIC-in, Line-out | ||
*Mini PCI supports RS232 and USB signal (Optional)
**SATADoM support is set as default.
Storage:
| Product Name | MLC | SLC | 0°Cto +70°C | -40°Cto +85°C |
| SDM-SST-2G-H-M | V | V | ||
| SDM-SST-4G-H-M | V | V | ||
| SDM-SST-2G-H-S-X | V | V | ||
| SDM-SST-4G-H-S-X | V | V | ||
| SDM-SST-8G-H-S-X | V | V | ||
| ISATA-8G-H-M | V | V | ||
| ISATA-16G-H-M | V | V | ||
| ISATA-32G-H-M | V | V | ||
| ISATA-64G-H-M | V | V | ||
| ISATA-8G-H-M-X | V | V | ||
| ISATA-16G-H-M-X | V | V | ||
| ISATA-32G-H-M-X | V | V | ||
| ISATA-64G-H-M-X | V | V | ||
| ISATA-1G-H-S | V | V | ||
| ISATA-2G-H-S | V | V | ||
| ISATA-4G-H-S | V | V | ||
| ISATA-8G-H-S | V | V | ||
| ISATA-16G-H-S | V | V | ||
| ISATA-16G-H-S-X | V | V |
ICOP is proud to announce its first embedded box computer solution iBPC. Featuring DMP’s Vortex86DX3 low-power consumption x86 1GHz processor, the iBPC provides balanced computing performance with onboard 2GB DDR3 system memory and 2.5” SATA HDD or 7-pin SATA DOM with Micro SD for storage.
With abundant I/O features and palm-size design, the iBPC has a variety of I/O combinations, such as two Giga LANs and one 10/100M LAN, one isolated 8-bit GPIO as well as 8-bit GPIO and optional CANbus. Furthermore 4 x USB, 3 x COM, VGA, LVDS, MIC-in, and Audio-out. One Mini PCI-Express (for 3G/4G module) plus an antenna connector.
Numerous I/O features and -20℃ to 70℃ operating environment temperature support make this Box PC an ideal embedded hardware device for your market solution, achieving cost, quality, and time to the market purpose.
iBPC Features:
For more info, please write to info@icop.com.tw, visit www.icop.com.tw, or ring +886-2-8990-1933, ICOP Technology.
