ICOP PPC EHL Series, the fanless 9” to 15” Touch Panel Industrial Computer with Intel® Elkhart Lake processor

December 11, 2023

To address the demand from automation market in Industrial 4.0 development, ICOP has released higher performance PPC EHL series (PPC-XXXX-EHL) with Intel® Elkhart Lake J6412 processor inside and supports DDR4 memory up to 32GB.

Inheriting the previous ICOP PPC series’ advantages, the new touch Panel PC PPC EHL series features ultra-texture aluminum exterior with fanless design, low power consumption, shock and vibration resistance, IP65 front panel protection and 12~24 VDC input. Its ruggedized and sleek design is well-suited for the usage in diverse environments and applications.


Optimizing Industrial Networks: ICOP PPC EHL Series' Dual Ethernet and Multi-Display Features

For AIoT solution, ICOP PPC EHL series adopts 2* Intel® i225-V 2.5GbE to get high data transfer speed via Ethernet, and also has M.2 M-key (2242/2280) slot for PCIe Gen. 3 *2 or SATA interface to support NVME storage. The M.2 slots (B-Key and E-Key) are suitable for expansion options like 4G/5G Module, WLAN/BT Module, I/O Module and etc... These ports allow seamless integration into various industrial setups, ensuring compatibility with your existing infrastructure.


For multi-display applications, ICOP PPC EHL series has two HDMI ports, allowing users to connect it to two more external displays when needed, thus enabling efficient multi-tasking and enhanced visualization in various industrial environments.

ICOP PPC EHL series have CE, UKCA, FCC and VCCI certifications, and also passed IP65 front panel, Shark and Vibration tests.

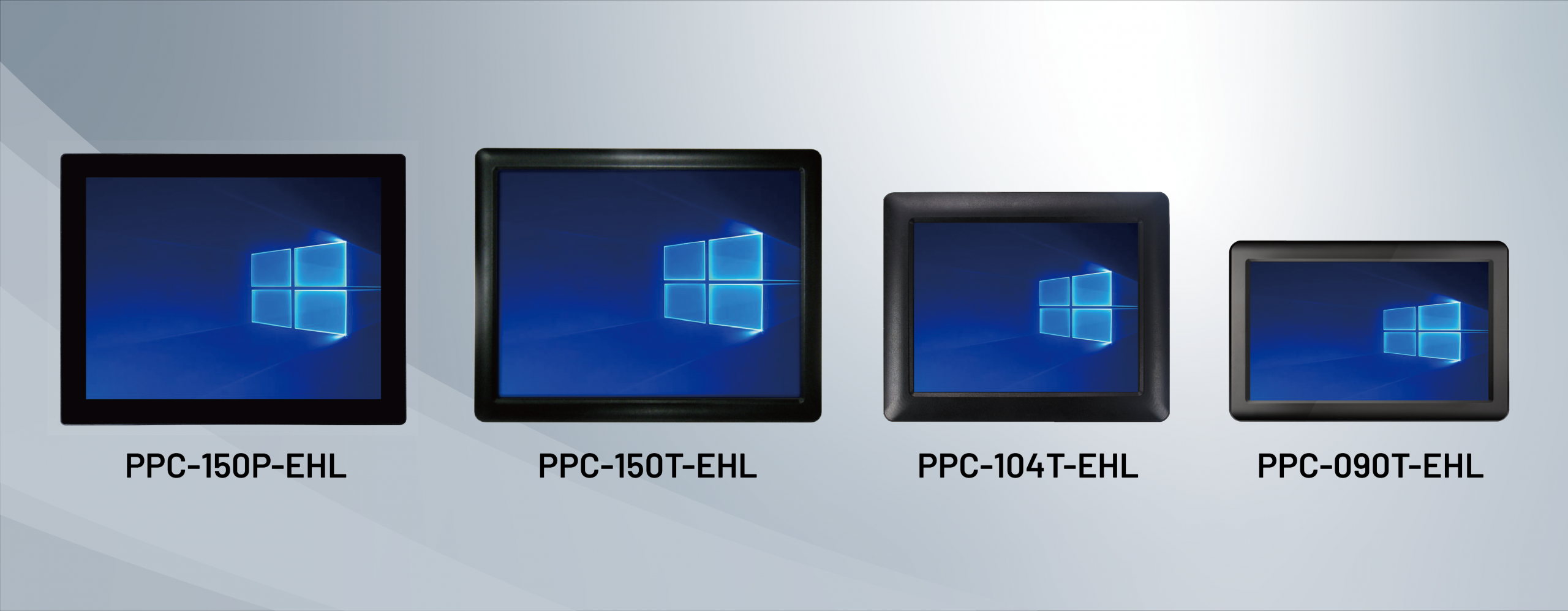

Versatile Display Sizes in ICOP PPC EHL Series

The ICOP PPC EHL series offers a range of display sizes from 9-inch to 15-inch, meeting various customer needs. This selection allows users to choose the ideal screen size for their specific industrial applications, ensuring both efficiency and convenience in any setting.

For more detail, please refer the product information as below.

Processor Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz)
Display Size 15-inch 15-inch 10.4-inch 9-inch
Touchscreen Capacitive Resistive Resistive Resistive or Capacitive
System RAM 8GB / 16GB / 32GB DDR4 Memory

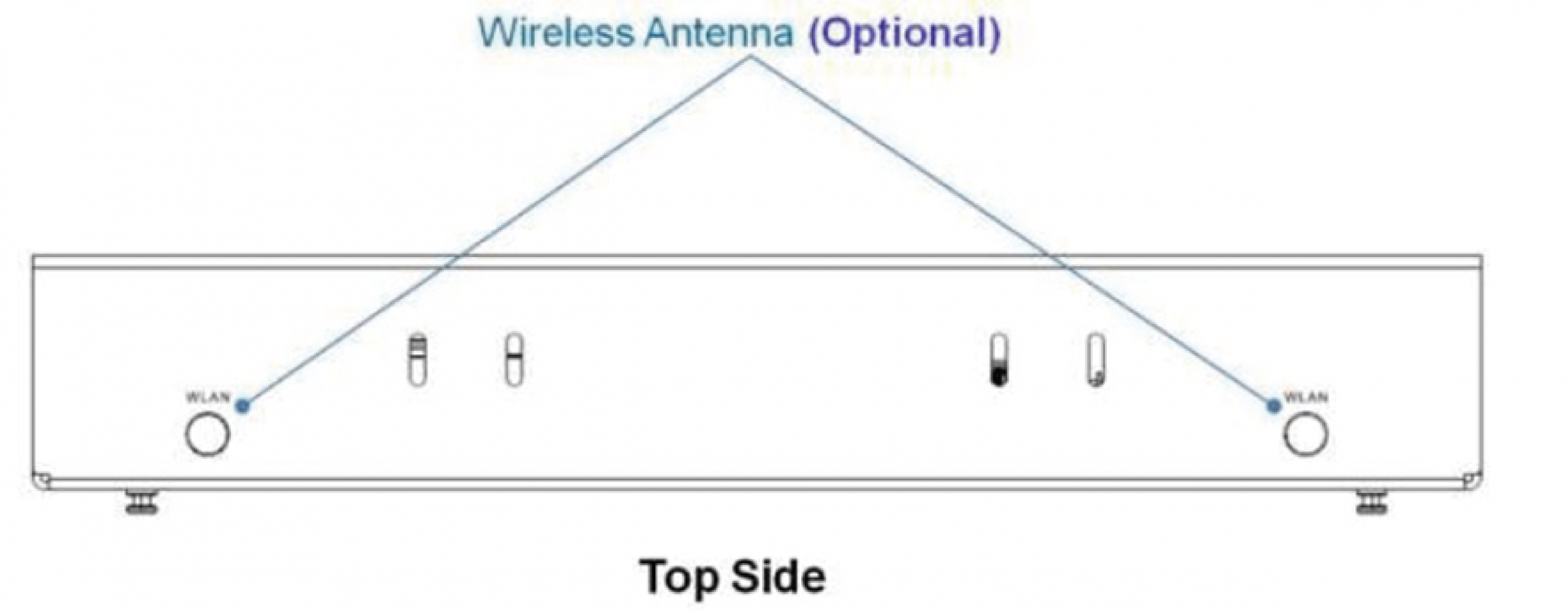

Expansion M.2 B-key (3024) USB3.1/USB2.0 interface
M.2 E-key (2230) USB2.0/PCIe Gen3 *1 interface

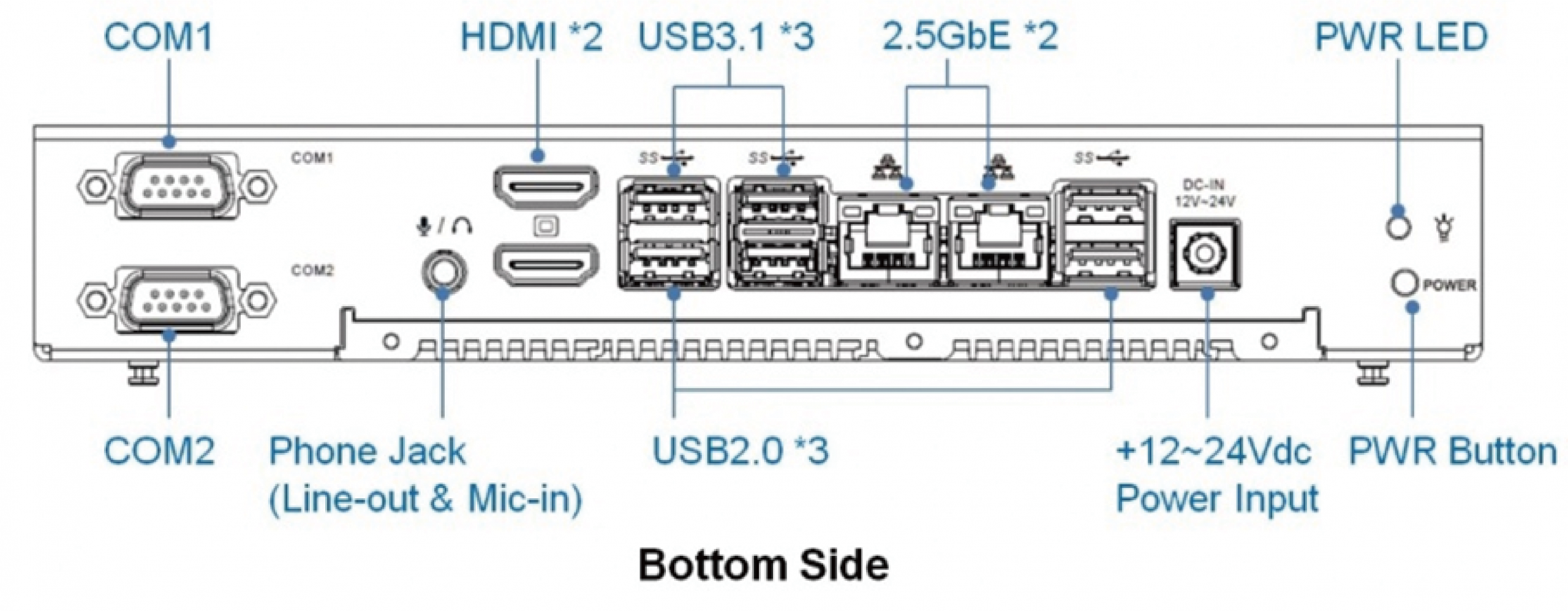

Display HDMI x2
Ethernet Intel® i225-V 2.5GbE x2

In summary, PPC EHL series from ICOP Technology Inc. combines high performance, elegant design, and versatility, setting a new standard in embedded computing.

For more info and sample request, please write to, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
