EB-EHL, Embedded Barebone PC with Intel® Elkhart Lake J6412 Processor, supporting Windows 10, Windows 10 IoT, Windows 11 and Linux

ICOP Technology Inc. is excited to release a new BOX PC, which offers a fanless design, high performance, and low power consumption. The EB-EHL is powered by Intel® Elkhart Lake J6412 processors, and up to 32GB of SO-DIMM DDR4 module that handles processing more efficiently and provides faster performance. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.

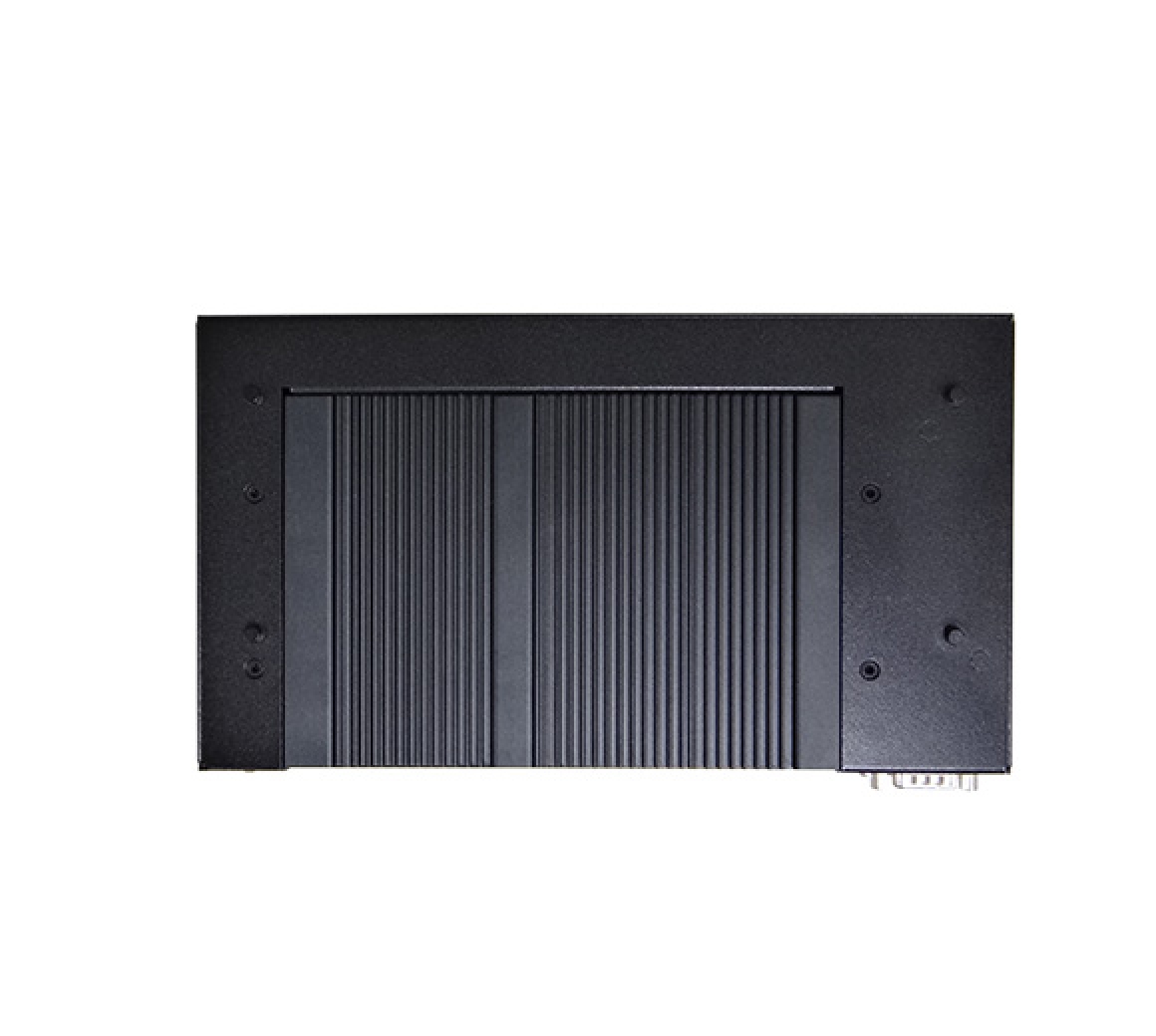

EB-EHL Series, the thin-size Mini Box PC, support M3*4 mounting holes for system shock and vibration, and can be quickly applied to existing solutions

The new EB-EHL’s consistent advantages, such as stable performance, extended working temperature support, and low power consumption, are complemented by its fanless design, which adds to its reliability and durability. It inherited the Embedded Barebone series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish.

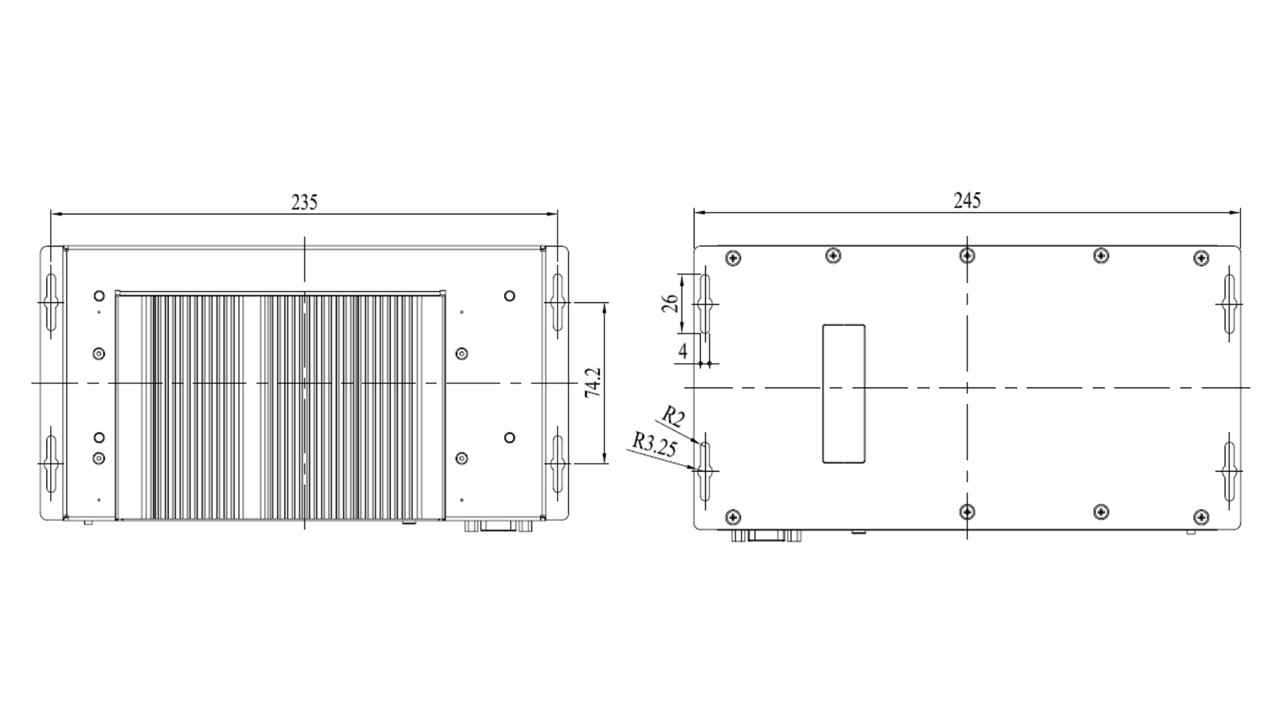

The EB-EHL's dimension is 242.02 x 156.52 x 50.55mm, and it reserves 4 mounting holes, can use M3*4 screws to lock the EB-EHL system upon the chassis if you need. The operating temperature is from 0°C to +60°C.

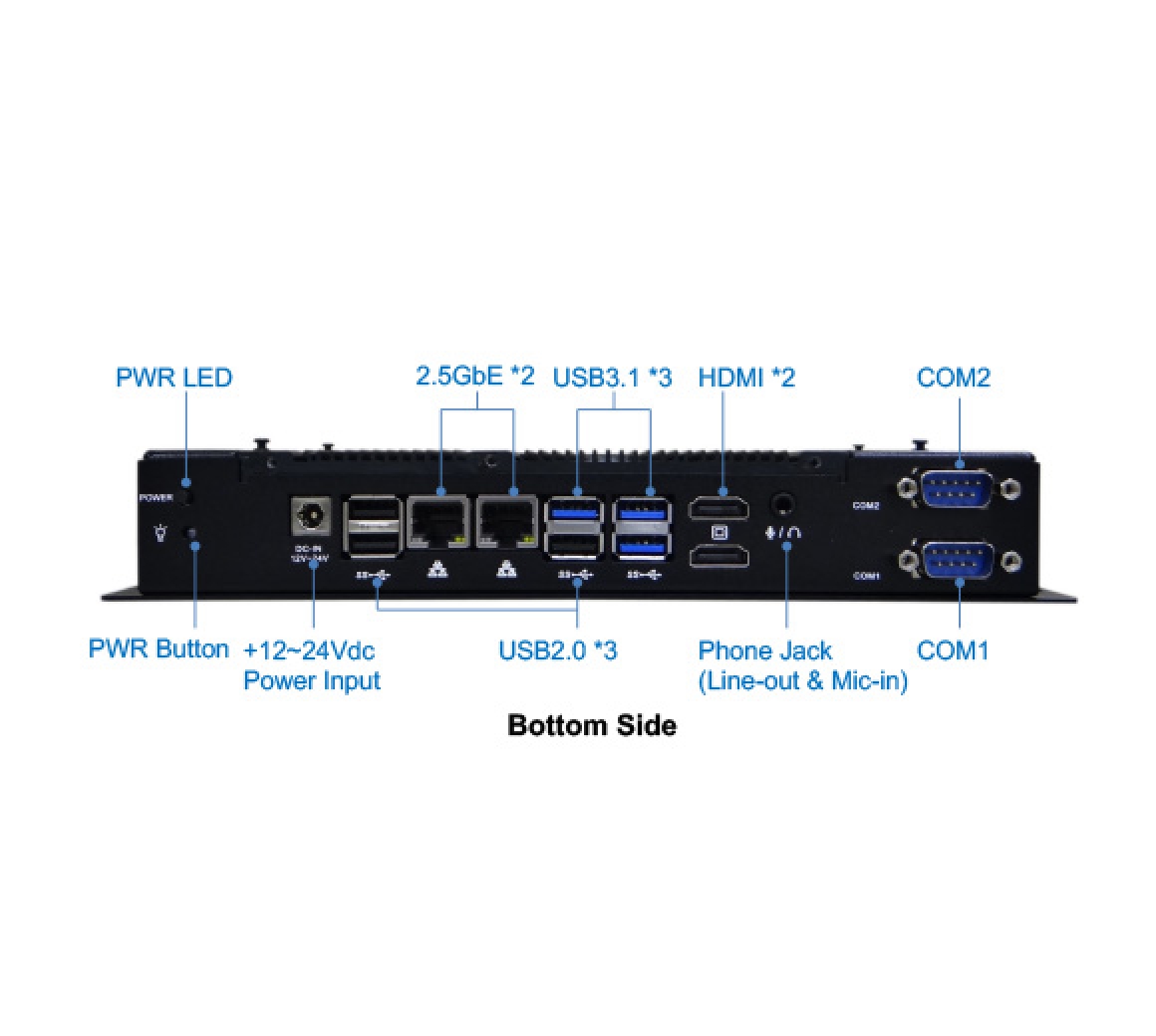

The EB-EHL Series' assortment of versatile I/O ports and 2.5GIGA high-speed Ethernet ensures the fulfillment of core operational needs. Additionally, the expandable customizable I/O ports are designed to seamlessly align with the specific connectivity requirements of industrial machinery and automation equipment.

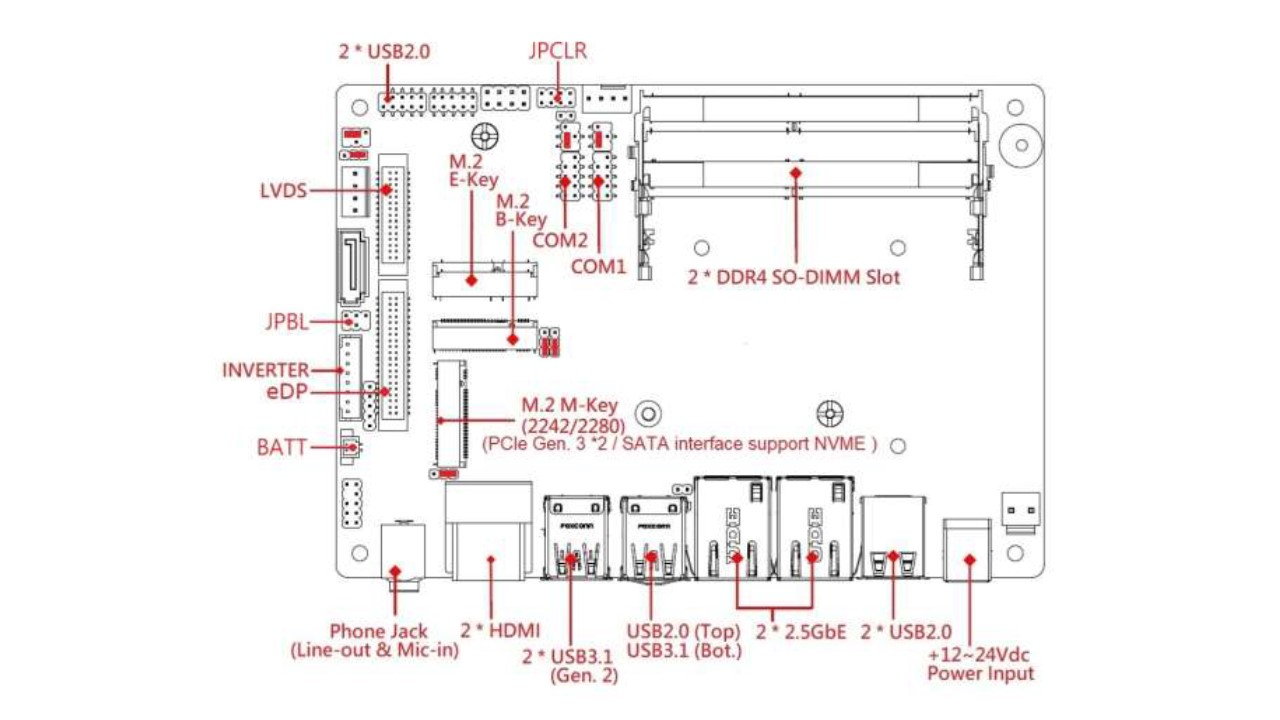

The EB-EHL Series is equipped with M.2 interface technology, enhancing its connectivity and storage capabilities. It features each one of M.2 B-key (3024) slot supporting USB 3.1 and USB 2.0 interface and M.2 E-key (2230) supports USB2.0/PCIe Gen3 *1 interface, ensuring high-speed data transfers and broad peripheral compatibility. It also has M.2 M-key (2242/2280) PCIe Gen. 3 *2 / SATA interface support NVME solid-state for storage, offering quick boot times and efficient performance. The various M.2 configurations provide flexible options for expansion and customization to meet diverse industrial needs.

The EB-EHL series also reserves the dual channel LVDS signals and inverter voltage supply & control for the external TFT LCD Panel with LED backlight, which connects the LVDS and LED backlight cables to become a custom Panel PC product.

Intel® HD Graphics:

• HDMI x2 (Max. 4096x2160@60Hz)
• Dual Channel LVDS x1 (Max. 1920x1080@60Hz)
• eDP x1 (Max. 4096x2160@60Hz)

(Only can choose either one of LVDS or eDP function)
Furthermore, the EB-EHL’s compatibility with a range of operating systems – Windows 10, Windows 10 IoT, Windows 11, and Linux – positions it as a versatile and market-ready solution. This broad software support provides customers with a competitive edge, allowing them to deploy the EB-EHL in a variety of industrial contexts with ease and efficiency.

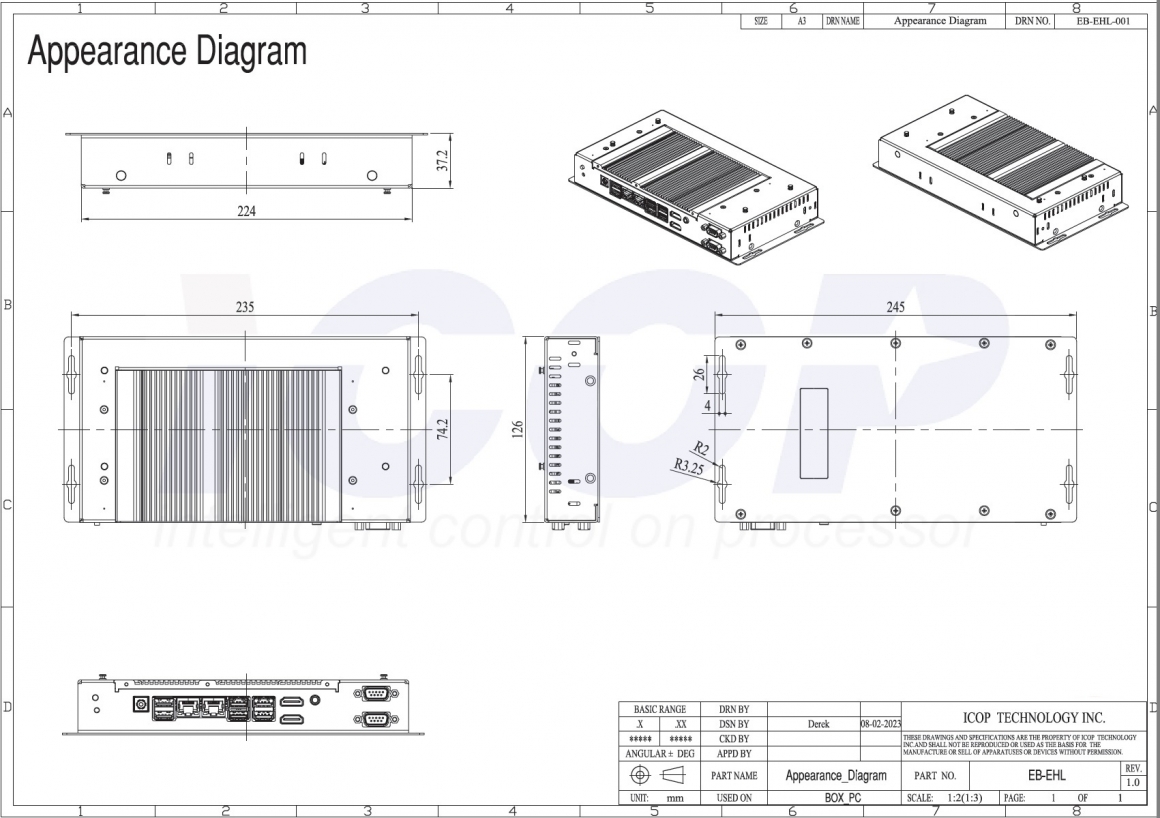

Appearance Diagram:
