Specifications
Intel® Elkhart Lake J6412 SoC Processor (Quad Core 2.0GHz)
8GB / 16GB / 32GB SO-DIMM DDR4
2S/6U/2HDMI/2 2.5GLAN/Audio/M.2/12~24V Power Adapter
Operation Temperature: 0 ~ +60°C
2 external HDMI (Max. 4096x2160@60Hz)
M.2 M-key (2242/2280) PCIe Gen.3 *2/SATA interface support NVME
M.2 B-key (3024) USB3.1/USB2.0 interface
M.2 E-key (2230) USB2.0/PCIe Gen.3 *1 interface
Intel® i225-V 2.5GbE x2
Reserved LVDS / LED Backlight cables hole for external LCD panel
| Processor | Intel® Elkhart Lake J6412 | |
| Memory | 8GB / 16GB / 32GB SO-DIMM DDR4 | |
| BIOS | AMI UEFI BIOS | |
| Expansion | M.2 B-key (3024) USB3.1/USB2.0 interface M.2 E-key (2230) USB2.0/PCIe Gen.3 *1 interface |
|
| Display | HDMI x2 (Max. 4096x2160@60Hz) Dual Channel LVDS x1 (Max. 1920x1080@60Hz; The connection hole design is reserved on the Bottom side.) eDP x1 (Max. 4096x2160@60Hz; Co-lay with LVDS connector.) |
|
| HD Audio | Realtek ALC888S | |
| Ethernet | Intel® i225-V 2.5GbE x2 | |
| Disk Support | M.2 M-key (2242/2280) PCIe Gen.3 *2/SATA interface support NVME | |
| Serial Ports | 2 COM ports (COM1 RS232/485/422 support & COM2 RS232 support) | |
| USB Ports | USB3.1 (Gen.2) x3 | USB2.0 x3 |
| Power Requirement | +12~+24V Power Adapter Only | |
| Operating Temperature | 0℃~ 60℃ | |
| Dimension | 245 x 126 x 37.2mm | |
| OS Support |
Windows 10 |
|
| Part Number | Description |
| EB-EHL-J6-8G | EB-EHL Series with Intel® Elkhart Lake J6412, 8GB DDR4 Memory, 2S, 2*2.5GLAN |
| EB-EHL-J6-16G | EB-EHL Series with Intel® Elkhart Lake J6412, 16GB DDR4 Memory, 2S, 2*2.5GLAN |
| EB-EHL-J6-32G | EB-EHL Series with Intel® Elkhart Lake J6412, 32GB DDR4 Memory, 2S, 2*2.5GLAN |
| POWER-12V3.34A-MW | AC – DC power adapter / DC12V @ 3.34A (AC 90 ~ 240V Input) |
|
POWERCABLE(A) / |
US / EU / UK / AU & NZ power cord for POWER-12V3.34A-MW |
EB-EHL Series Embedded Barebone PC.
ICOP Technology Inc. is proudly going to release a brand new BOX PC, which offers a fanless design, high performance, and low power consumption. The EB-EHL is powered by Intel® Elkhart Lake J6412 processors, and up to 32GB of SO-DIMM DDR4 module that handles processing more efficiently and provides faster performance. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.
The new EB-EHL inherited the Embedded Barebone series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. The versatile I/O ports, 2.5GIGA high-speed Ethernet, etc. can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption, and fanless design. The expandable customized I/O ports can accommodate connectivity requirements to industrial machine platforms and industrial automation equipment’s needs. The BOX PC also reserves the dual channel LVDS signals and inverter voltage supply & control for the external TFT LCD Panel with LED backlight, which connects the LVDS and LED backlight cables to become a custom Panel PC product.
The EB-EHL supports Windows 10, Windows 10 IoT, Windows 11, and Linux to meet ready-to-market demand and provide competitive advantages for customers.

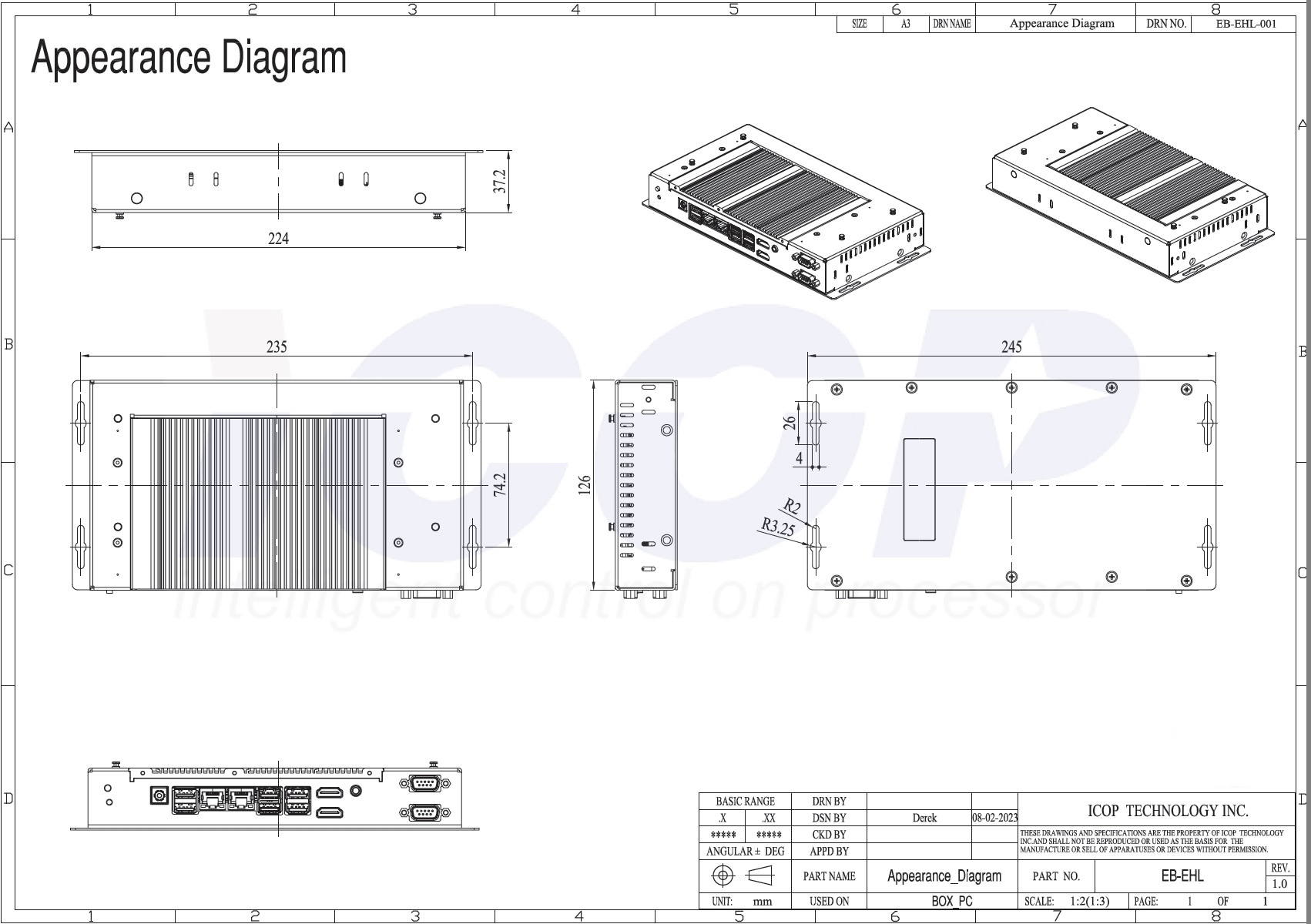

Appearance Diagram:
