Specifications
Intel® Braswell x5-E8000 1.04GHz
4GB DDR3L onboard
4S/6U/HDMI/VGA/LVDS/2GLAN/AUDIO/16GPIO/MiniPCIE
9" inch TFT 1024x600 Resolution LCD with resistive touchscreen
Operation Temperature: 0 ~ +50°C
Brightness 300nits and Backlight 20,000hrs
Default SBC: IBW-35-E4
Windows 10, Win10 IoT, Linux support
| LCD | Type | WSVGA TFT LCD | |
| Size | 9” | ||
| Resolution (Pixel) | 1024 x 600 | ||
| View Angle | Vertical 140∘ / Horizontal 160∘ | ||
| Brightness | 300 cd/m2 | ||
| Backlight Life | 20,000 hrs | ||
| CPU | Intel® AtomTM x5-E8000 2.00GHz (Burst) 1.04GHz Quad Core Intel® Pentium® N3710 2.56GHz (Burst) 1.6GHz Quad Core (Build to order) Intel® Celeron® N3160 2.24GHz (Burst) 1.6GHz Quad Core (Build to order) |
||
| Memory | 4GB DDR3L onboard | ||
| BIOS | UEFI BIOS | ||
| Expansion | MiniPCIe Slot x1, SIM Card Holder x1 | ||
| Display | Intel® HD Graphics, HDMI & VGA (As Dual Display) | ||
| Ethernet |
RTL8111H GbE x2 |
||
| Audio | HD Audio-Realtek ALC262 CODEC | ||
| Disk Support | mSATA & SATA-DOM | ||
| Touch Screen Type | Analog Resistive | ||
| Serial Ports | RS232 x2 (COM1&2 in top side) | RS232/RS485 x2 (COM3&4 in rear side) | |
| USB Ports | USB3.0 x4 | USB2.0 x1 | |
| I/O Interface | I2C x1 | 16-bit GPIO x1 | |
| Power Requirement | 12V standard input from internal 4-pin power connector support for ATX mode | ||
| Power Consumption | 24W (Max.) | ||
| Operating Temperature | 0~+50∘C (32~+122∘F) | ||
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-Condensing | ||
| Operating System | Windows 10 (64-bit) Windows 7 (64-bit) Linux |
||

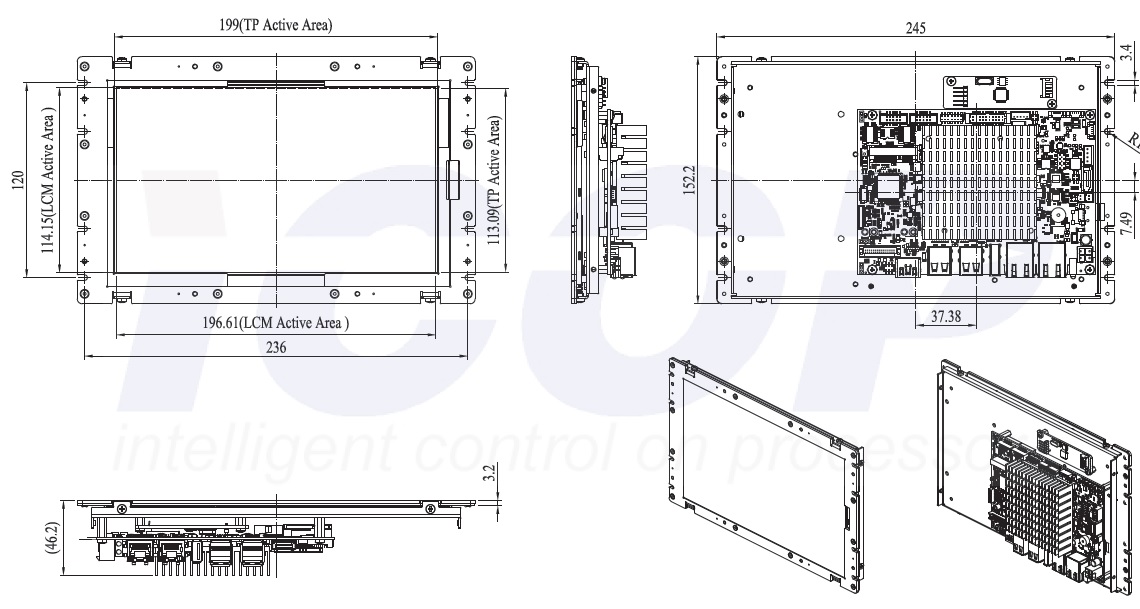

| Dimensions | 245 x 152.2 x 46.2mm | ||
| Weight | 1124g | ||
| Part Number | Description |
| VOX-090-TS-E4 | 9" Open Frame Panel PC with LCD Panel, Touch Screen, USB Touch Controller, IBW-35-E4 (Intel® x5-E8000), 12Vdc input. |
| VOX-090-TS-A4 (BTO) | 9" Open Frame Panel PC with LCD Panel, Touch Screen, USB Touch Controller, IBW-35-A4 (Intel® N3710), 12Vdc input. |
| VOX-090-TS-B4 (BTO) | 9" Open Frame Panel PC with LCD Panel, Touch Screen, USB Touch Controller, IBW-35-B4 (Intel® N3160), 12Vdc input. |
| CABLE-SET-IBW35 | Cable set for IBW-35 (RS232 x4, GPIO x1, Audio x3) |
| POWER-12V3.34A-MW | AC/DC 40W power adapter for VOX with Intel processor |
| POWERCABLE(A) / (G) | AC POWER CABLE (A=American; G=Euro) |
