Specifications
DM&P SoC Vortex86EX2- 600MHz
1GB DDR3 onboard
3U/8S/CAN/GPIO/SPI/LAN/2 MiniPCIe/Audio/2 SD Card
7 inch TFT 800x480 Resolution LCD with resistive touch screen
Operation Temperature: 0 ~ +50°C/ -30 ~ 80℃(Optional)/ -20 ~ +60°C (Optional)
Up to 8 RS232 ports
| Processor | DM&P SoC Vortex86EX2 Master CPU 600MHz (Optional Slave CPU 400MHz) L1:I/D-Cache 16/16KB L2: 128KB |
|||||
| LCD | 7" WVGA TFT LCD with resolution 800 (W) x 480 (H), 400 nits and resistive touch screen / 1,000 nits (Optional) |
|||||
| Expansion | MiniPCIe x2 (SIM card holder support on MiniPCIe1) | |||||
| BIOS | Coreboot BIOS | |||||
| System Memory | 1GB DDR3 Onboard | |||||
| LAN | Integrated 10/100Mbps Ethernet | |||||
| Disk Support | SD Card x2 (SDXC support) | |||||
| I/O Programmable | USB2.0 x3 CAN bus (2.0A/2.0B) x1 Speak Out (R) x1 |
8-bit GPIO |
RS232 x8 (Include 2x RS232/485) Speak Out (L) x1 |
|||
| Connectors | 1.25mm 5-pin wafer for USB x3 1.25mm 10-pin wafer for GPIO x1 1.25mm 2-pin wafer for Speak Out (R) x1 1.25mm 7-pin wafer for SPI Bus x1 MiniPCIe slot x2 |
1.25mm 3-pin wafer for CAN Bus x1 1.25mm 4-pin for MIC-in x1 1.25mm 10-pin wafer for RS232 x2 2.0mm 3-pin wafer for DC Power Input x1 Micro SIM card holder x1 |
1.25mm 8-pin wafer for LAN x1 1.25mm 2-pin wafer for Speak Out (L) x1 1.25mm 4-pin wafer for LEDs x1 2.0mm 4-pin wafer for PoE x1 (Optional) |
|||
| Headers | 2.0mm 2-pin header for Hardware Reset | 2.54mm 2-pin header for RS485 Selection x2 (For COM1 & COM2) | ||||
| Power Requirement | +12 to +24VDC Power Input | |||||
| Power Consumption |
7Watt (Typical) | |||||
| Operating Temperature | 0°C to +50°C -20°C to +60°C (Optional) |
-30°C to +80°C (Optional) | ||||
| Dimension | 186 x 121.05 x 33.15mm | |||||
| Weight | 520g | |||||
| O/S Support | Windows Embedded Compact 7 Buildroot DOS |
Windows Embedded CE6.0 FreeBSD |
Linux |
|||
| Part Number | Description |
| VOX-070-TS-EX2C8-V | 7” EX2 OP w/1GB/3U/8S/CAN/GPIO/LAN/2 MiniPCIe/SPK-OUT/MIC-IN/2 SD Card/GPU-A9160 |
| CABLE-400OP-SET | Cable set for VOX-070-TS-EX2C8 series |

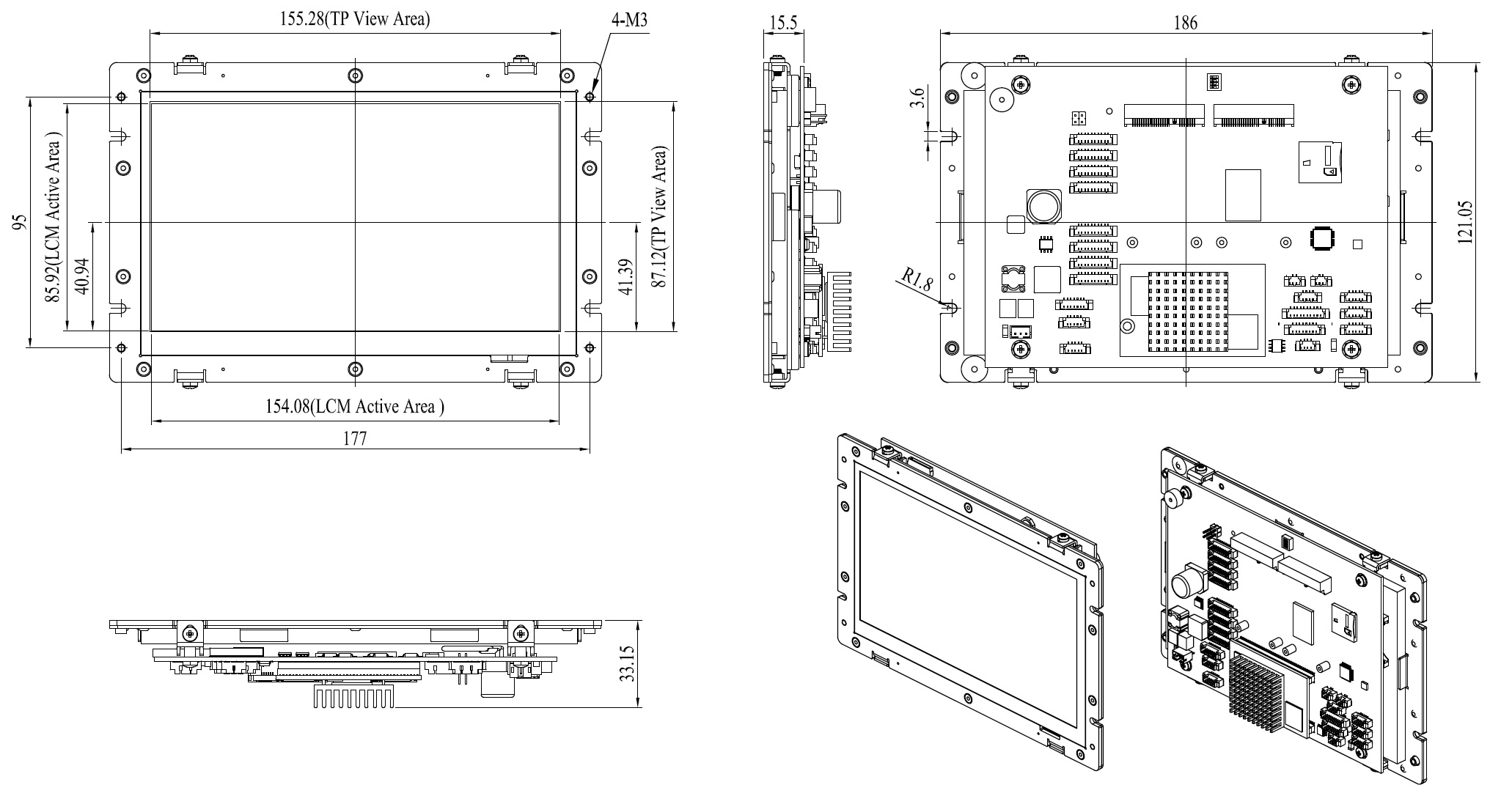

Dimensions:
