DM&P SoC Vortex86EX2- 600MHz
VEX2-6454

4S/2U/VGA/LCD/LVDS/LAN/LPT/Audio/16GPIO

  • x86/Vortex86EX2 600MHz
  • 512MB
  • 1GB
  • RS-232
  • RS-485
  • USB
  • LAN
  • LPT
  • Audio
  • GPIO
  • VGA
  • LCD
  • LVDS

Specifications

  • DM&P SoC Vortex86EX2- 600MHz

  • 512MB / 1GB DDR3 onboard

  • 4S/2U/VGA/LCD/LVDS/LAN/LPT/Audio/16GPIO

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

  • 16-bit x-ISA interface

  • Optional: Touch Controller

  • Optional: Onboard eMMC / MicroSD socket

Manual

Datasheet

Technical Resource

Processor DM&P Vortex86EX2 Processor 600MHz
RAM 512MB/1GB DDR3 Onboard
BIOS Core boot BIOS
Expansion ISA Bus x1 (Optional) MiniPCIe x1
Display Integrated 2D VGA chip with VGA and TFT Flat Panel Interface Support
VGA: resolution up to 1024 x 768 @ 60Hz
LCD: resolution up to 1024 x 768 @ 60Hz
LVDS: resolution up to 1024 x 768 @ 60Hz, single channel 24-bit
LAN Integrated 10/100Mbps Ethernet x1
Audio Realtek ALC262
Buzzer
Disk Support Micro SD Card/eMMC (Optional)
I/O Interface USB (ver2.0)x2
Parallel x1
COM x4 (2x RS232/485) (Optional)
PS/2 x2 (Optional)
16-bit GPIO port x1 (Optional)
4-wire touch x1 (Optional)
Connectors 2.0mm 8-pin header for LAN x1
2.0mm 2-pin header for Reset x1
Terminal block for Power input x1
2.0mm 10-pin box header for USB x1
2.0mm 44-pin box header for LCD x1
2.0mm 26-pin box header forParallel x1
2.0mm 10-pin box header for VGA x1
2.0mm 16-pin header for LVDS x1
2.54mm 4-pin header for Power output x1
2.54mm 5-pin header for Mouse x1 (Optional)
2.0mm 10-pin box header for COM x4 (Optional)
Standard PC/104 connector x1 (Optional)
2.54mm 5-pin header for Keyboard x1 (Optional)
2.0mm 10-header for 16-bit GPIO x1 (Optional)
Power Requirement 5VDC @ 660mA
Weight 86g
Dimensions 90 x 96mm
Operating Temp. -20°C to +70°C
-40°C to +85°C (Optional)
Operating System Support

Windows Embedded Compact 7
Windows Embedded CE6.0
DOS
QNX
Linux
Yocto 3.0/4.0
FreeBSD

PART NO. VEX2-6454-2C4IEE VEX2-6454-4C4EE VEX2-6450-2C3INE VEX2-6454-2C4INE VEX2-6454-4C4NE
CPU Speed 600MHz 600MHz 600MHz 600MHz 600MHz
DRAM(DDR3) 1GB 1GB 512MB 1GB 1GB
DiskSupport 4GBeMMC 4GBeMMC Micro SD Micro SD Micro SD
Display VGA LCD LVDS VGA LCD LVDS - VGA LCD LVDS VGA LCD LVDS
COM 2 4 2 2 4
USB(v2.0) 2 2 2 2 2
GPIO - 16 bits - - 16 bits
Parallel 1 1 1 1 1
PS/2 - 1 - - 1
Audio Lin-out
MIC-in
Lin-out
MIC-in
Lin-out
MIC-in
Lin-out
MIC-in
Lin-out
MIC-in
PC104 ISA 1 - 1 1 -
MiniPCIe 1 1 1 1 1

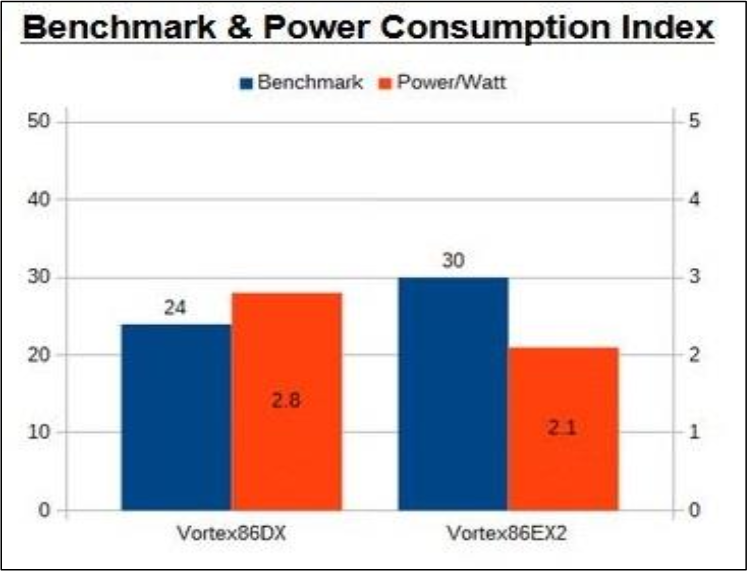

The Vortex86EX2 series is the new generation heterogeneous two core CPU which utilizes the Master and Slave cores to simultaneously run two different BIOSs & Operating Systems without affecting each other; equipped with various programmable I/ O; it's designed for real-time desired industrial/automation applications. Perfect Replacement Solution for Vortex86DX Platform.

Vorxtex86 Website: http://www.vortex86.com/





  1. CPU instruction upgrade
  2. DRAM from DDR2 to DDR3
  3. Manufacturing process from 90nm to 65nm



VEX2-6454is a solution of PC/104 based on the VEX2-DIP168 CPU module with PC/104 carrier board, which has lower power consumption and multiple I/O selections.
