DM&P SoC Vortex86DX3 - 1GHz
VDX3-6724

4S/4U/VGA/LCD/LVDS/GLAN/LAN/
LPT/Audio/16GPIO/SATA/CF(optional)

  • Vortex86DX3 1GHz
  • 1GB
  • 2GB
  • RS-232
  • RS-485
  • USB
  • GLAN
  • LAN
  • LPT
  • Audio
  • GPIO
  • CF
  • VGA
  • LCD
  • LVDS

Specifications

  • DM&P SoC Vortex86DX3 - 1GHz

  • 4S/4U/VGA/LCD/LVDS/GLAN/LAN/LPT/Audio/16GPIO/SATA/CF(optional)

  • 1GB / 2GB DDR3 onboard

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

  • PC/104 Connector Onboard

  • Optional: CF socket / Touch Controller / CH375 DOS USB Hot Swap

Manual

Datasheet

Technical Resource

Processor DM&P SoC CPU Vortex86DX3 - 1GHz
L1:32K I-Cache, 32K D-Cache
L2 Cache:512KB
RAM 1GB/2GB DDR3 Onboard
BIOS AMI BIOS
Bus PC/104 Standard Compliant
Display Integrated 2D VGA chip with dual display support (VGA + TTL /VGA + LVDS)
VGA: Maximum resolution up to 1920x1080 @ 60Hz
LVDS: Maximum resolution up to 1024x768 @ 60Hz
Single-channel 24-bit LVDS
LAN Integrated 10/100Mbps Ethernet x1
Realtek 81111F GbE x1
Disk Support SATA DOM
Compact Flash (Optional)
Onboard eMMC 512MB/4GB (Optional)
I/O Interface RS232 x4
USB (ver. 2.0) x4
Parallel x1
HD Audio
16-bit GPIO x1
PS/2 touch controller x1 (Optional)
DOS hot SWAP x1 (Optional)

Connectors 2.54mm 26-pin box header for Parallel x1
2.54mm 20-pin box header for GPIO x1
2.54mm 10-pin box header for USB x2
2.54mm 10-pin box header for RS232 x3
2.54mm 2-pin pin header for Reset x1
2.54mm 104-pin PC/104 connector x1
2.0mm 44-pin box header for LCD x1
2.0mm 20-pin pin header for LVDS x1
2.0mm 8-pin pin header for Ethernet x1
1.25mm 4-pin wafer connector for Line-out/MIC-in x2
7-pin SATA connector for SATA DOM x1
2-pin box header for DC +5V output x1
15-pin D-Sub female connector for VGA x1
9-pin D-Sub male connector for RS232 x1
Type I/IICompact Flash slot x1 (Optional)
Terminal block for DC input x1
PS/2 connector for Keyboard/Mouse x1
RJ45 connector for GbE x1
Power Requirement DC +5V @1000mA (Typical)
Operating Temp. -20°Cto +70°C(Single Core)
-10°Cto +60°C(Dual Core)
-40°Cto +85°C (Optional for Single Core)
-20°Cto +70°C(Optional for Dual Core)
Dimensions 184 x 122mm
Weight 180g
O/S Support Windows 7
Windows Embedded Compact 7
Windows XP Professional
Windows Embedded Standard 7
Windows Embedded CE6.0
Windows Embedded 2009
Linux
DOS
POS Ready (WePOS)
QNX
VxWorks
Free BSD
Part Number Product Description
VDX3-6724-1G Vortex86DX3 Half-Size CPU Module with 1GB DDR3
VDX3-6724-2G Vortex86DX3 Half-Size CPU Module with 2GB DDR3
VDX3-6724-2C-1G Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3
VDX3-6724-2C-2G Vortex86DX3 Half-Size Dual Core CPU Module with 2GB DDR3
VDX3-6724-CF-1G Vortex86DX3 Half-Size CPU Module with 1GB DDR3
with CF card slot
VDX3-6724-2C-CF-1G Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3
with CF card slot
VDX3-6724-CF-2G Vortex86DX3 Half-Size CPU Module with 2GB DDR3
with CF card slot
VDX3-6724-2C-CF-2G Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3
with CF card slot
CABLE-6724-SET GPIO (2.54) x1
RS-232 (2.54) x3
Audio Line x2
Printer (2.54) x1
USB (2.54) x2
NET 4x2 (2.0) x1
CABLE-6724-CF RS-232 (2.54) x3
Audio Line x2
USB (2.54) x2
NET 4x2 (2.0) x1
ICOP-0096 Vortex86 LVDS 18-bit Converter Kit for LCD Panel Display
CABLE-LVDS-30 18-Bit LVDS Cable

The VDX3-6724 is a low-power CPU module which compliant with ISA standard. It takes the advantage of Vortex86DX3 1GHz x86 CPU which integrates the SATA, I2C, VGA, LVDS, PS/2, USB, HD Audio, and even the 16-bit ISA bus support.

The VDX3-6724is designed as a plug-in replacement, with backward compatibility to support legacy software to help extend the existing product life cycle without heavy re-engineering.

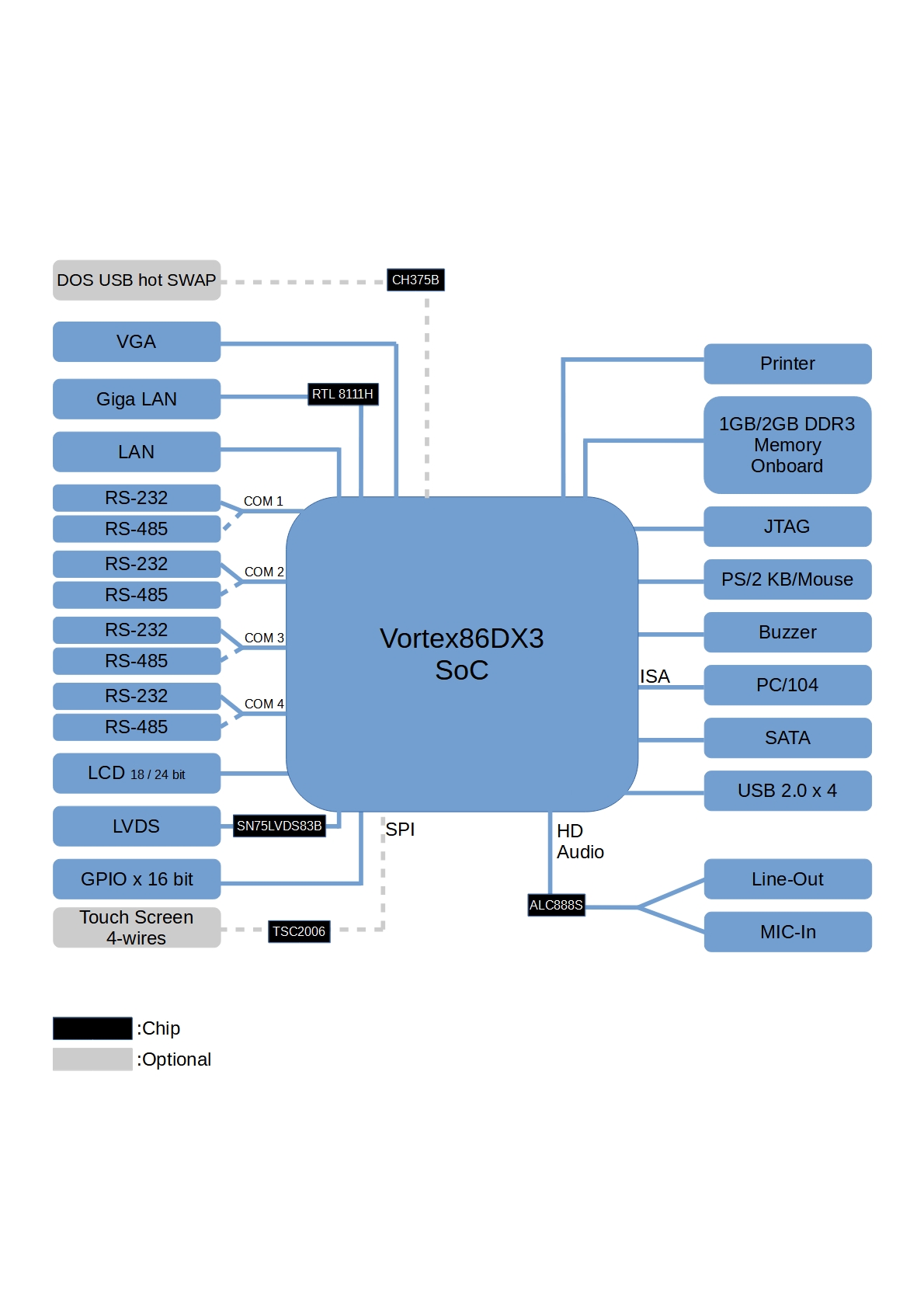

Block Diagram:
