DM&P SoC Vortex86DX- 800MHz
VDX-6328RD-NF

4S/3U/VGA/LCD/LVDS/LAN/PWM/Audio/16GPIO/CF

  • Vortex86DX 800MHz
  • 256MB
  • 512MB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • LAN
  • PWM
  • Audio
  • GPIO
  • VGA
  • LCD
  • LVDS

Specifications

  • DM&P SoC Vortex86DX- 800MHz

  • 256MB / 512MB DDR2 onboard

  • 4S/3U/VGA/LCD/LVDS/LAN/PWM/Audio/16GPIO/CF

  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)

  • Onboard 4MB SPI Flash Disk

  • PC/104+ Connector Onboard

Manual

Datasheet

Technical Resource

CPU DM&P SoC CPU Vortex86DX – 800MHz
L1:16K I-Cache, 16K D-Cache L2 Cache 128KB
RAM 256/512MB DDR2 Onboard
BIOS AMI BIOS
Bus PC/104+ Standard Compliant
Display XGI Volari Z9s Chipset with VGA, TFT-LCD, and 18-bit LVDS Flat Panel Interface Support
Onboard 32MB VGA Memory
VGA: Maximum resolution up to 1280 x 1024 @ 60Hz
LVDS/TTL-LCD: Maximum resolution up to 1024 x 768 @ 60Hz
LAN Integrated 10/100Mbps Ethernet x1
Disk Support IDE DoM Compact Flash Onboard 4MB SPI Flash Disk
SRAM Support 512KB (Optional)
I/O Interface RS232 x3
16-bit GPIO x1
RS232/422/485 x1
Audio
USB (Ver. 2.0)) x3
Parallel x1
Connectors 2.54mm 4-pin pin header for +12V, -12V, -5V, GND x1
2.54mm 104-pin PC/104 connector x1
2.0mm 44-pin box header for LCD x1
2.0mm 10-pin box header for RS232 x3
15-pin D-Sub female connector for VGA x1
Mini-DIN connector for Keyboard/Mouse x1
0.8nn 124-pin Mini PCI connector x 1 (Optional)
2.54mm 2-pin pin header for Reset x1
2.0mm 16-pin pin header for LVDS x1
2.0mm 26pin box header for Parallel x1
2.0mm 10-pin box header for USB x1
9-pin D-Sub female connector for RS232 x1
Type I/II Compact Flash Slot x1
2.54mm 3-pin pin header for RS485x1
2.0mm 44-pin box header for IDE x1
2.0mm 20-pin box header for 16-bit GPIO x1
1.25mm 4-pin wafer for Line-in/MIC-out x2
RJ45 connector for Ethernet x1
USB connector x1
Power Requirement DC +5V @ 840mA
Operating Temperature -20℃ - +70℃
-40℃ - +85℃ (Optional)
Dimension 102 x 146mm
Weight 150g
O/S Support Windows Embedded 2009
Linux
Free BSD
Windows Embedded CE6.0
DOS
VxWorks
Windows Embedded CE5.0
POS Ready (WePOS)

PART NO. CPU
(MHz)
DRAM
(DDR2)
Storage Display LAN RS232/RS485 USB Parallel GPIO PC/104+ Audio
VDX-6328RD-NF 800MHz 256MB IDE
4MB SPI CF
VGA
LVDS
TFT-LCD
1 3/1 3 1 16 1 MIC-in
Line-out
VDX-6328RD-NF-512 800MHz 512MB IDE
4MB SPI CF
VGA
LVDS
TFT-LCD
1 3/1 3 1 16 1 MIC-in
Line-out

Packing List:

Product Name Package
VDX-6328RD-NF
VDX-6328RD-NF-512
VDX-6328RD-NF board x1
RS232 cable x3
Parallel cable x1
IDE cable x1
GPIO cable x1
Audio line x2
USB cable x1

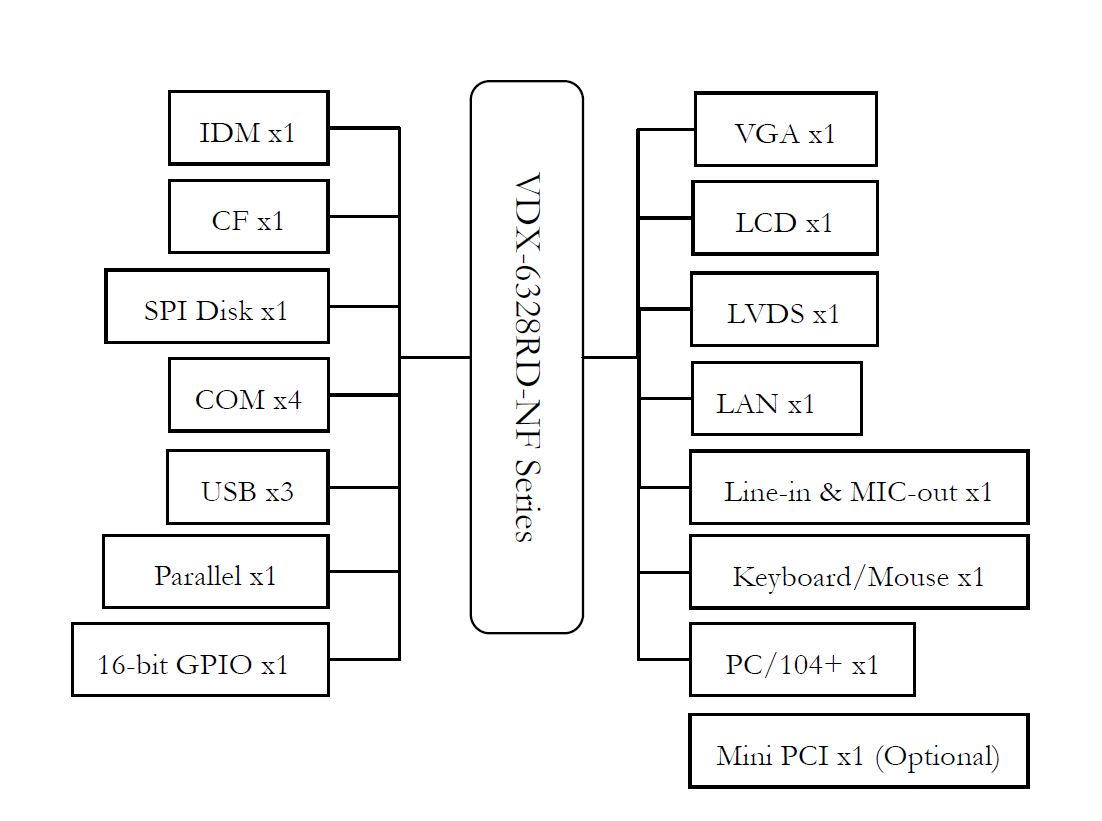

Block Diagram:

VDX-6328RD-NF_BlockDiagram
