Specifications
32-channel Digital Input
Load Voltage Rating Up to 56VDC
2500 Vrms Isolation Voltage Protection
Internal Monitoring Hardware Information
Support EtherCAT Distributed Clock (DC) Mode
EtherCAT Conformance test tool verified
Operating Temperature -20 to +70 °C

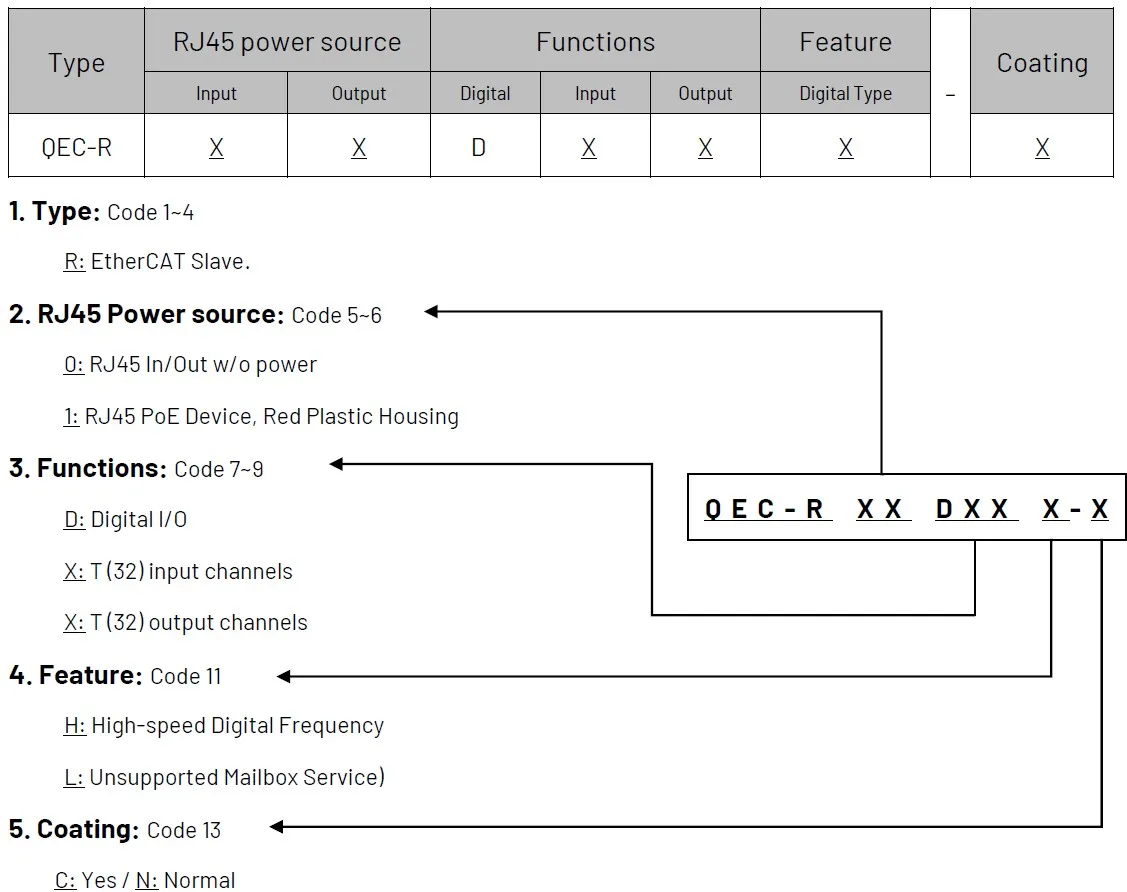

| Model Name | QEC-RXXDT0H | QEC-RXXDT0L |
| Channel | 32 | |
| I/O Type | Sink | |
| I/O Frequency | 8KHz | |
| Propagation delay time | 150ns | |
| Mailbox Service | Yes | No |
| Distributed Clocks | Yes | No |
| Digital Input | ||
| Load Voltage | Max. 56VDC | |
| General | ||
| Connector | 16-channel Push-in Terminal (Euroblock) | |
| Connector Color |
Positive: Red Negative: Black |
|
| Protocol | EtherCAT (RJ-45 x 2) | |
| Ethernet Standard | IEEE 802.3 | |
| Transmission Rate | 100Mbps | |
| Power Connector | 4-pin Power Input/Output & 2-pin FGND | |
| Power Requirement | +19 to +50VDC Power Input (Typ. +24VDC@100mA) | |
| Power Consumption | 3W | 2.4W |
| LED Indicator | PWR, RUN, LINK, ERROR, DI/O status | |
| Certifications | CE, FCC, VCCI | |
| Environment | ||
| Isolation Protection, Optocoupler | 2500 Vrms | |
| Operating Temperature | -20 to +70 °C | |
| Hardware | ||
| Dimension | 107.45 x 66 x 34mm (Without DIN-Rail) | |
| Weight | 245 g | 245 g |
| Installation | DIN rail | |
| Internal Monitoring | Yes | No |
ICOP’s QEC-RXXDTO and QEC-RXXD0T are standard industrial EtherCAT slave digital I/O modules that support 32 channels, which are optional for digital input and output channels. Complying with the EtherCAT Conformance Test Tool (ET9400), the QEC-RXXD_T is qualified and can cooperate with the EtherCAT master systems for quick implementation in industrial applications.
Capable of up to 100 µs EtherCAT cycle time, as well as the Distributed Clock (DC) mode, QEC-RXXD is aimed at high precision and synchronous applications requirements. Designed with up-to-date silicon components, it also reduces heat generation. It extends product life while providing automatic internal status monitoring, including voltage, current, and operating temperature and time, to help provide effective carbon footprint tracking.
The digital input of the QEC-RXXDT0 is equipped with various optional features, including polarity-separated digital input channel pins, input wire break detection lines, and up to 2500Vrms ESD isolation protection. And, the digital output of the QEC-RXXD0T has up to 3750Vrms of ESD isolation protection and can drive up to 56Vdc@20mA.
QEC-RXXD series offers users an easy way to update the firmware via FOE and features two networks available for EtherCAT Cable Redundancy. The module status can be indicated by LEDs for troubleshooting and verifying I/O status. It also provides flexible installation and efficient I/O channel configurations for connectivity, reducing infrastructure and operating costs, and can be deployed in network topologies such as star, line, or ring.
QEC-RXXD measures 107.45 x 77.4 x 30 mm and supports standard system operating temperatures from -20 to +70°C and optional -40 to +85°C. It can be easily installed by Din Rail mounting kit and features the European-style terminal block, providing easy installation and removable wiring terminals for easy deployment.
Dimensions:
