Specifications
DM&P Vortex86EX2 Processor 533MHz
1GB DDR3 onboard
3U/GLAN/LAN/Audio/12~50VDC
15-inch TFT 1024×600 Resolution LCD with Resistive touchscreen
Industrial Operating Temperature 0 to +60°C / -20 to +70°C (Option)
32MB SPI Flash & 2GB SLC eMMC as default <br/>(16GB eMMC Option)
CE/FCC/VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration
Wide power voltage input, DC +12~50V
86Duino Integrated Development Environment (IDE) Support
| CPU | DM&P Vortex86EX2 533MHz | |
| Memory | 1GB DDRIII Onboard | |
| Storage | 32MB SPI Flash & 2GB SLC eMMC / 16GB eMMC (Option) |
|
| LCD Display |
Type: XGA TFT-LCD Size: 15-inch Resolution (Pixel): 1024 (W) x 768 (H) Brightness: 400 cd/m2 Touch Screen Type: Analog Resistive |
|
| LAN |
1Gbps Ethernet RJ45 x1 10/100Mbps Ethernet RJ45 x1 |
|
| I/O Connector |
Power DC Input/Output Connector x1 USB (Type-C) x1 (Software programming for 86Duino IDE only) HD Audio x1 RJ45 x2 |
|

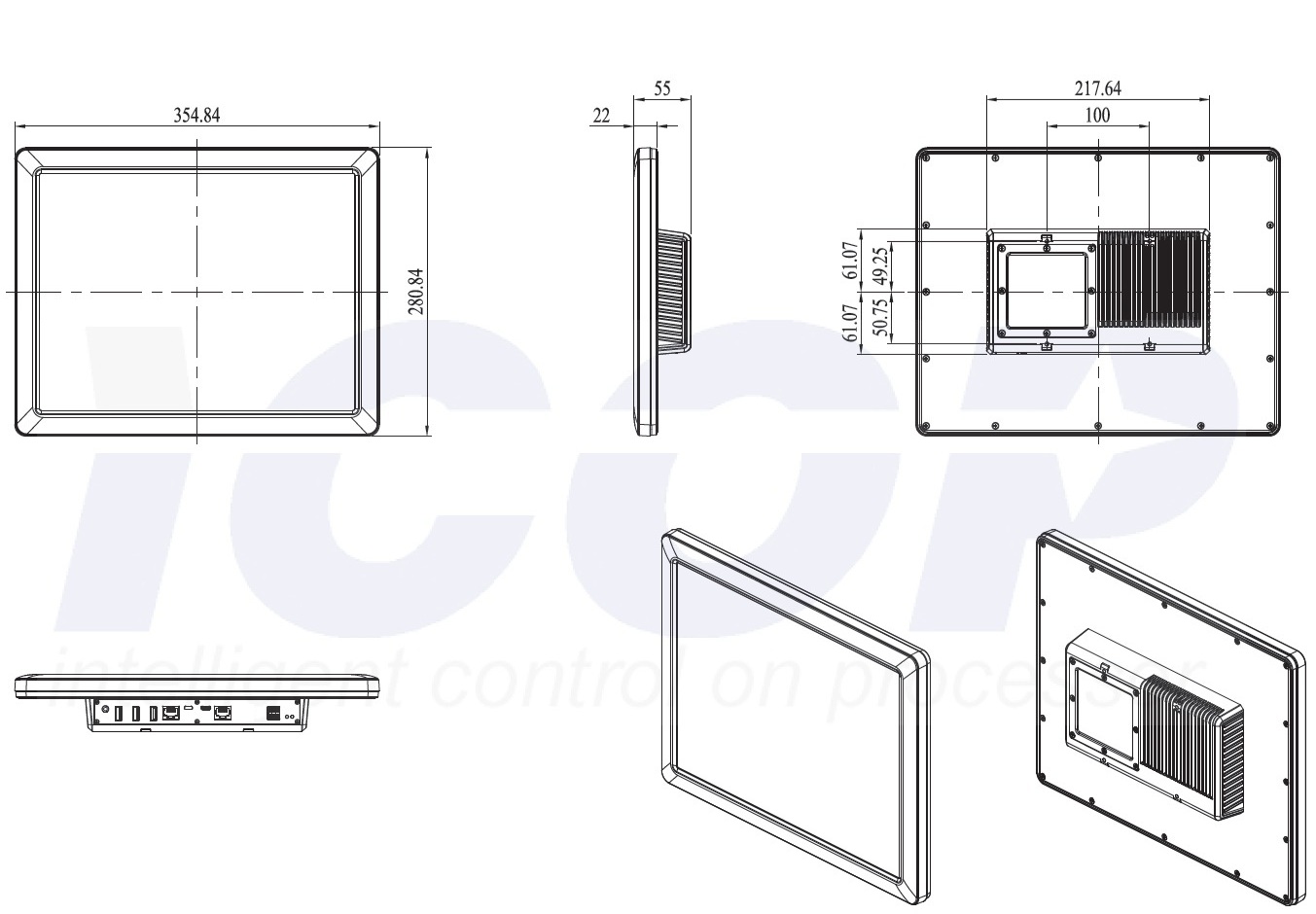

| Power Connector | 4-pin Power Input/Output & 2-pin FGND | |
| Power Requirement | +12 to +50VDC Power Input (Typ. +24VDC) | |
| Power Consumption | 9.6W | |
| Operating Temperature | 0 to +60°C/-20 to +70°C (Option) | |
| Dimension (W x H x D) mm |
354.84 x 280.84 x 55.00 | |
| Weight | 4,000 g | |
| Software Support | 86Duino Coding IDE (The environment is written in Java and based on Arduino IDE, Processing, DJGPP, and other open source software) / Linux |
|
| Cartificate | CE, UKCA, FCC, VCCI, Shock, Vibration, IP65 (Front Panel) | |
| Part Number | Description |
| QEC-PPC-M-150T-S | 15” Panel PC with DM&P Vortex86EX2, 1GB DDRIII Memory, 2GB SLC eMMC, 3x USB2.0, GLAN, LAN, Line-out & RTP |
| QEC-PPC-M-150T-S1 (BTO) | 15” Panel PC with DM&P Vortex86EX2, 1GB DDRIII Memory, 16GB eMMC, 3x USB2.0, GLAN, LAN, Line-out & RTP. |
ICOP’s QEC-PPC-M-150T-S is designed for real-time, reliable, and synchronized industrial HMI control. Each model integrates a high-resolution touch-enabled TFT LCD (15"), providing a rugged case and powerful control core within a compact system.
Efficient Development with 86Duino IDE
The development environment utilizes 86Duino IDE, an industrial Arduino-like platform that supports custom API, graphical programming tools, and high-level C/C++ programming, enabling rapid development while reducing hiring challenges and time to market.
Robust Storage, Reliable I/O, and Versatile Connectivity with Embedded form factor
Each model features a built-in 2GB SLC eMMC (or 16GB eMMC option), ensuring stable OS operation and offering ample storage for executables, HMI graphics, and application data. Files can be deployed via the 86Duino IDE. The IDE also integrates the LVGL graphics library, allowing developers to create modern and interactive touchscreen HMIs directly on this device. The rugged panel design (dimensions vary by model) supports flexible integration and customization for industrial use. Standard operating temperature is 0°C to +60°C, with an extended option from -20°C to +70°C. QEC-PPC-M-150T-S unit features one Giga LAN port, one 10/100Mbps LAN port, three USB2.0 ports, a USB programming port (for upload/debug), and HD Audio Line-out, which all can accessibly control via off-the-shelf Library.
