ICOP Technology Inc. - QEC-M-150T
cancel

EtherCAT MDevice
QEC-M-150T

QEC-M-150T

  • 15"
  • EtherCAT
  • x86/Vortex86EX2 600MHz
  • MicroUSB
  • RS-232
  • RS-485
  • USB
  • LAN
  • Audio
  • PoE

Specifications

  • EtherCAT MDevice Open-frame 15” LCD

  • Integrated EtherCAT MDevice on Real-time Dual-Core CPU

  • 86Duino Integrated Development Environment (IDE)

  • 15″ TFT LCD with Resistive Touchscreen (1024×768)

  • High Reliability SLC eMMC Storage with HDMI Output for HMI

  • Industrial Operating Temperature 0 to +50°C/-20 to +60°C (Option)

  • Rich Interfaces: 3×LAN, 3×USB, RS232/485, CAN, SPI, I2C, Arduino-Compatible GPIO

  • Built-in Voltage, Temperature, and System Status Monitoring

Manual

Datasheet

Technical Resource

CPU DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz
Memory 512MB/1GB DDRIII Onboard
Storage 32MB SPI Flash/2GB SLC eMMC
LCD Display 15-inch TFT 1024×768 Resolution LCD with Restive touchscreen
LAN

1Gbps Ethernet RJ45 x1 & 10/100Mbps Ethernet RJ45 x2 for EtherCAT

I/O Connector

2.54mm 2-pin header for Power Connector
1.25mm 4-pin wafer for Line-Out
Power DC Input/Output Connector x1
USB (Type-C) x1 (Upload/Debug only)
1.25mm 4-pin header for EXT I2C TFT Driver
VGA Connector (10-pin) x1
USB Host x3
RJ45 x3

Arduino Compatible Connector 2.54mm 10-pin female header for I2C0, MCM, GPIO
2.54mm 8-pin female header for MCM, GPIO, COM1(TTL)
2.54mm 8-pin female header for Power source
2.54mm 6-pin female header for ADC/GPIO
2.54mm 6-pin female header for CAN0 and CAN1 bus
2.54mm 6-pin female header for GPIO, VCC and GND
2.54mm 10-pin header for SPI, RESET-
2.54mm 10-pin header for SPI, RESET-, RS485
Protocol EtherCAT (EtherCAT Functions: PDO, CoE, FoE, DC, Cable-redundancy, etc.)
Modbus, Ethernet, CAN bus
Ethernet Standard IEEE 802.3
Control Cycle Time 125 µs (min.)
Power Connector 6-pin Power Input /Output
Power Requirement +12 to +50VDC Power Input (Typ. +24VDC)
LCD Display Power DCM-12V: Input 15~36Vdc and Output 12V@Max. 2.5A.
Power Consumption 14.1W
Operating Temperature 0 to +50°C/-20 to +60°C (Option)
Dimension 369 x 278 x 49.25mm
Weight 2.3 Kg
Internal Monitoring Temperature, Voltage, Current, Startup time
Software Support 86Duino Coding IDE
(The environment is written in Java and based on Arduino IDE, Processing, DJGPP, and other open source software)

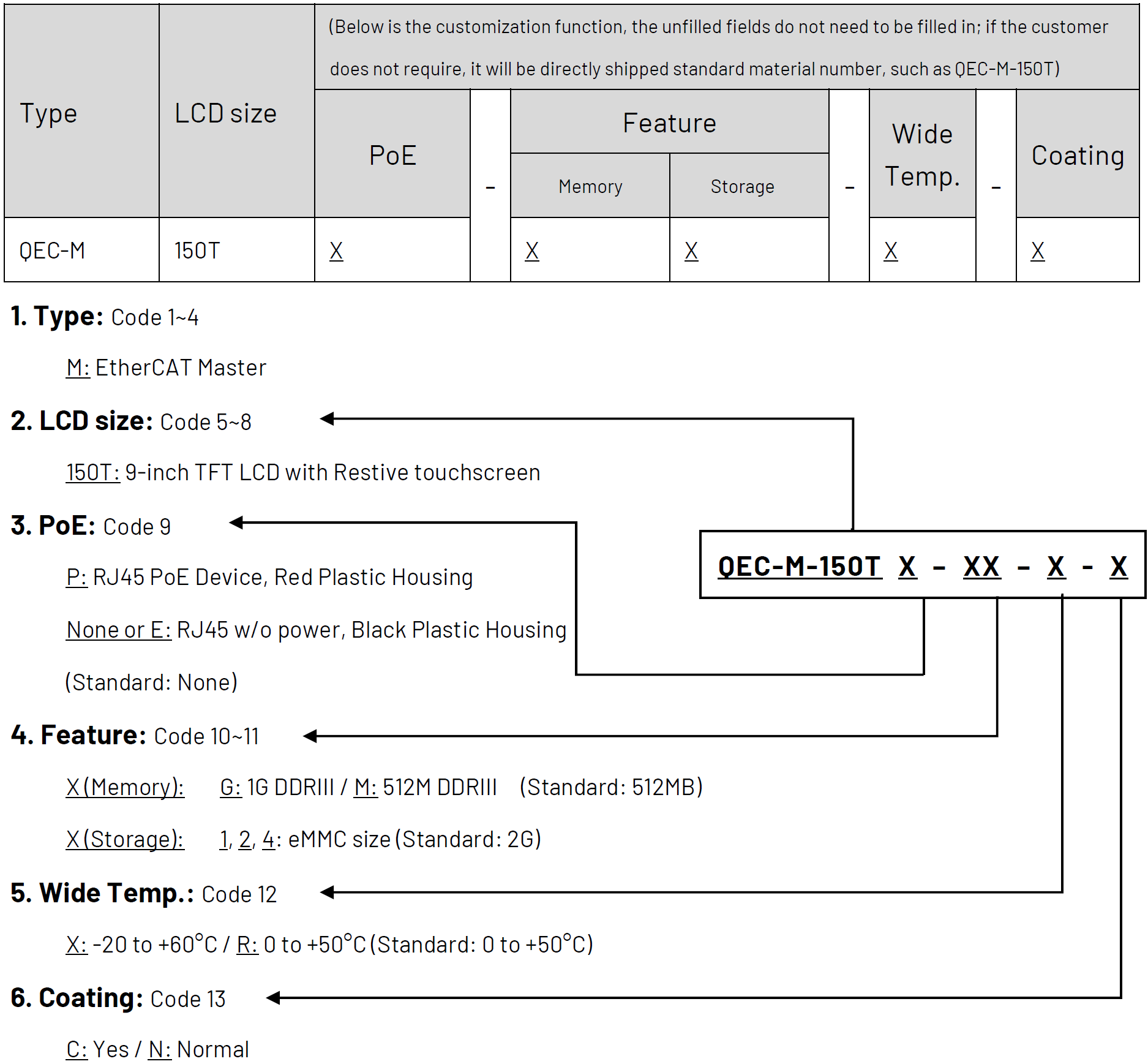

Type LCD Size PoE Feature Wide Temp. Coating
Memory Storage
QEC-M 150T X – X X – X – X
(Below is the customization function, the unfilled fields do not need to be filled in; if the customer does not require, it will be directly shipped standard material number, such as QEC-M-150T)



1. Type: Code 1~4
M: EtherCAT MDevice

2. LCD Size: Code 5~8
150T: 15-inch TFT LCD with Resistive Touchscreen

3. PoE: Code 9
P: RJ45 PoE Device, Red Plastic Housing
None or E: RJ45 w/o power, Black Plastic Housing (Standard: None)

4. Feature: Code 10~11
X (Memory): G: 1G DDRIII / M: 512M DDRIII (Standard: 512MB)
X (Storage): 1, 2, 4: eMMC size (Standard: 2G)

5. Wide Temp.: Code 12
X: -40 to +85°C / R: -20 to +70°C (Standard: -20 to +70°C)

6. Coating: Code 13
C: Yes / N: Normal


Ordering Part Number:
  • QEC-M-150T: Vortex86EX2 Processor 533MHz-based EtherCAT MDevice with 15-inch LCD
  • QEC-M-150TP: Vortex86EX2 Processor 533MHz-based EtherCAT MDevice with 15-inch LCD/PoE
  • QEC-M-150TP-G4-X-C: Vortex86EX2 Processor 533MHz-based EtherCAT MDevice with 15-inch LCD/PoE/1G DDRIII Memory/4G eMMC Storage/Wide Temp./Coating

QEC-M-150T is an EtherCAT MDevice with a real-time, reliable, and synchronous control equipped with a 15-inch TFT LCD. The industrial Arduino-like software makes it an easy-to-develop, stable, and economical automation system, allowing users to develop EtherCAT with UI quickly.

qecm150t-mg-1

The QEC MDevice is highly compatible with third-party EtherCAT devices for communication, such as servo, I/O, etc. To take full advantage of EtherCAT, it supports PDO, CoE, FoE, DC, and EtherCAT cable redundancy so that other EtherCAT SubDevices can be used flexibly. The QEC MDevice has precise synchronization (min.125μs), and its 86Duino IDE provides less than 1us jitter time in the minimum cycle time; it could apply to highly synchronized and precision automatic applications, like motion control and I/O control. (Read More: EtherCAT MDevice Benchmark)



QEC-M-150T has a built-in high endurance 2GB SLC eMMC, designed to provide a stable and reliable operating system. Users can upload the developed executable files and required images or data, such as HMI images, to the QEC-M-150T’s SLC via the 86Duino IDE without affecting the performance of the MDevice system. Besides, 86Duino IDE also integrates with the LVGL library to provide an advanced and intuitive approach to user interface design on QEC-M-150T.
QEC-M-150T can also monitor hardware information on temperature, voltage, and current. These features allow users to track the system’s carbon footprint and estimate its lifespan.

QEC-M-150T’s dimension is 369 x 278 x 49.25mm, with its open frame design for easy integration and customization. Operating temperature is from 0°C to +50°C, and with an extended option of -20 to +60°C, this EtherCAT MDevice remains steadfast even in the most challenging conditions. QEC-M-150T has two networks for EtherCAT Cable redundancy and one Giga LAN for external network connection. It also offers unrivaled connectivity, featuring 3 USB ports, VGA output, and full Arduino function Pins (GPIO, PWM, SPI, I2C, CAN, etc.); All provide an off-the-shelf API to use.



These interfaces open up a world of possibilities for integrating various devices and peripherals into your automation network, providing flexibility and adaptability for your unique requirements.

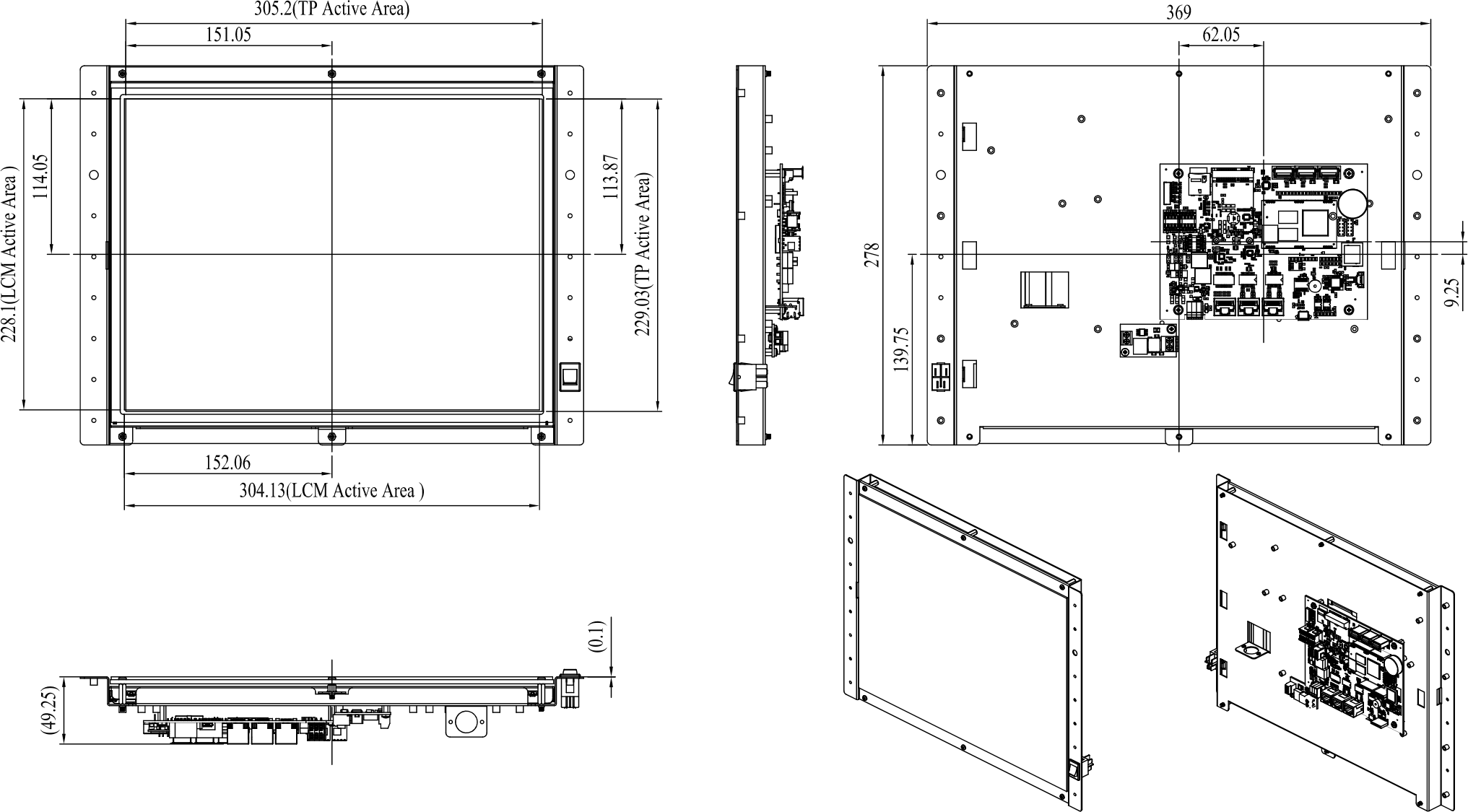

Dimensions:

qecm150t-1
