Specifications
EtherCAT MDevice Open-frame 7” LCD
Integrated EtherCAT MDevice on Real-time Dual-Core CPU
86Duino Integrated Development Environment (IDE)
7″ TFT LCD with Resistive Touchscreen (800×480)
High Reliability SLC eMMC Storage with HDMI Output for HMI
Industrial Operating Temperature -20 to +70°C / -30 to +85°C
Rich Interfaces: 3×LAN, 3×USB, RS232/485, CAN, SPI, I2C, Arduino-Compatible GPIO
Built-in Voltage, Temperature, and System Status Monitoring
| CPU | DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz | |
| Memory | 512MB/1GB DDRIII Onboard | |
| Storage | 32MB SPI Flash/2GB SLC eMMC | |
| LCD Display | 7-inch TFT 800×480 Resolution LCD with Restive touchscreen | |
| LAN |
1Gbps Ethernet RJ45 x1 10/100Mbps Ethernet RJ45 x2 for EtherCAT |
|
| I/O Connector | 2.54mm 2-pin header for Power Connector 1.25mm 4-pin wafer for Line-Out Power DC Input/Output Connector x1 USB Type-C x1 (Upload/Debug only) 1.25mm 4-pin header for EXT I2C TFT Driver VGA Connector (10-pin) x1 USB 2.0 Host x3 RJ45 x3 |
|
| Arduino Compatible Connector | 2.54mm 10-pin female header for I2C0, MCM, GPIO 2.54mm 8-pin female header for MCM, GPIO, COM1 (TTL) 2.54mm 8-pin female header for Power source 2.54mm 6-pin female header for ADC/GPIO 2.54mm 6-pin female header for CAN0 and CAN1 bus 2.54mm 6-pin female header for GPIO, VCC and GND 2.54mm 10-pin header for SPI, RESET- 2.54mm 10-pin header for SPI, RESET-, RS485 |
|
| Protocol | EtherCAT (EtherCAT Functions: PDO, CoE, FoE, DC, Cable-redundancy, etc.) Modbus, Ethernet, CAN bus |
|
| Ethernet Standard | IEEE 802.3 | |
| Control Cycle Time | 125 µs (min.) | |
| Power Connector | 6-pin Power Input /Output | |
| Power Requirement | +19 to +50VDC Power Input (Typ. +24VDC) | |
| Power Consumption | 8W | |
| Operating Temperature | -20 to +70°C/-40 to +85°C (Option) | |
| Dimension | 186 x 121.05 x 31.05 mm | |
| Weight | 520 g | |
| Internal Monitoring | Temperature, Voltage, Current | |
| Software Support | 86Duino Coding IDE 500+ (The environment is written in Java and based on Arduino IDE, Processing, DJGPP, and other open source software) |
|

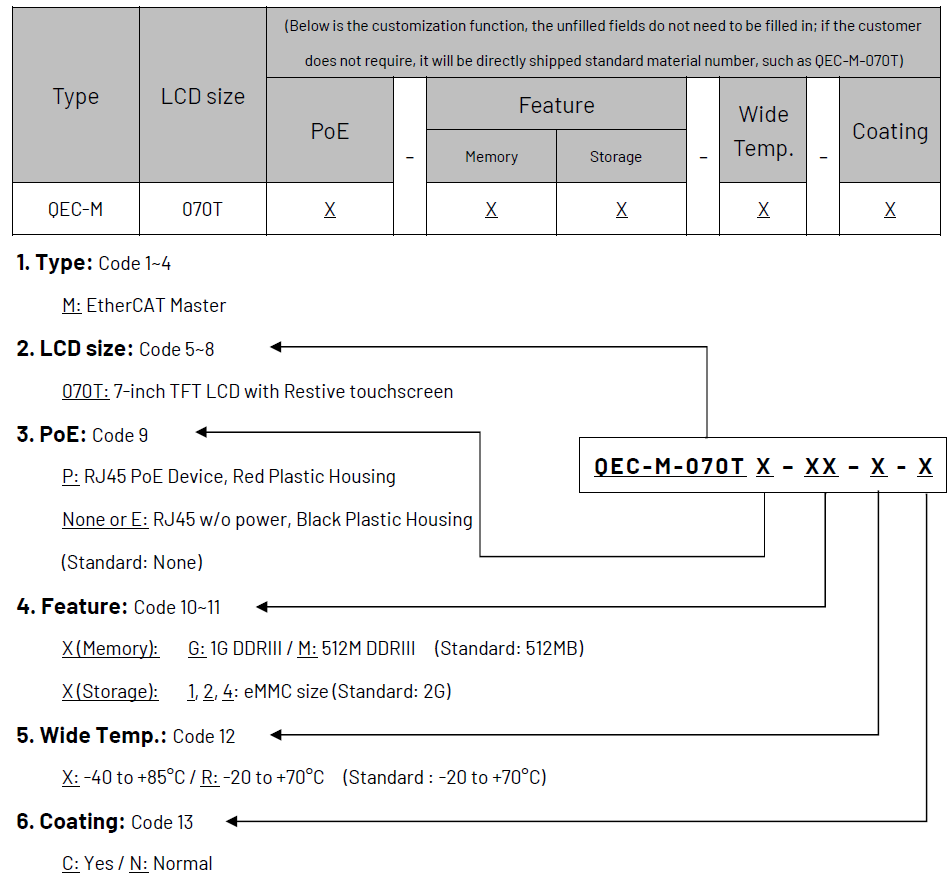

| Type | LCD Size | PoE | Feature | Wide Temp. | Coating | |
|---|---|---|---|---|---|---|
| Memory | Storage | |||||
| QEC-M | 070T | X | – X | X | – X | – X |
| (Below is the customization function, the unfilled fields do not need to be filled in; if the customer does not require, it will be directly shipped standard material number, such as QEC-M-070T) | ||||||
1. Type: Code 1~4
M: EtherCAT MDevice
2. LCD Size: Code 5~8
070T: 7-inch TFT LCD with Resistive Touchscreen
3. PoE: Code 9
P: RJ45 PoE Device, Red Plastic Housing
None or E: RJ45 w/o power, Black Plastic Housing (Standard: None)
4. Feature: Code 10~11
X (Memory): G: 1G DDRIII / M: 512M DDRIII (Standard: 512MB)
X (Storage): 1, 2, 4: eMMC size (Standard: 2G)
5. Wide Temp.: Code 12
X: -40 to +85°C / R: -20 to +70°C (Standard: -20 to +70°C)
6. Coating: Code 13
C: Yes / N: Normal
ICOP’s QEC-M-070T is an EtherCAT MDevice with a real-time, reliable, and synchronous control equipped with a 7-inch TFT LCD. The industrial Arduino-like software makes it an easy-to-develop, stable, and economical automation system, allowing users to develop EtherCAT with UI quickly.
The QEC MDevice is highly compatible with third-party EtherCAT devices for communication, such as servo, I/O, etc. It supports PDO, CoE, FoE, DC, and EtherCAT cable redundancy to use other EtherCAT SubDevices flexibly. The QEC MDevice has precise synchronization (min.125μs), and its 86Duino IDE provides less than 1us jitter time in the minimum cycle time; it could apply to highly synchronized and precision automatic applications, like motion control and I/O control. (Read More: EtherCAT MDevice Benchmark)
QEC-M-070T has a built-in high endurance 2GB SLC eMMC, designed to provide a stable and reliable operating system. Users can upload the developed executable files and required images or data, such as HMI images, to the QEC-M-070’s SLC via the 86Duino IDE without affecting the performance of the MDevice system. Besides, 86Duino IDE also integrates with the LVGL library to provide an advanced and intuitive approach to user interface design on QEC-M-070T.
QEC-M-070T can also monitor hardware information on temperature, voltage, and current. These features allow users to track the system’s carbon footprint and estimate its lifespan. QEC-M-070T’s dimension is 186 x 121.05 x 31.05 mm, with its open frame design for easy integration and customization. The operating temperature is from -20°C to +70°C, with an extended option of -40 to +85°C.
QEC-M-070T has two networks for EtherCAT Cable redundancy and one Giga LAN for external network connection. It also offers unrivaled connectivity, featuring 3 USB ports, VGA output slot, and full Arduino function Pins (GPIO, PWM, SPI, I2C, CAN, etc.); All provide an off-the-shelf API to use.

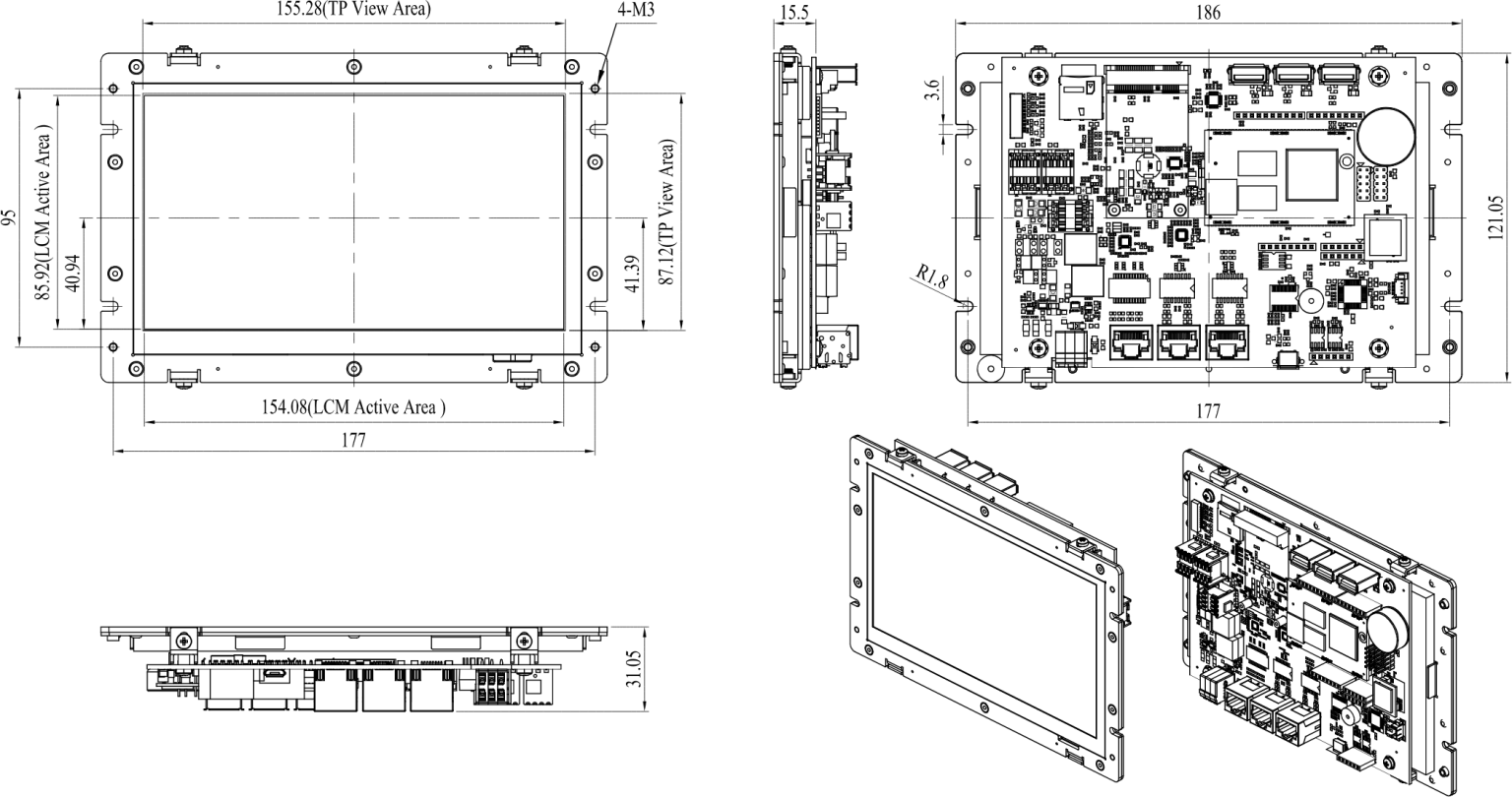

Dimensions:
