Specifications
DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz
EtherCAT MDevice Core runs on a dedicated CPU
Hardware/Software Real-time
86Duino Integrated Development Environment (IDE)
Up to 128 axes support, motion control
Internal Monitoring Hardware Information
Operating temperature -20 to +70°C/-40 to +85°C (Option)
3LAN/USB/MicroUSB/RS485/Audio
CPU | DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz | |
Memory | 512MB/1GB DDRIII Onboard | |
Storage | 32MB SPI Flash/2GB SLC eMMC | |
LAN | 1Gbps Ethernet RJ45 x1 10/100Mbps Ethernet RJ45 x2 for EtherCAT | |
I/O Connector | Power DC Input/Output Connector x1 USB 2.0 Host x1 Micro USB (Type-B) x1 (Upload/Debug only) |
Audio Connector x1 RS485 x1 RJ45 x3 |
Protocol | EtherCAT (EtherCAT Master Functions: PDO, CoE, FoE, EoE, DC, Cable-redundancy, etc.) | |
Ethernet Standard | IEEE 802.3 | |
Control Cycle Time | 125 µs (min.) | |
Power Connector | 6-pin Power Input /Output | |
Power Requirement | +19 to +50VDC Power Input (Typ. +24VDC) | |
Power Consumption | 5W | |
Operating Temperature | -20 to +70°C/-40 to +85°C (Option) | |
Dimension | 107.45 x 77.39 x 34 mm | |
Weight | 270 g | |
Mounting | DIN-Rail | |
Certifications | CE, FCC, VCCI | |
Internal Monitoring | Temperature, Voltage, Current | |
Software Support | 86Duino Coding IDE 500+ (The environment is written in Java and based on Arduino IDE, Processing, DJGPP, and other open-source software) |

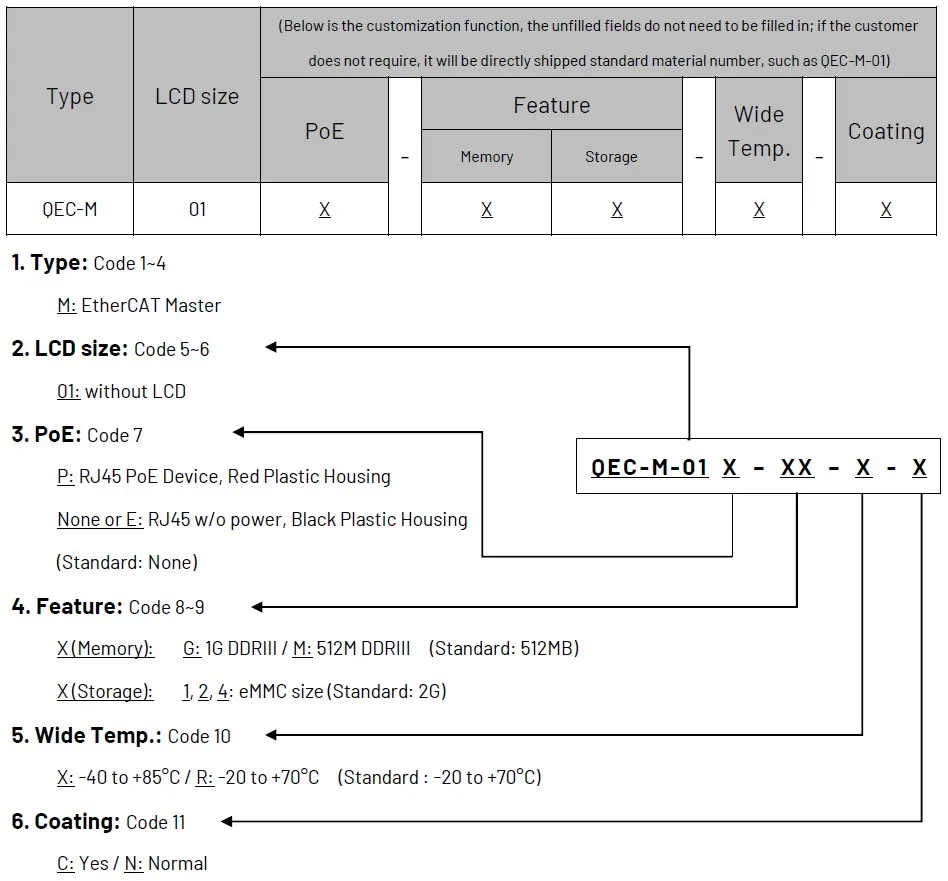

Ordering Part Number:
QEC-M-01 is an EtherCAT MainDevice with real-time, reliable, and synchronous control. And the industrial Arduino makes it an easy-to-develop, stable, and economical automation system, allowing users to develop EtherCAT quickly.
The QEC MainDevice is highly compatible with third-party EtherCAT devices for communication, such as servo, I/O, etc. For taking full advance of EtherCAT, It supports PDO, CoE, FoE, EoE, DC, and EtherCAT cable redundancy to use other EtherCAT SubDevice flexibly. The QEC MainDevice has precise synchronization (min.125μs), and its 86Duino IDE provides less than 1us jitter time in the minimum cycle time; it could apply to highly synchronized and precision automatic applications, like motion control and I/O control.
(Read More: EtherCAT Master’s Benchmark - QEC)
QEC-M-01 has a built-in high endurance 2GB SLC eMMC, designed to provide a stable and reliable operating system. Users can upload the developed executable files and required images or data, such as HMI images, to the QEC-M-01's SLC via the 86Duino IDE without affecting the performance of the master system.
QEC-M-01 can also monitor hardware information on temperature, voltage, and current. These features allow users to track the system's carbon footprint and estimate its lifespan.
QEC-M-01's dimension is 107.45 x 77.39 x 34 mm, could be mounted via Din-Rail. Operating temperature is from -20°C to +70°C; it can be placed directly in the field outdoors and ensures that the machine can work in harsh environments.
QEC-M-01 has two networks for EtherCAT Cable Redundancy, one Giga LAN for external network connection, RS485 signal pins, HD Audio, and USB; All provide an off-the-shelf API to use. Users can quickly collect data over EtherCAT and transfer data to a server via Giga LAN, and then big data can easily to constructed by MySQL Library.
In addition, users can connect their existing systems via RS485 signals, such as PLC or CNC.

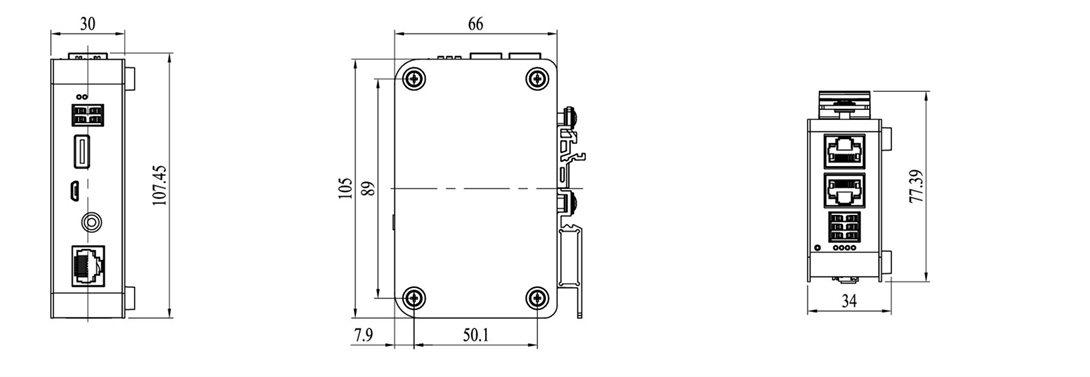

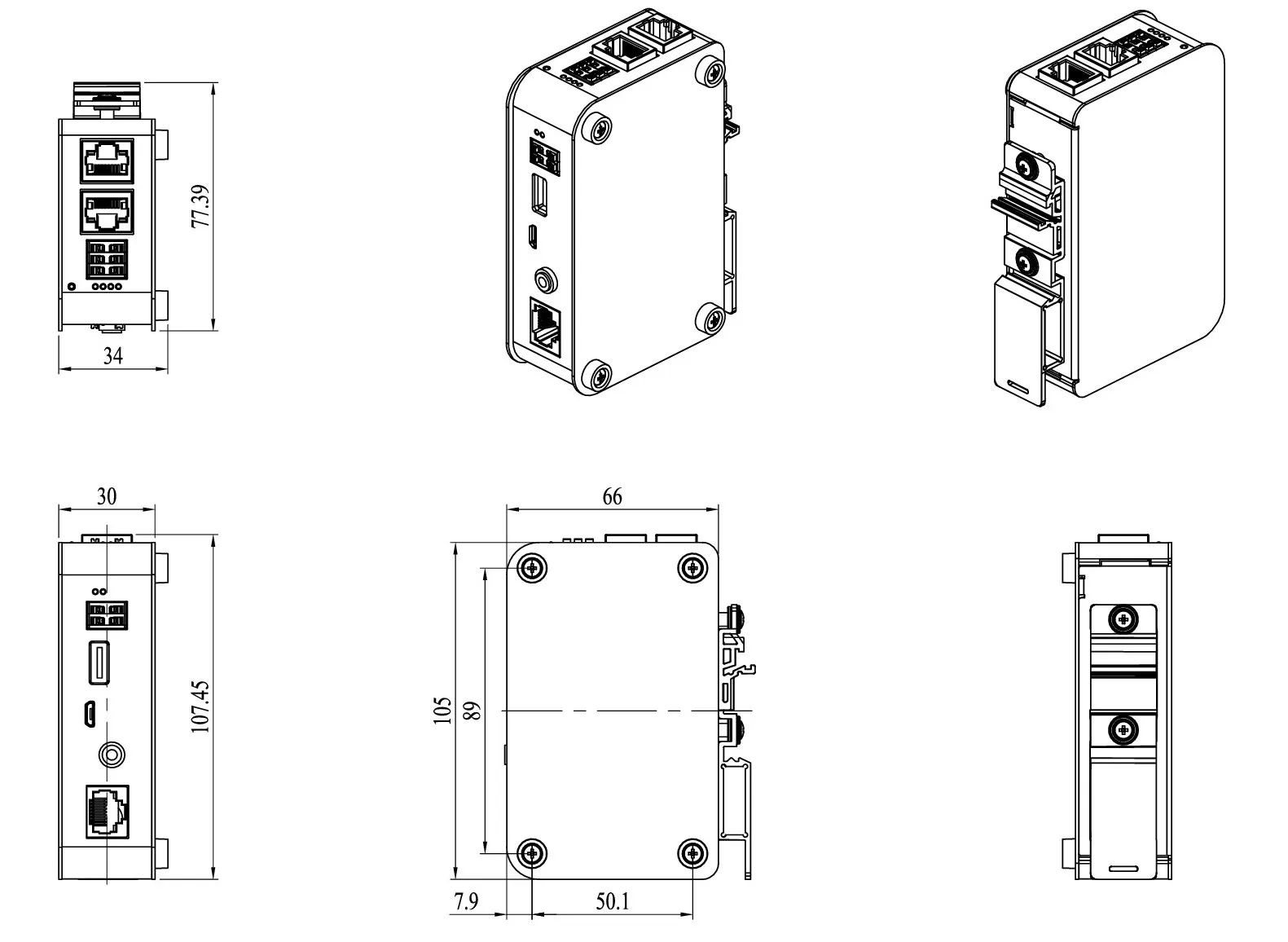

Dimensions:
