9" Resistive touch
RTD1195-1.2GHz Cortex-A7 ARM Dual-Core

PRTD-090T-8A

S/2U/LAN/Audio/mSD/8~35V/Android Pre-installed

  • 9"
  • Resistive
  • ARM/RTD1195 1.2GHz Cortex-A7
  • 1GB
  • 2GB
  • RS-232
  • USB
  • LAN
  • Audio
  • microSD
  • 8~35V

Specifications

  • RTD1195-1.2GHz Cortex-A7 ARM Dual-Core

  • 1GB / 2GB DDR3 onboard

  • S/2U/LAN/Audio/mSD/8~35V/Android Pre-installed

  • 9 inch TFT 1024x600 Resolution LCD with resistive touchscreen

  • Operation Temperature: 0 ~ +50°C / -20 ~ +60°C (Optional)

  • MicroSD socket onboard

  • CE/FCC/VCCI Certification, IP65 Front Panel Waterproof, Shock and Vibration

  • Onboard 8GB Flash Memory with Android Pre-installed

  • Otional: WLAN

Manual

Datasheet

Technical Resource

LCD
Display
Type WSVGA TFT-LCD
Size 9"
Resolution (Pixel) 1024(W) x 600(H)
Colors 262,144
View Angle Vertical 120°/Horizontal 140°
Brightness 300 cd/m2
Backlight life 20,000 hours
Contrast Ratio 500: 1
CPU RTD1195-1.2GHz Cortex-A7 ARM Dual-Core Processo
Cache 512KB L2 Cache
Memory 1GB / 2GB DDR3 Memory Onboard
Watchdog Timer Watchdog Timer count at a fixed 27MHz rate x 1
Serial Port RS-232 x 1
USB Ports USB 2.0 x1 , USB 3.0 x 1
Ethernet Integrated Gigabit Ethernet x 1
Audio Line-out x 1
Internal Drives Micro SD slot, 8GB Flash Memory onboard (Android Pre-install)
Touch Screen Type Analog Resistive
WLAN Support Wireless LAN & Bluetooth (Optional)
Power Requirement Mult Voltage +8~+35VDC ( 8A )
Power Consumption 10W (Max.)
Operatng Temperature 0~+60∘C (32~+140∘F) / -20~+70∘C (-4~+158∘F) Optona
Storage Temperature -30~ +70∘C (-22~+158∘F)
Operatng Humidity 0% ~ 90% Relatve Humidity, Non-Condensing
Operatng System Android 4.4.4
Dimensions 236.6x146x35mm (9.31x5.75x1.38 inches)
Weight 755g
Certficate CE / FCC / VCCI / Vibraton / Shock / IP65 (Front Panel)
PART NUMBER DESCRIPTION
PRTD-090T-8A-N4F 9” Panel PC w/1GB DDR3
/ 8GB eMMC / USB2.0 / USB3.0 / Line-Out / LAN / COM / MicroSD / 8-35 DC Support
PRTD-090T-8A-N5F 9” Panel PC w/2GB DDR3
/ 8GB eMMC / USB2.0 / USB3.0 / Line-Out / LAN / COM / MicroSD / 8-35 DC Support
PRTD-090T-8A-B4F 9” Panel PC w/1GB DDR3
/ 8GB eMMC / USB2.0 / USB3.0 / Line-Out / LAN / COM / MicroSD / Bluetooth & WLAN / 8-35 DC Support
PRTD-090T-8A-B5F 9” Panel PC w/2GB DDR3
/ 8GB eMMC / USB2.0 / USB3.0 / Line-Out / LAN / COM / MicroSD / Bluetooth & WLAN / 8-35 DC Support

PRTD-090T is an ultra-compact platform for the present demanding embedded and productive applications. It has an RTD1195 Cortex-A7 ARM Dual-Core which consumes only minimum power requirements when running at 1.2GHz, and DDR3 memory provides a faster data transfer rate. By using a 9” TFT LCD, PRTD-090T becomes the perfect choice for a limited budget. In addition, the integrated Gigabit Ethernet port supplies the communication capability, which makes PRTD-090T can be more widely used when running Android 4.4.4 environments to become the perfect solution for system integration.

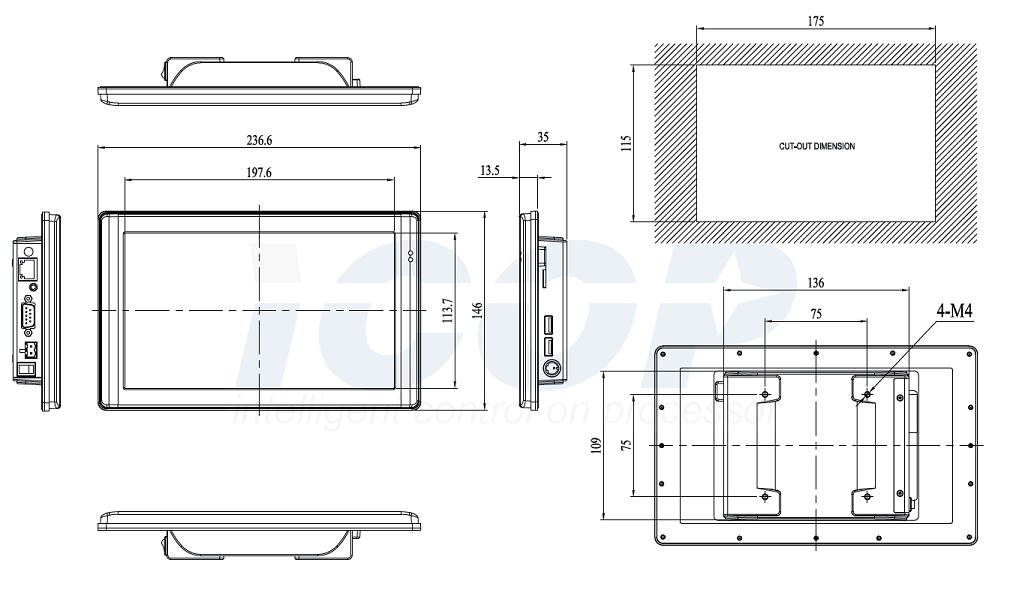

Dimensions:
