Specifications
Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz)
8GB / 16GB / 32GB / 64GB SO-DIMM DDR5
4S/6U/2HDM/2DPI/2.5GLAN/GLAN/Audio/M.2/12~24V Power Adapter
10.4 inch TFT 800x600 Resolution LCD with resistive touchscreen
Operation Temperature: 0 ~ +60°C / -20 ~ +60°C (Option)
HDMI 2.0b x2 (Max 4096x2160@60Hz) & DP 1.4 x2 (Max. 4096 x 2304@60Hz)
M.2 M-key (2242/2280) PCIe Gen.4 Support NVME SSD (Doesn’t Support SATA Interface)
M.2 E-key (2230) USB2.0/PCIe *1 interface (CNVi Supported)
Intel® i226-V 2.5GbE & i219-LM 1.0GbE
| LCD Display |
Type | SVGA TFT-LCD | |
| Size | 10.4" | ||
| Resolution (Pixel) | 800 x 600 | ||
| Brightness | 500 cd/m2 | ||
| Backlight life | 50,000 hours | ||
| Touch Screen Type | Analog Resistive (Standard) | ||
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) | ||
| System RAM | 8GB / 16GB / 32GB / 64GB DDR4 Memory | ||
| BIOS | AMI BIOS | ||
| Expansion | M.2 E-key (2230) USB2.0/PCIe *1 interface (CNVi Supported) | ||
| Display | HDMI 2.0b x2 (Max 4096x2160@60Hz) & DP 1.4 x2 (Max. 4096 x 2304@60Hz) | ||
| Ethernet | Intel® i226-V 2.5GbE x1 & Intel® i219-LM 1.0GbE x1 | ||
| Audio | HD Audio Realtak ALC888S | ||
| Disk Support | M.2 M-key (2242/2280) PCIe Gen.4 Support NVME SSD (Doesn’t Support SATA Interface) | ||
| Serial Ports | RS232/422/485 x2 (COM1&2) | RS232 x2 (COM3&4) | |
| USB Ports | USB3.2 (Gen2) x4 | USB2.0 x2 | |
| Power Requirement | +12~+24V Power Adapter Only | ||
| Operating Temperature | 0°C to +60°C / -20˚C to +60˚C (Option) | ||
| Storage Temperature | -30°C to + 70°C | ||
| Dimensions (W x H x D) mm | 273.4 x 219.8 x 84.7 mm | ||
| OS Support | Windows 10 & Windows 11 (64-bit) Linux |
||
| Part Number | Description |
| PPC-104T-TGL-8G | PPC-104T-TGL Series with Intel® Tiger Lake i5-1135G7, 8GB DDR4 Memory, 4S, 2.5GLAN, GLAN and Resistive Touch |
| PPC-104T-TGL-16G | PPC-104T-TGL Series with Intel® Tiger Lake i5-1135G7, 16GB DDR4 Memory, 4S, 2.5GLAN, GLAN and Resistive Touch |
| PPC-104T-TGL-32G | PPC-104T-TGL Series with Intel® Tiger Lake i5-1135G7, 32GB DDR4 Memory, 4S, 2.5GLAN, GLAN and Resistive Touch |
| PPC-104T-TGL-64G | PPC-104T-TGL Series with Intel® Tiger Lake i5-1135G7, 64GB DDR4 Memory, 4S, 2.5GLAN, GLAN and Resistive Touch |
| POWER-90W-TGL | AC – DC power adapter / DC12V @ 7.5A (AC 100 ~ 240V Input) |
| POWERCABLE(A) / (G) / (EU) /(AU) |
US / EU / UK / AU & NZ power cord for POWER-12V3.34A-MW |
| VESA-MT-PPC-TGL-SET | VESA mount bracket set |
ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-104T-TGL is powered by Intel® Tiger Lake i5-1135G7 SoC Processor and 8GB / 16GB / 32GB / 64GB SO-DIMM DDR4 module that handles processing more efficiently and provides faster performance. The project capacity touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.
The new PPC-104T-TGL inherited the PPC series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. The versatile I/O ports, IP65 front panel, 2.5 GbE high-speed Ethernet, etc., can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption, and fanless design.
The PPC-104T-EHL supports Windows 10, Windows 10 IoT, Windows 11, and Linux to meet ready-to-market demand and provide competitive advantages for customers.

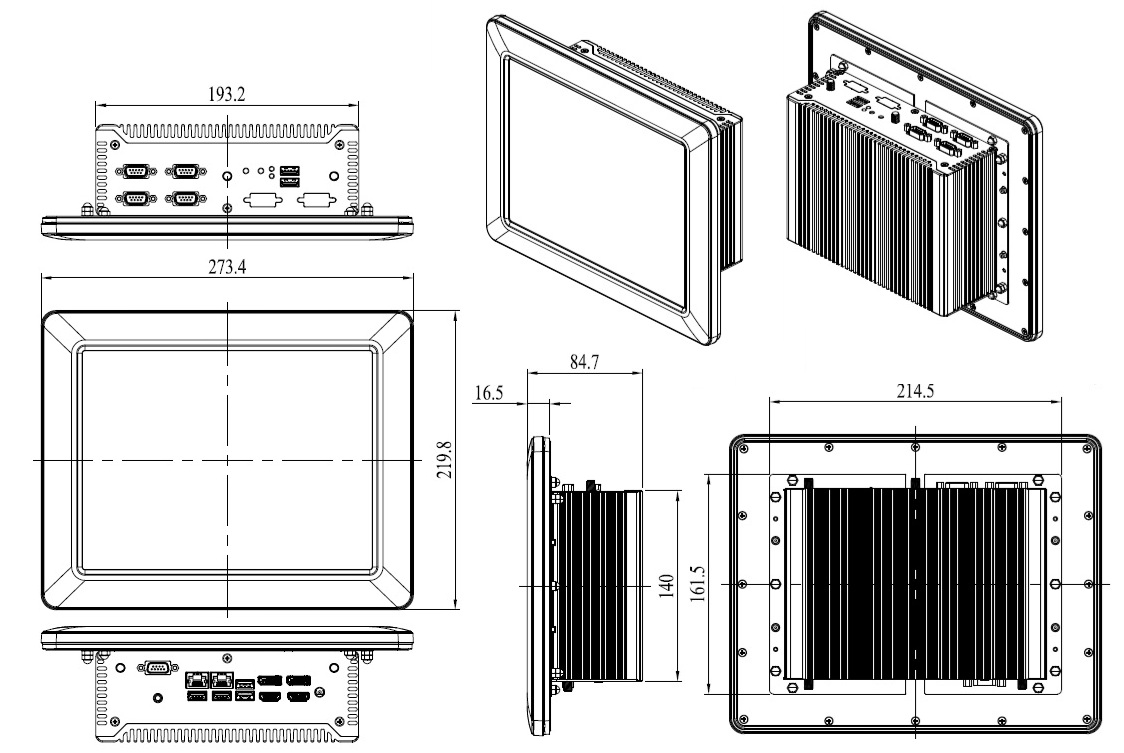

Dimensions:
