Specifications
Intel® Apollo Lake N4200/N3350 SoC Processor
4GB / 8GB SO-DIMM DDR3
2S/3U/HDMI/GLAN/Audio/M.2-2242/SATA/MiniPCIe/12V
9" TFT 1024x600 Resolution LCD with Resistive or Projected Capacitive touch screen
Operation Temperature: 0 ~ +60°C
HDMI as second display
2.5 inch SATA HDD/SSD Support (SATA III 6.0Gb/s)
M.2 Slot Support (M-key, SATA interface, 2242)
| LCD Display |
Type | WSVGA TFT-LCD | |
| Size | 9" | ||
| Resolution (Pixel) | 1024 x 600 | ||
| Brightness | 300 cd/m2 | ||
| Backlight life | 20,000 hours | ||
| Touch Screen Type | Analog Resistive (Standard) / Projected Capacitive Touch Panel (Option) | ||
| Processor | Intel® Apollo Lake N4200 Processor (Quad core Burst 2.5GHz) / Option for N3350 (Dual core) Processor | ||
| System RAM | 4GB/8GB DDR3L Memory | ||
| BIOS | AMI BIOS | ||
| Expansion | MiniPCIe Slot x1 SIM Card Holder x1 |
||
| Display | Intel® HD Graphics HDMI 1.4 (As Dual Display) |
||
| Ethernet | Integrated 10/100/1000Mbps Ethernet | ||
| Audio | HD Audio Realtek ALC662VD | ||
| Disk Support | 2.5” SATA HDD/SSD Support (SATA III 6.0Gb/s) M.2 Slot Support (M-Key, SATA Interface, 2242) |
||
| Serial Ports | RS232/422/485 x1 (COM1) | RS232 x1 (COM2) | |
| USB Ports | USB3.0 x2 | USB2.0 x1 | |
| Power Requirement | AC – DC Adapter/DC12V @ 3.3A (AC 90 ~ 240V Input) | ||
| Operating Temperature | 0°C to +60°C | ||
| Storage Temperature | -20°C to + 70°C | ||
| Dimensions (W x H x D) mm | 242.02 x 156.52 x 50.55 | ||
| OS Support | Windows 10 (64-bit) Linux |
||
| Certificate | CE FCC VCCI Shock Vibration IP65 (Front Panel) |
||
| Part Number | Description |
| ☛PPC-090T-APL-N4-4G | PPC-090T-APL Series with Intel® Apollo Lake N4200 Processor (Quad Core) and 4GB of DDR3L Memory |
| PPC-090T-APL-N4-8G | PPC-090T-APL Series with Intel® Apollo Lake N4200 Processor (Quad Core) and 8GB of DDR3L Memory |
| PPC-090T-APL-N3-4G | PPC-090T-APL Series with Intel® Apollo Lake N3350 Processor (Dual Core) and 4GB of DDR3L Memory |
| PPC-090T-APL-N3-8G | PPC-090T-APL Series with Intel® Apollo Lake N3350 Processor (Dual Core) and 8GB of DDR3L Memory |
| PPC-090T-APL-PN4-4G | PPC-090T-APL Series with Intel® Apollo Lake N3350 Processor (Dual Core), projected capacitive touch, and 4GB of DDR3L Memory |
| PPC-090T-APL-PN4-8G | PPC-090T-APL Series with Intel® Apollo Lake N3350 Processor (Dual Core), projected capacitive touch, and 8GB of DDR3L Memory |
| PPC-090T-APL-PN3-4G | PPC-090T-APL Series with Intel® Apollo Lake N3350 Processor (Dual Core), projected capacitive touch, and 4GB of DDR3L Memory |
| PPC-090T-APL-PN3-8G | PPC-090T-APL Series with Intel® Apollo Lake N3350 Processor (Dual Core), projected capacitive touch, and 8GB of DDR3L Memory |
| POWER-12V3.34A-MW | AC – DC power adapter / DC12V @ 3.34A (AC 90 ~ 240V Input) |
| POWERCABLE(A) / (G) / (EU) /(AU) |
US / EU / UK / AU & NZ power cord for POWER-12V3.34A-MW |
| VESA-MT-PPC-APL-SET | VESA mount bracket set |
| PANEL-MT-PPC-APL-SET | Panel mount set with clamps and screws |
ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-090T-APL is powered by Intel® Apollo Lake N4200/N3350 processor and 4GB / 8GB SO-DIMM DDR3L module that handles processing more efficiently and provides faster performance. The project capacity touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design are perfect for the present demanding embedded and productive applications.
The new PPC-090T-APL inherited the PPC series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. The versatile I/O ports, IP65 front panel, GIGA high-speed Ethernet, etc., can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption, and fanless design. The expandable customize I/O ports can be accommodated connectivity requirements to industrial machine platforms and industrial automation equipment’s needs.
The PPC-090T-APL supports Windows 10, Windows 10 IoT, and Linux to meet ready-to-market demand and provide competitive advantages for customers.

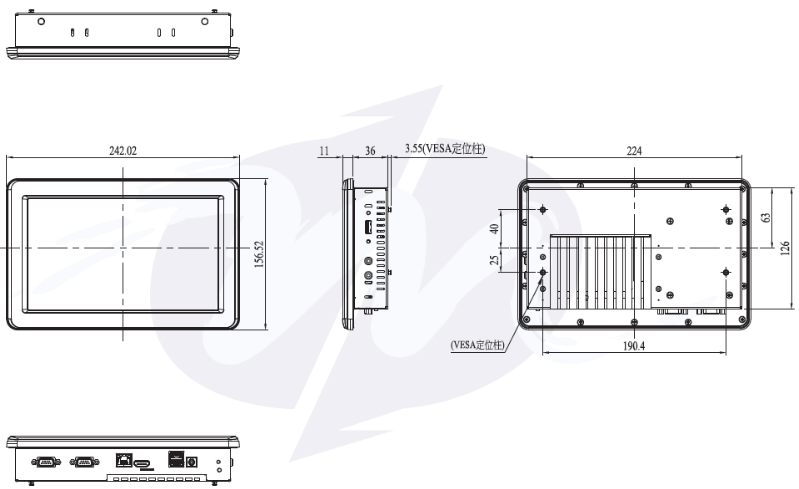

Dimensions:
