Specifications
Intel® Alder Lake N50 Processor (Dual core & up to 3.40GHz)
8GB / 16GB SO-DIMM DDR5

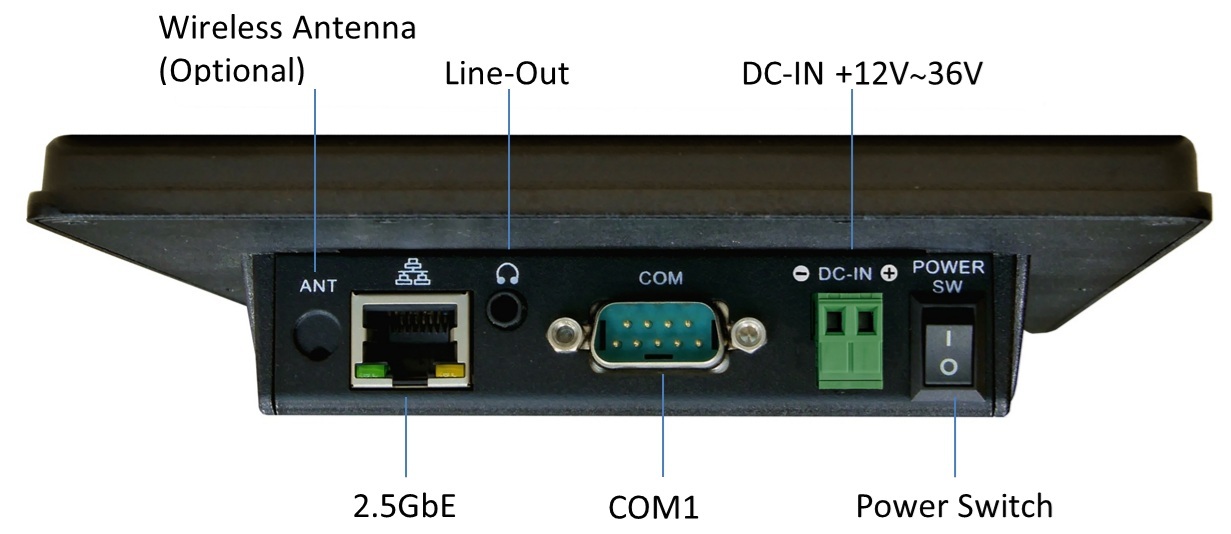

S/2U/GLAN/Audio/M.2-2242/MiniPCIe/12~36V
9" TFT 1024x600 Resolution LCD with Resistive or Capacitive touch screen
Operation Temperature: 0 ~ +60°C
M.2 M-key (2242) PCIe Gen.3 /SATA interface support NVME
M.2 E-key (2230) USB2.0/PCIe Gen.3 *1 interface (CNVi Supported)
Intel® i226-V 2.5GbE & USB3.2 Gen.1 x2
Wide power voltage input, +12~36VDC
| LCD Display |
Type | WSVGA TFT-LCD | |
| Size | 9" | ||
| Resolution (Pixel) | 1024 x 600 | ||
| Brightness | 300 cd/m2 | ||
| Backlight life | 20,000 hours | ||
| Touch Screen Type | Analog Resistive (Standard) / Projected Capacitive Touch Panel (Option) | ||
| Processor | Intel® Alder Lake N50 Processor (Dual core & up to 3.40GHz) | ||
| System RAM | 8GB / 16GB DDR5 Memory | ||
| BIOS | AMI BIOS | ||
| Expansion | M.2 E-key (2230) USB2.0/PCIe Gen.3 *1 interface (CNVi Supported) | ||
| Ethernet | Intel® i226-V 2.5GbE x1 | ||
| Audio | HD Audio, Realtak ALC897 | ||
| Disk Support | M.2 M-key (2242) PCIe Gen.3 /SATA interface support NVME | ||
| Serial Ports | COM port (RS232/485/422) | ||

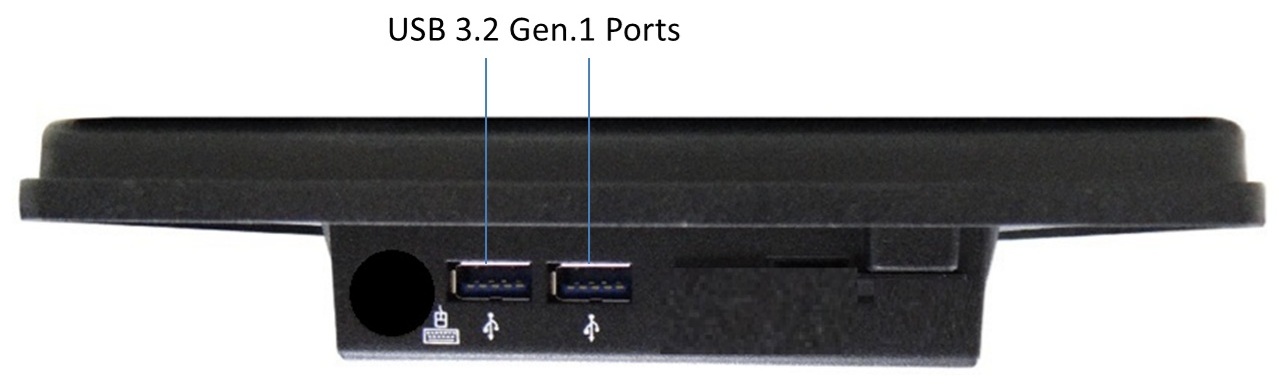

| USB Ports | USB3.2 Gen.1 x2 | ||
| Power Requirement | +12V ~ +36VDC power input by terminal block | ||
| Operating Temperature | 0°C to +60°C | ||
| Storage Temperature | -30°C to + 80°C | ||
| Dimensions (W x H x D) mm | 236.6 x 146 x 35 | ||
| OS Support | Windows 11 (64-bit), Windows 10 (64-bit), Linux | ||
| Certificate (Underway) |
CE |
||
| Part Number | Description |
| PALD-090T-N50-8G | PALD-090T Series with Intel® Alder Lake N50 Processor, 8GB DDR5, Resistive Touch and DC12~36V Power input |
| PALD-090T-N50-16G | PALD-090T Series with Intel® Alder Lake N50 Processor, 16GB DDR5, Resistive Touch and DC12~36V Power input |
| PALD-090T-PN50-8G | PALD-090T Series with Intel® Alder Lake N50 Processor, 8GB DDR5, PCAP Touch and DC12~36V Power input |
| PALD-090T-PN50-16G | PALD-090T Series with Intel® Alder Lake N50 Processor, 16GB DDR5, PCAP Touch and DC12~36V Power input |
| WLAN KIT (Option) | M.2 E-Key JWW6051 802.11ac/a/b/g/n Module, with wireless Antenna and cable |
The Intel® Alder Lake N-series Processor is the next-generation embedded processor platform, supporting modern operating systems and delivering superior performance, energy efficiency, and system stability.
ICOP’s new 9” PALD-090T adopts the Intel® Alder Lake N50 processor (Dual Core, up to 3.40GHz) with high computing performance, low power consumption, and robust system reliability and security. Designed for seamless upgrades, it continues to use the ruggedized aluminum cast body with 100% mechanical compatibility with existing 9” PMX/PDX2/PDX3/PBSW/PN8M models. It also features IP65 front panel waterproof protection and a fanless design for long-term industrial deployment.
For global application adaptability, the PALD-090T supports a wide power input range of +12V~36VDC, and meets 30G mechanical shock and 20m/s² vibration certifications. It supports panel mount or VESA mount installation, and offers Windows 11/10 (64-bit) and Linux OS support. Pre-installed Windows 10/11 IoT services are also available upon request.
For more info, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
