Specifications
Mini-PCIe to four RS232 card
Support Windows and Linux
Operating temperature -40 ~ +85℃
| Form Factor | Full size Mini PCI-E module |
| Input Interface | PCI Express 2.0 Gen 1 |
| Output I/O Function | RS232 x4 |
| Driver | Windows & Linux |
| Power Requirement | 3.3V |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -55°C ~ +95°C |
| Dimension | 50.80 x 30.00 x 9.75mm |
| Weight | 7.6g |
| PART NO. | Description |
| MINIPCIE-4S | MiniPCIe Module with 4 * RS-232 functions and cables |

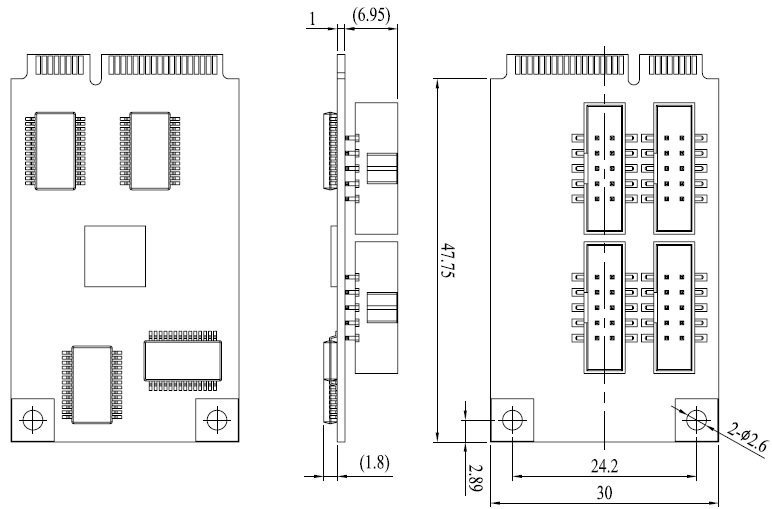

unit: mm
