Specifications
Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz)
DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
2.5GbE up to 3, 1.0GbE x1, SATA III
HDMI x2, DP x2 support up to 4 simultaneous 4K HDR Displays
M.2 Slots: M.2 M-key x1, M.2 E-key x1
COM1/COM2 RS232/422/485, COM3/COM4 RS232, COM5~8 RS485/422
DC +12~24V Power adapter only (2.5ø)
Operation Temperature: -20 ~ +60°C
| Model type | EBOX-TGL-35G7 | |
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) | |
| Memory | DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB | |
| BIOS | AMI BIOS | |
| Storage |
M.2 M-key x1 (2242/2280), PCIe Gen.4 support NVMe SSD SATAIII x1 (2.5” SATA SSD, SATA DOM, SLIM DOM) |
|
| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe interface (CNVi supported) WLAN/BT | |
| Display |
Intel® HD Graphics, shared memory HDMI 2.0b x2 (Max. 4096x2160@60Hz) DP 1.4 x2 (Max. 4096x2304@60Hz) Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP)) |
|
| Ethernet |
Intel® i219-LM 1.0GbE x1 Intel® i226 2.5GbE x3 |
|
| Audio | HD Audio Realtek ALC888S-VD2 | |
| Front I/O |
Power button x1/Reset button x1/Power LED x1 /SSD LED x1/USB 2.0 x2 |
COM1/COM2 RS232/422/485, COM3/COM4 RS232, COM5~8 RS485/422 + RJ45 x2 |
| Rear I/O | USB 3.2 (Gen2) x4/RJ45 x2/HDMI x2/DP x2/Mic-in & Line -out Combo x1/GPIO x1 | |
| Power Requirement | DC +12~24V Power adapter only (2.5ø) | |
| Power Adapter | +12V7.5A (90W) | |
| Operating Temperature | -20~+60°C | |
| Storage Temperature | -30~+70°C | |
| Dimension | 193.2 x 140 x 67mm | |
| Mounting | VESA 100 x 100mm | |
| Net Weight | 2.2 kgs | |
| Certifications |
CE, UKCA, FCC, VCCI |
|
| OS Support | Windows 11 & IoT Windows 10 & IoT Linux |
|
Order Information
| Part Number | Description |
| EBOX-TGL-1135U | Intel® Tiger Lake i5-1135G7 Fanless Box PC w/ COM x4, LAN x2 |
| EBOX-TGL-1135U-C6 | Intel® Tiger Lake i5-1135G7 Fanless Box PC w/ COM x6, LAN x2 |
| EBOX-TGL-1135U-MUX8 | Intel® Tiger Lake i5-1135G7 Fanless Box PC w/ COM x8, LAN x2 |
| EBOX-TGL-1135U-L4 | Intel® Tiger Lake i5-1135G7 Fanless Box PC w/ COM x4, LAN x4 |
| POWER-90W-TGL | AC-DC power adapter DC12V@7.5A (AC 100~240V Input) (Optional) |
| POWERCABLE(A)(G)(EN)(AU) | Power cord US/EU/UK/AU&NZ types (Optional) |
| CASE-35-VESA | VESA Rack (Optional) |
The EBOX-TGL Series features the Intel® Tiger Lake i5-1135G7 processor, offering quad-core performance at 2.4GHz. With support for up to 64GB of DDR4 3200MHz RAM, it excels in multitasking and data handling. This compact system includes dual M.2 slots for PCIe Gen.4 NVMe SSDs and wireless expansion, along with Intel® HD Graphics capable of driving up to four 4K HDR displays. It provides robust networking with 1.0GbE and 2.5GbE Ethernet ports and high-definition audio via Realtek ALC888S-VD2. Operating on DC +12~24V power, the EBOX-TGL Series supports Windows 10, Windows 11 (64-bit), and Linux, making it an ideal solution for various industrial and commercial applications.

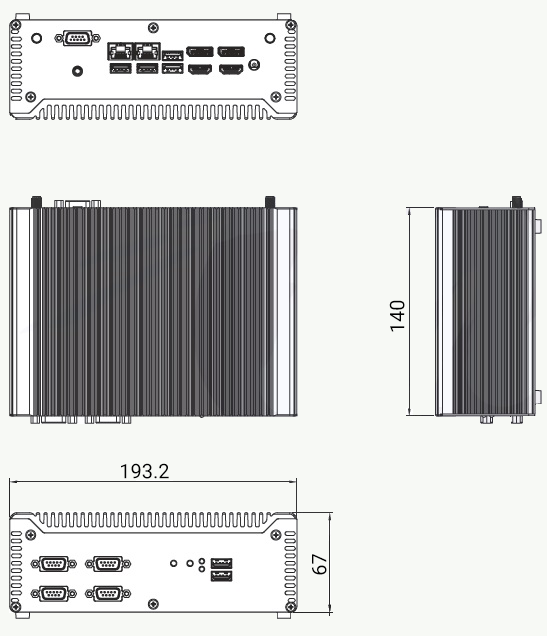

Appearance Diagram:
