Specifications
Intel® 13th Gen Core™ i5-1335U up to 4.6GHz
DDR5 4800MHz Dual Channel SO-DIMM up to 64GB
8S/5U/GPIO/SATA III/2HDMI/2DP/Type-C DP/Up to 4x 2.5GbE Ports
Support up to 4 simultaneous 4K HDR Displays
M.2 Slots: M/E/B+M/B-Key, Nano SIM onboard
COM1/COM2 RS232/422/485, COM3/COM4 RS232, COM5~8 RS485/422
DC input +12~36V power adapter, Lockable DC Jack (option)
External Nano SIM (option)
Operating Temperature -20~+50°C
| Processor | Intel® 13th Gen Core™ i5-1335U up to 4.6GHz | |
| System RAM | 2 x DDR5 4800MHz, Dual Channel SO-DIMM, up to 64GB | |
| BIOS | AMI UEFI BIOS | |
| Storage |
M.2 M-key x1 (2242/2280), PCIe Gen.4 support NVMe SSD SATAIII x1 (2.5” SATA SSD, SATA DOM, SLIM DOM) |
|
| Expansion |
M.2 E-key x1 (2230) USB2.0/PCIe interface support CNVi x1 M.2 B-key 3042/3052 (USB 3.2) for 4G/5G/LTE x1 or B+M-key 2242 (SATA III/PCIe 3.0 x1) for SSD x1 |
|
| Display |
Intel® Iris® Xe Graphics HDMI 2.0b x2 (Max. 4096x2160@60Hz, HDR10 supported) DP1.4 x2 (Max. 4096x2160@60Hz, HDR10 supported) Type-C DP 1.4 x1 (Max. 4096x2160@60Hz, HDR10 supported) Supports up to 4 simultaneous 4K HDR displays |
|
| Ethernet |
Intel® i226V 2.5GbE x1 Intel® i226LM 2.5GbE x3 |
|
| Audio | Realtek HD Combo Audio x1 | |
| SIM | Nano SIM x1 | |
| Front I/O | Power button x1/Reset button x1/Power LED x1/SSD LED x1/USB 2.0 x2 | COM1/COM2 RS232/422/485, COM3/COM4 RS232, COM5~8 RS485/422 |
| Rear I/O | USB 3.2 (Gen2) x3/USB3.2 Gen 2 Type-C x1 support DP ALT mode & PD 5V/3A | HDMI x2/DP x2/ RJ45 x2/Mic-in & Line -out Combo x1/ 8-bit GPIO x1 |
| Power Requirement | DC in +12~36V Power adapter only | |
| Power Adapter | +12V7.5A (90W) | |
| Operating Temperature | -20~+50°C | |
| Storage Temperature | -30~+70°C | |
| Dimension | 193.2 x 140 x 67mm | |
| Net Weight | 2.2kgs | |
| Certifications |
CE |
|
| OS Support | Windows 11 & IoT Windows 10 & IoT Linux |
|
Order Information
| Part Number | Description |
| EBOX-RTL-1135U | Intel® Core™ i5-1335U Fanless Box PC w/ COM x4, LAN x2 |
| EBOX-RTL-1135U-C6 | Intel® Core™ i5-1335U Fanless Box PC w/ COM x6, LAN x2 |
| EBOX-RTL-1135U-MUX8 | Intel® Core™ i5-1335U Fanless Box PC w/ COM x8, LAN x2 |
| EBOX-RTL-1135U-L4 | Intel® Core™ i5-1335U Fanless Box PC w/ COM x4, LAN x4 |
| POWER-90W-TGL | AC-DC power adapter DC12V@7.5A (AC 100~240V Input) (Optional) |
| POWERCABLE (A) (G) (EN) (AU) | Power cord US/EU/UK/AU&NZ types (Optional) |
| CASE-35-VESA | VESA Rack (Optional) |
High-performance embedded computer powered by 13th Gen Intel® Core™ i5-1335U processor, delivering up to 4.6GHz computing power. Supports dual-channel DDR5 4800MHz memory up to 64GB for enhanced bandwidth. Offers multiple display outputs—HDMI, DP, and USB Type-C DP—supporting up to four simultaneous 4K HDR displays. Equipped with rich I/O including 2.5GbE LAN, RS232/422/485, SATA III, GPIO, and versatile M.2 slots with Nano SIM support. Designed for industrial applications with wide voltage input (12~36V) and operating temperature range of -20°C to +50°C.

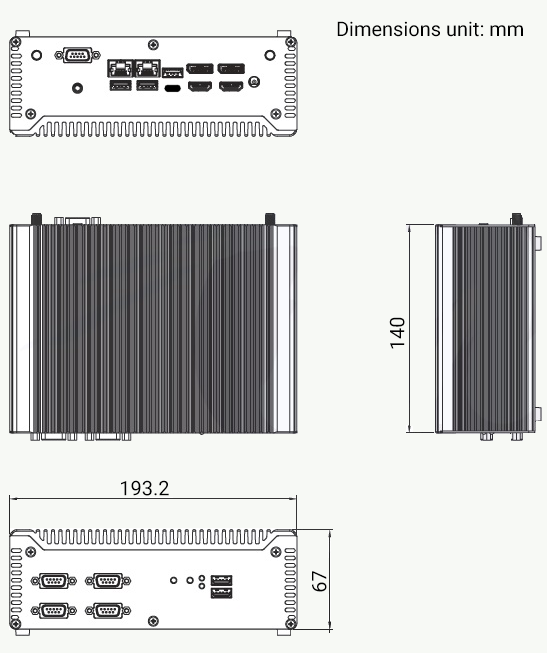

Appearance Diagram:
