Specifications
Intel® Braswell x5-E8000 1.04GHz Quad Core
SO-DIMM 8GB DDR3L
2S/4U/2GLAN/Mic-in/Line-out/HDMI/SATA/M.2/mSD
Operation Temperature: 0 ~ +60°C
RS-232/RS-485/TTL(Optional)
TPM
DIN Rail Support (Optional)
Auto Power On
PXE diskless boot
100x100mm VESA standard
AMI UEFI BIOS (Legacy mode switchable)
| Processor | Intel® Atom® x5-E8000 Quad Core 1.04GHz, 2.00GHz (Burst) | |
| BIOS | AMI UEFI BIOS | |
| Memory | SO-DIMM, DDR3L‐1600MHz up to 8GB | |
| Storage | SATA | SATA Gen3 x1, SATA SLIM 7+15 pin internal |
| Micro SD | Micro SD Slot x1 (Micro SD, SDXC) | |
| Display | HDMI V1.4b (MAX. 3840 × 2160 pixels) | |
| USB | USB V3.0 x4 (Front x2, Rear x2) | |
| HD Audio | Realtek ALC262VD Mic-in & Line-out | |
| Ethernet | Realtek RTL8111H GBE x2, RJ45 x2 | |
| COM | DB9 RS-232 x2/RS-485 x2/TTL (Optional) | |
| Extension I/F | M.2 2230 E Key x1 (WiFi/BT Module use) | |
| Power requirement | DC +12V | |
| Dimension | 115 x 115 x 35mm | |
| Mounting | VESA 100 x 100mm/DIN Rail Support (Optional) | |
| New Weight | 510g | |
| Operating Temp | 0~60℃ | |
| Security Support | TPM 2.0, Infineon SLB9665VQ2.0 (Optional) | |
| Certifications | CE FCC VCCI |
|
| OS support | Window 10 Windows 10 IoT Linux |
|
Order Information:
| Model Type | CPU | — | LAN | COM | TPM | — | Auto Power On |
| EB-58 | E: | — | L2: | C2: | F: | — | AP: |
| E8000 | LAN x2 | RS-232 x2 | Excluded | Support | |||
| N: | — | L1: | F4: | T: | |||
| N3160 | LAN x1 | RS-485 x2 | Included | ||||
| NN: | |||||||
| None |
Memory:
| Memory | ||
| D3L-SODIMM-4G | — | 4GB DDR3LRAM |
| D3L-SODIMM-8G | — | 8GB DDR3LRAM |
WiFi/BT Module:
| Part Number |
| DGF109A WIRELESS-CABLE-MHF4 WIRELESS-ANTENNA-DB |
SATA DOM
| Product Name |
| SDM-SST-SLIM(M)32G ISATA-SLIM(M)-64G ISATA-SLIM(I)-64G |
EBOX-58 Series industrial fanless PC integrates an Intel® Braswell E8000 or N3160 series processor.
Supports memory up to 8GB DDR3L, Dual Giga LAN ports, two RS-232/RS-485 ports, etc. A suitable platform for IoT, M2M, Industry 4.0, Home Automation Security, Point-of-sales, Public transportation, and many more.
EBOX-58 Series can be attached to any VESA mounting fixture, allowing it to be securely mounted onto desks, walls, or buildings, thereby optimizing your work area. It can also attach directly to any size LCD monitor for trade shows, presentations, promotions, etc. With FANLESS design, it’s ideal to be used in an environment where temperature demand is critical.
EBOX-58 Series supports Windows 10, Windows 10 IoT, and Linux to meet ready-to-market demand and provide competitive advantages.

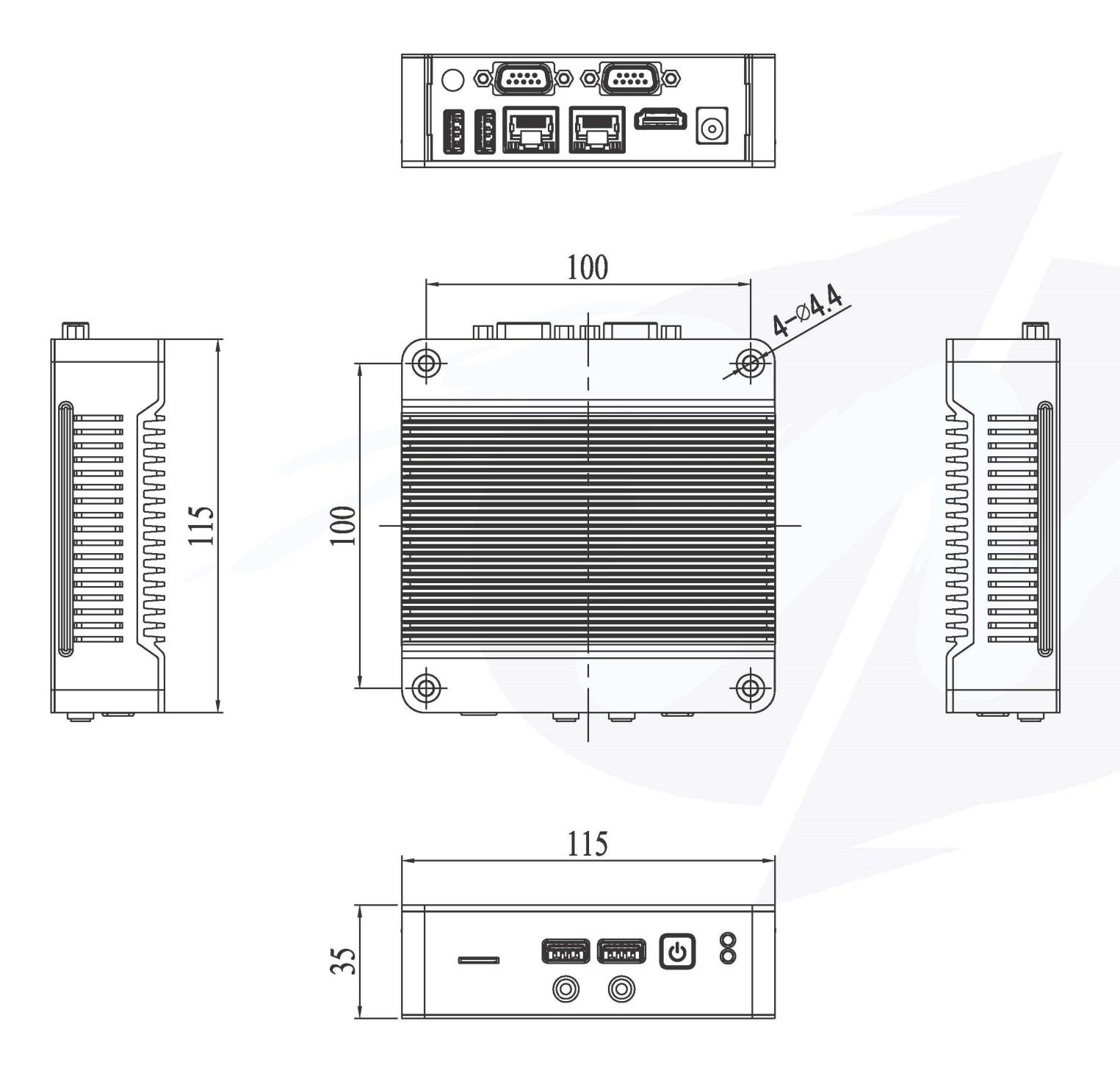

Appearance Diagram:
