Specifications
Intel® Atom x5-E8000 Quad-core 1.04GHz
AMI UEFI and Legacy mode BIOS switchable
SO-DIMM 8GB DDR3L
2U/2GLAN/HDMI/SATA/M.2
Operation Temperature: 0 ~ +60°C
RS-485 x4 (2 x Opto-Isolated), Lockable 8-pin 5.0mm Screw Terminal Block
DC In +15V~56V Lockable Terminal Block Connector
Auto Power On/PXE diskless boot
100x100mm VESA and DIN Rail support
| Processor | Intel® Atom® x5-E8000 Quad Core 1.04GHz, 2.00GHz (Burst) | |
| BIOS | AMI UEFI BIOS | |
| Memory | SO-DIMM, DDR3L‐1600MHz up to 8GB | |
| Storage | SATA Gen3 x1, SATA SLIM 7+15 pin internal | |
| Display | HDMI V1.4b (MAX. 3840 × 2160 pixels) | |
| USB |
USB V3.0 x2 |
|
| Ethernet |
Realtek RTL8111H GBE x2 (Built-in PXE diskless boot) |
|
| RS-485 |
RS-485 x4 (2 x Opto-Isolated), Lockable 8-Pin 5.0mm Screw Terminal Block |
|
| Extension | M.2 E-key x1 (2230), PCIe x1 interface (WLAN/BT) | |
| Power requirement | DC In +15V~56V Lockable Terminal Block Connector | |
| Dimension | 115 x 115 x 48.5mm | |
| Mounting | VESA 100 x 100mm/DIN Rail Support (Optional) | |
| Net Weight | 610g | |
| Operating Temp | 0~60℃ | |
| Security Support | TPM 2.0, Infineon SLB9665VQ2.0 (Optional) | |
| Certifications | CE, FCC, VCCI | |
| OS support | Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian | |
Order Information
| Model Type | CPU | — | LAN | COM | TPM | — | Auto Power On |
| EB-58 | E: | — | L2: | T4: | F: | — | AP: |
| E8000 | LAN x2 |
RS-485 x4 (2 x Opto-Isolated) |
Excluded | Support | |||
| N: | T: | ||||||
| N3160 | Included |
Memory
| Memory | — | |
| D3L-SODIMM-4G | — | 4GB DDR3LRAM |
| D3L-SODIMM-8G | — | 8GB DDR3LRAM |
WiFi/BT Module
| Part Number |
| JWW6051 WIRELESS-CABLE-MHF4 WIRELESS-ANTENNA-DB |
SATA DOM
| Product Name |
| ISATA-SLIM(M)-64G ISATA-SLIM(M)-128G ISATA-SLIM(T)-128G ISATA-SLIM(I)-64G |
EBOX-58E-L2T4F-AP fanless PC powered by Intel® Braswell E8000 processor,
supports up to 8GB DDR3L, Dual Giga LAN, and RS485 x4 (2 x opto-isolated)
and UEFI and Legacy mode BIOS switchable.
System delivers efficient performance, reliable communication, and enhanced protection for industrial applications.

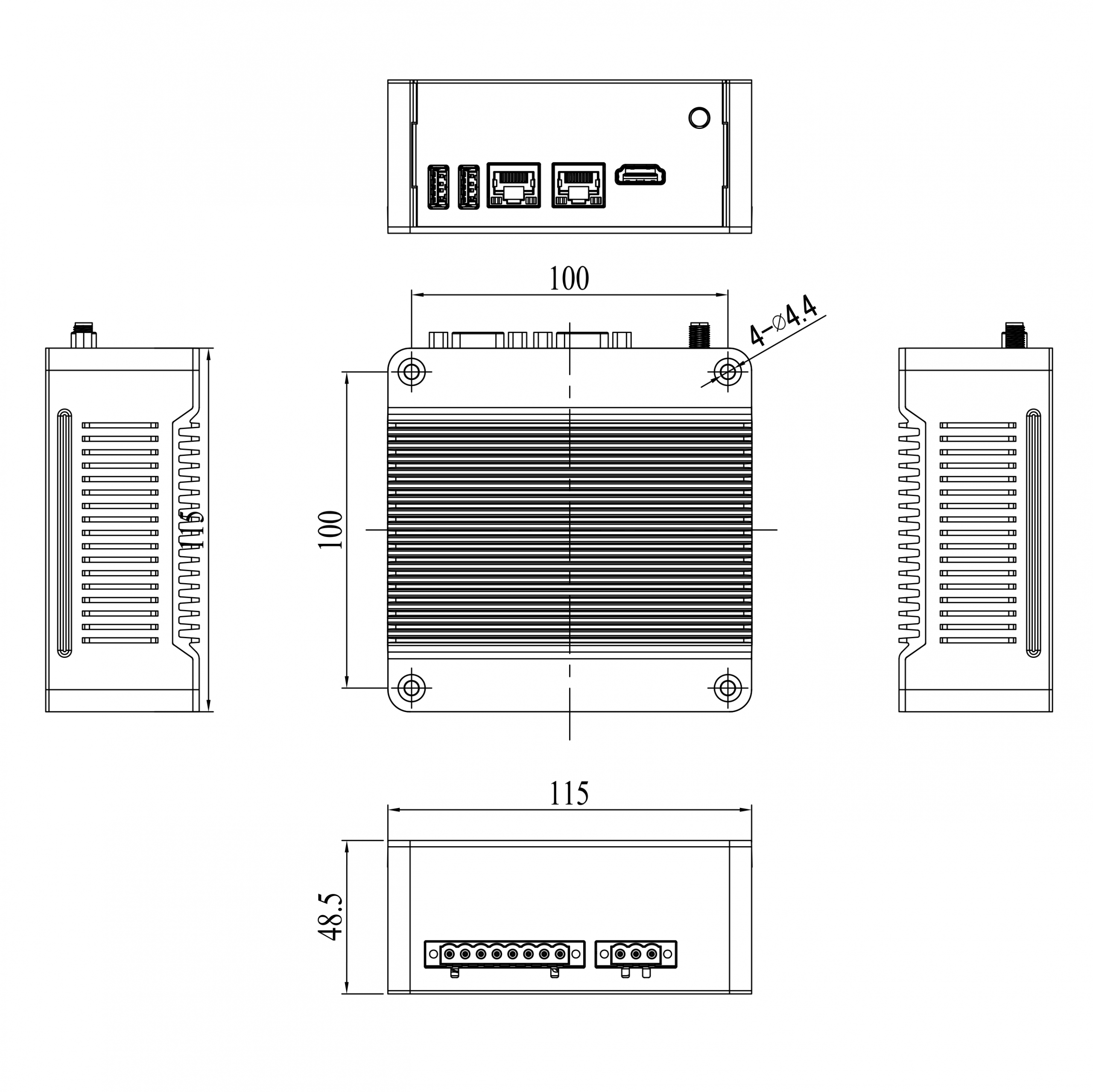

Appearance Diagram:
