DM&P SoC Vortex86DX3- 1GHz
D-3362-852C2-I

4S/2U/VGA/GLAN/LAN/SATA/SD/8~24V

  • Vortex86DX3 1GHz
  • 2GB
  • RS-232
  • RS-485
  • USB
  • GLAN
  • LAN
  • SATA
  • SD
  • VGA
  • 8~24V

Specifications

  • DM&P SoC Vortex86DX3- 1GHz

  • 2GB DDR3 onboard

  • 4S/2U/VGA/GLAN/LAN/SATA/SD/8~24V

  • Operation Temperature: -20 ~ +70°C

  • Din Rail support

  • Auto Power On

Manual

Datasheet

Technical Resource

Part Number D-3362-852C2-I D-3362-851C1G2-I
Processor DM&P SoC CPU Vortex86DX3 -1GHz
RAM 2GB DDR3 Onboard
BIOS AMI BIOS
Display VGA: Maximum resolution up to 1920x1080 @ 60Hz
LAN 10/100Mbps LAN x1
10/100/1000Mbps LAN x1
USB External x2
Internal x1 (for wireless dongle)
SD Slot Internal x1
SATA 1
RS232 2 1
RS485 2 1
GPIO --- 8-bit GPIO x2
Dimension 152 x 104 x 54mm
Power Requirement +8 to +24VDC
Weight 760g
Operating Temperature -20°C to +70°C
Auto Power On Support
DIN-Rail Support
O/S Support Windows7
Windows Embedded Standard 7
Windows Embedded Compact 7
Windows Embedded CE6.0
Windows XP Professional
Windows Embedded 2009
Linux
DOS
POS Ready (WePOS)
QNX
VxWorks
Free BSD

Box System:

Part Number Description
D-3362-852C2-I Vortex86DX3 1GHz with
2GB RAM/LAN/GLAN/SD/SATA/4COM
D-3362-851C1G2-I Vortex86DX3 1GHz with
2GB RAM/LAN/GLAN/SD/SATA/2COM/16-bit GPIO



Wireless Dongle:

Part Number Description
USB-WLAN-IPEX-KIT Internal Wireless USB Adapter
WIRELESS-ANTENNA-157MM 2dBi Dipole Antenna for Wireless USB Adapter, 157mm
WIRELESS-CABLE-150MM 150mm Cable for Antenna



SATA DOM:

Product Name
ISATA-8G-V-M-X
ISATA-16G-V-M-X
ISATA-32G-V-M-X
ISATA-64G-V-M-X

D-3362-I series, based on Vortex86DX3 SoC with 2GB DDR3 RAM onboard memory, is a system solution designed to provide stable computing performance with low-power consumption benefit.

D-3362-I series equipped with VGA, LAN, GLAN, 3USBs, 4COMs, SATA, SD card slot, GPIO, and wireless antenna (optional), is configured to meet a large variety of applications.

D-3362-I can operate in temperature from -20°C to 70°C and support +8 to +24VDC and can be configured as industrial automation, process control, automotive controller, AVL, medical device, and machine control, etc.

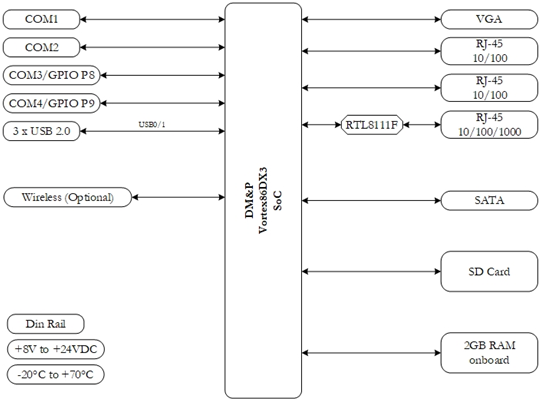

Block Diagram:
