Specifications
Intel® Bay Trail J1900 – 2.0GHz
DDR3L-1333MHz up to 8GB
4S/8U/DVI-I/LVDS/2GLAN/Audio/8GPIO/mPCIE/mSATA/SATA
Operation Temperature: 0 ~ +60°C
| Processor | Intel® Bay Trail J1900 2.42GHz (Burst) 2GHz Quad Core | ||||
| System Memory | DDR3L 1333MHz memory support up to 8GB in SO-DIMM slot x1 | ||||
| BIOS | AMI BIOS | ||||
| Display | Intel® HD Graphics with MultiDisplay support DVI-I: resolution support up to 1920 x 1200 LVDS: resolution support up to 1920 x 1080, dual-channel 24-bit mode |
||||
| Audio | Realtek ALC662 HD Audio | ||||
| LAN | Realtek 8111G Gigabit Ethernet Controller | ||||
| Expansion | MiniPCIe (full-size, share with mSATA) x1 | MiniPCIe (half size) x1 | |||
| Disk Support | mSATA x1 (share with MiniPCIe) | SATA interface x1 | |||
| I/O Interface | 8-bit GPIO x1 GigaLan x2 PS/2 interface x1 USB (ver. 3.0) x1 |
COM x4 (RS232/422/485 x1) Line-out & MIC-in SMBus x1 DVI-I x1 |
LVDS x1 USB (ver. 2.0) x7 |
||
| Connectors | 2-pin header for SPDIF x1 6-pin header for PS/2 interface x1 9-pin header for Line-out, MIC-in x1 DVI-I connector for DVI x1 Phone jack for Line-out x1 USB connector for USB2.0 x3 4-pin header for SMBus x1 7-pin SATA connector for SATA interface x1 9-pin heade for USB2.0 x2 |
30-pin header for LVDS x1 Power jack for Power input x1 USB connector for USB3.0 x1 4-pin wafer for SATA power output x1 9-pin header for COM x4 10-pin header for 8-bit GPIO x1 RJ45 connector x2 |
|||
| Power Requirement | 9 to 24VDC standard input from DC-in jack support for ATX/AT mode | ||||
| Operating Temp. | 0°C to 60°C | ||||
| Dimensions | 148 x 102 mm | ||||
| O/S Support | Windows 10 | Windows 7 | Linux | ||
| Product Name | BYT-35-J1900-A |
| Processor | Intel® Bay Trail J1900 2.42GHz (Burst) 2GHz Quad Core |
| System Memory | DDR3L 1333MHz memory support up to 8GB in SO-DIMM socket x1 |
| Expansion | MiniPCIe (full size, share with mSATA) x1 MiniPCIe (half size) x1 |
| Disk Support | mSATA (shared with MniPCIe) SATA device |
| Display |
DVI-I LVDS |
| Audio | Line-out MIC-in |
| Giga LAN | 2 |
| COM | 4 (RS232/422/485x 1) |
| USB3.0 | 1 |
| USB2.0 | 7 |
| SMBus | 1 |
| 8-bit GPIO | 1 |
| PS/2 interface | 1 |
BYT-35-J1900-A, a standard 3.5” embedded solution for industrial application based on Intel®Bay Trail Quad-Core J1900 CPU with DDR3L RAMsupport up to 8GB, provides stable and powerful computing performance.
BYT-35-J1900-A supports 2x Gigabit LAN, 4x COM, 8x USB, SMBus, 8-bit GPIO, 2x MiniPCIe, DVI-I, LVDS, and 2 storage option SATA interface and mSATA interface for development use.

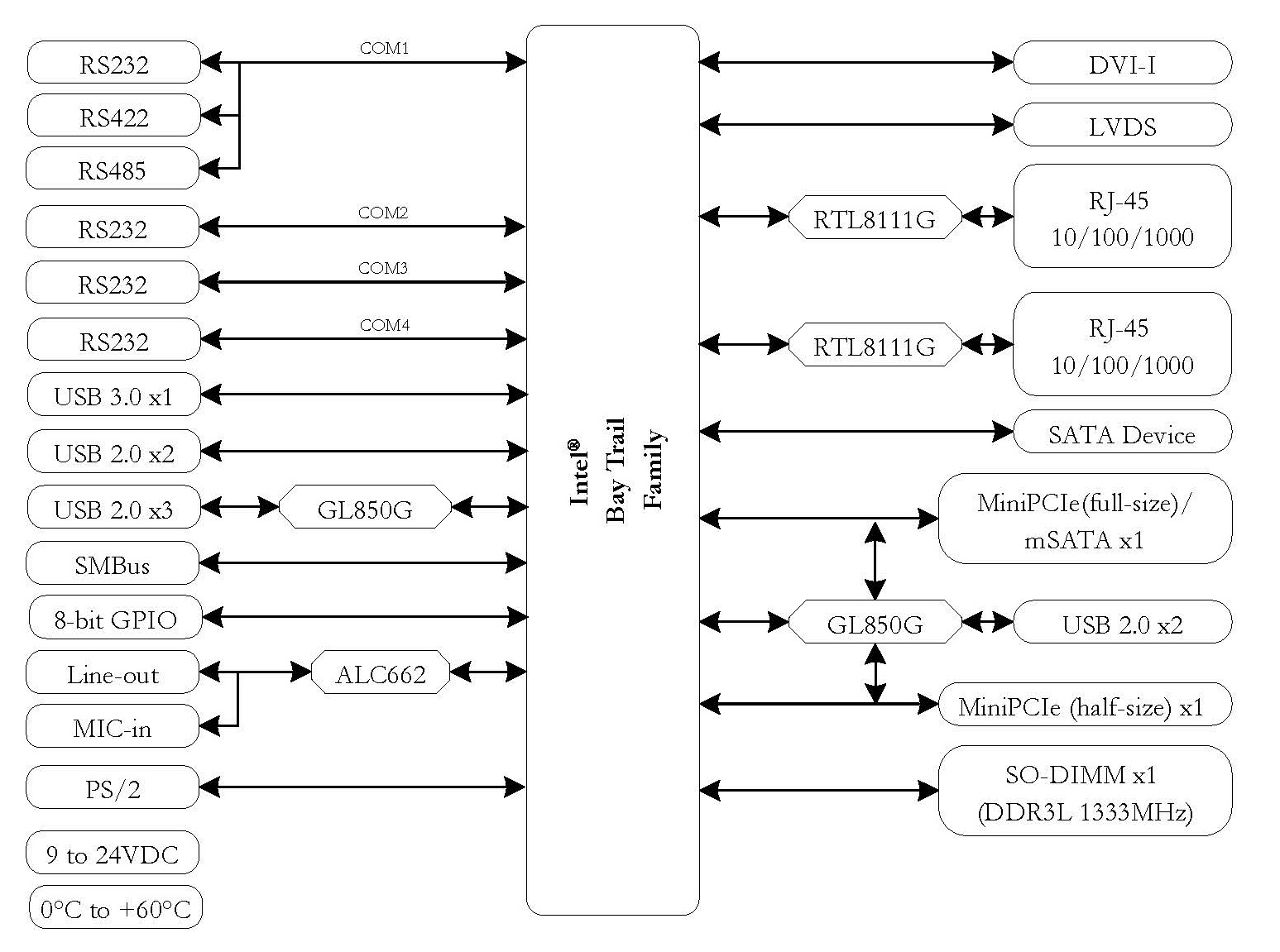

Block Diagram:
