Intel® Braswell N3160 - 1.6GHz
BSW-mITX-N3160

6S/10U/VGA/HDMI/LVDS/2GLAN/LPT/Audio/8GPIO/mPCIE/M.2/SATA

  • Intel® Braswell N3160 - 1.6GHz
  • 4GB
  • 8GB
  • RS-232
  • RS-422
  • RS-485
  • USB
  • GLAN
  • LPT
  • Audio
  • Mini PCIe
  • GPIO
  • HDMI
  • VGA
  • LVDS

Specifications

  • Intel® Braswell N3160 - 1.6GHz

  • DDR3L-1600MHz up to 8GB

  • 6S/10U/VGA/HDMI/LVDS/2GLAN/LPT/Audio/8GPIO/mPCIE/M.2/SATA

Manual

Datasheet

Technical Resource

Processor Intel® Braswell N3160 2.24GHz (Burst)  1.6GHz  Quad-Core
System memory DDR3L 1600MHz memory support up to 8GB in SO-DIMM slot x2
BIOS AMI BIOS
Display Intel® HD Graphics with MultiDisplay support
HDMI: resolution support up to 3840 x 2160 at 30Hz
VGA: resolution support up to 1920 x 1080 at 60Hz
LVDS: resolution support up to 1920 x 1080 at 60Hz
Audio Realtek ALC662VD HD Audio
LAN Realtek 8111H Gigabit Ethernet Controller
Expansion MiniPCIe (full-size) x1 PCIe x1
Disk Support M.2 SATA x1 SATA interface x1
I/O Interface 8-bit GPIO x1
Line-in, Line-out
MIC-in x1
PS/2 interface x1
USB (ver. 2.0) x7
COM x6 (RS232/422/485 x1)
LVDS x1
SIM card holder x2
USB (ver. 3.0) x3
HDMI x1
Parallel x1
SMBus x1
VGA x1
Connectors 5-pin header for SMBus x1
7-pin SATA connector for SATA x1
9-pin header for COM x4
9-pin header for USB2.0 x2
9-pin D-sub connector for COM x2
10-pin header for 8-bit GPIO x1
15-pin D-sub connector for VGA x1
32-pin header for LVDS x1
USB connector for USB2.0 x1
6-pin header for PS/2 Keyboard & Mouse x1
25-pin D-sub connector for Parallel x1
ATX Power connector x1
HDMI connector x1
MIniPCIe slot x1
M.2 slot (M. Key slot 2242/2260) for M.2 SATA x1
Phone Jack for Line-in, Line-out, Mic-in x1
RS45 connector for Giga LAN x2
USB connector for USB3.0 x3
Power Requirement 24VDC ATX power input with ATX/AT mode
Operating Temp. 0°C to 60°C
Dimensions 170 x 170 mm
O/S Support Windows 10 Windows 7 Linux
Product Name BSW-mITX-N3160
Processor Intel® Braswell N3160
2.24GHz (Burst) 1.60GHz Quad-Core
System Memory DDR3L 1600MHz memory support up to 8GB
in SO-DIMM socket x2
Expansion MiniPCIe (full size) x1
PCIe x1
Disk Support M.2 SATA
SATA device
Display HDMI
VGA
LVDS
Audio Line-in
Line-out
MIC-in
Giga LAN 2
COM 6 (1x RS232/422/485)
USB3.0 3
USB2.0 7
Parallel 1
SMBus 1
8-bit GPIO 1
PS/2 1
SIM Card Holder Support

BSW-mITX-N3160, a standard mini-ITX embedded solution for industrial application based on Intel® Braswell Quad-Core CPU with DDR3L RAM support up to 8GB, provides stable and powerful computing performance.

BSW-mITX-N3160 supports 2x Gigabit LAN, 6x COM, 10x USB, Parallel, PS/2, SMBus, 8-bit GPIO, SIM card holder, MiniPCIe, PCIe, HDMI, LVDS, VGA, and 2 storage options SATA interface and M.2 SATA interface for development use.

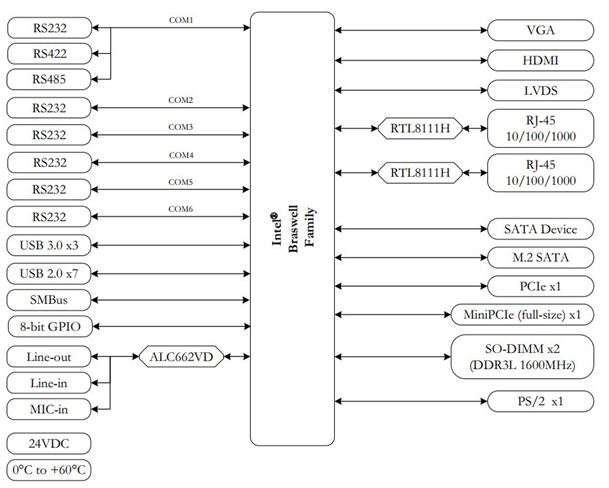

Block Diagram:
