VOX-070-TS-EX2 — A Perfect Solution for Ticketing and Access Control System

March 14, 2022

Ticketing and access control system is important to our daily life, because without it the public transportation (train, bus, airport, etc) will be chaotic.

However, to build a reliable, smart ticketing and access control system has been very challenged because it not only needs a lot I/O’s to control different devices for people to engage with (card swiping, door open, showing remaining credit, ect.) but also needs to be tough to handle hundreds of thousands commuters relentless usage in/out through the station without making a mistake on each ticket transaction.

Recently, with the VOX-070-TS-EX2, ICOP successfully helps our client to develop the new ticketing and access control system, where has been widely installed in the south America.

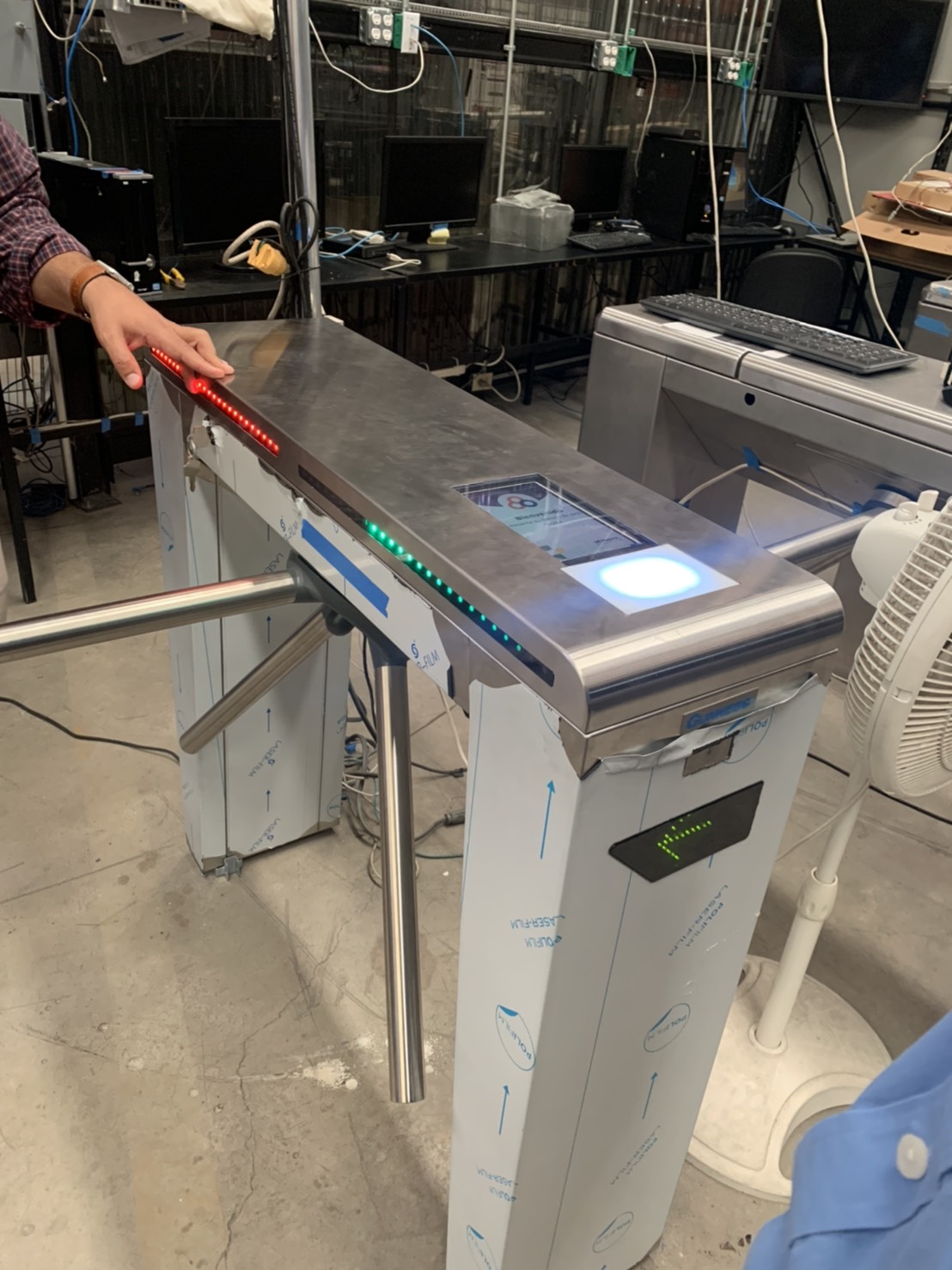

vox070tsex2Solution_img2

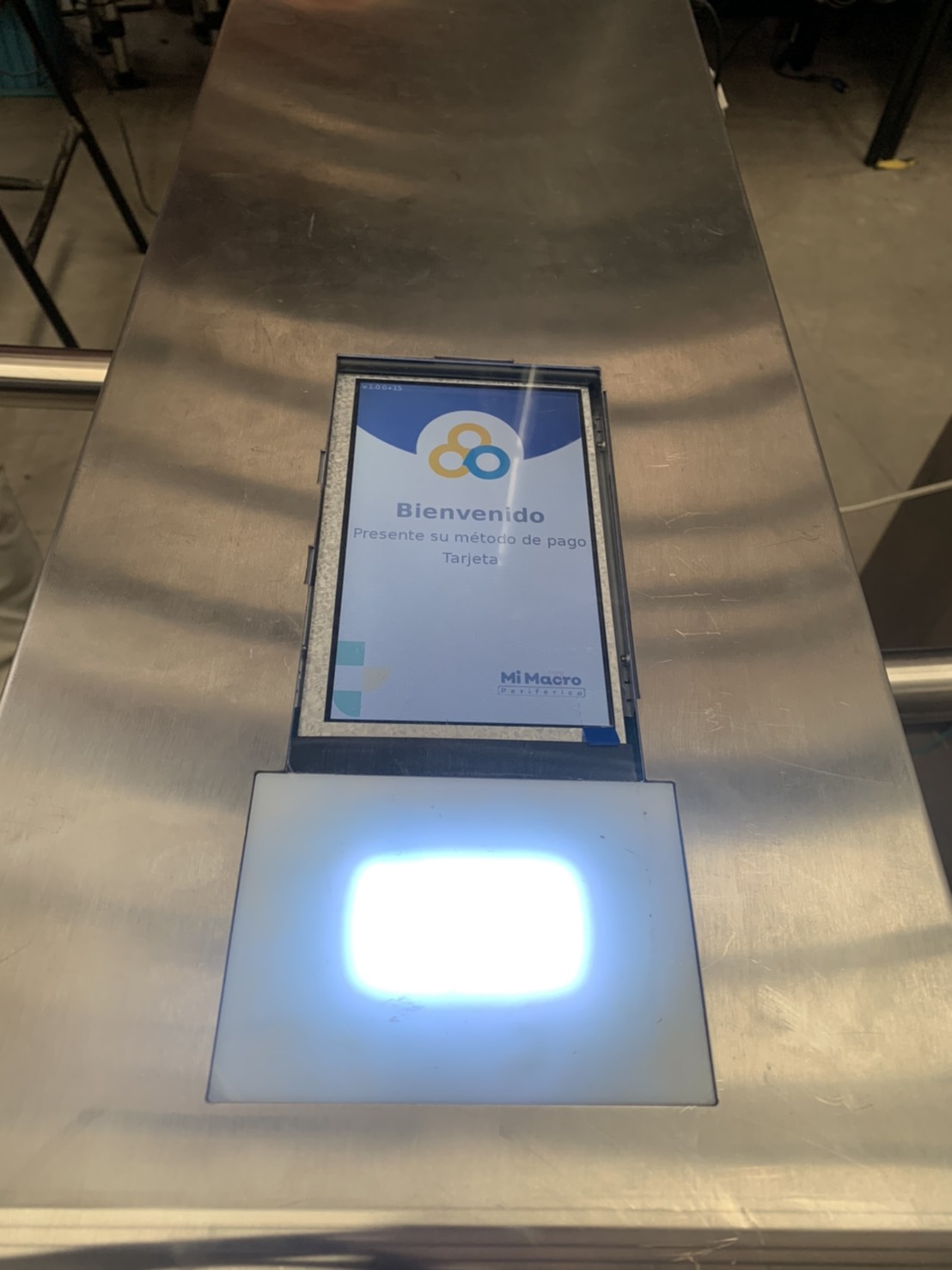

vox070tsex2Solution_img3

VOX-070-TS-EX2: A Low-Power Fanless Wide Temp design with Rich I/O Support

VOX-070-TS-EX2(Outline)

The VOX-070-TS-EX2 is a brand-new solution utilizing the Vortex86EX2 SBC integrated with a 7" 16:9 LCD Panel with a resistive touch screen. The VOX-070-TS-EX2 has an industrial-grade fanless design which supports true wide temperature operation environment from -30 to 80 ˚C, including the LCD Panel and SBC.

Multiple I/O functions are another highlight of the VOX-070-TS-EX2. It provides 5x COM ports (1x RS232/485), 4x USB 2.0, 1x LAN, 1x 8-bit GPIO, 1x CAN bus (2.0A/2.0B), as well as other options. There are also 4x Mini PCIe slots on the VOX-070-TS-EX2 allowing users to have unlimited expansion of wireless communication (LTE/WLAN/Bluetooth); specific I/O functions are only available on Mini PCIe module.


Main features of VOX-070-TS-EX2:

  • DM&P SoC Vortex86EX2- 600MHz
  • 1GB / 2GB DDR3 onboard
  • 4U / 5S / CAN / GPIO / LAN / 4 MiniPCIe / Audio / SD Card
  • 7 inch TFT 800x480 Resolution LCD with resistive touch screen
  • Operation Temperature: 0 ~ +50°C/ -30 ~ 80℃(Optional)/ -20 ~ +60°C (Optional)
  • Optional: GPU-A9160
  • Optional: 4GB eMMC

For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
