VDX3-6726, A 3.5” solution with less power consumption, higher performance, and is cost effective in replacing aging equivalents

February 11, 2022

The VDX3-6726 series of low-power x86 embedded controllers are designed to meet 3.5-inch form factor specifications and extensive backwards compatibility, thus providing a life-cycle challenged migration path for projects using other existing x86-based 3.5-inch controllers.


VDX3-6726 designed for plug-in replaceability and backwards compatibility

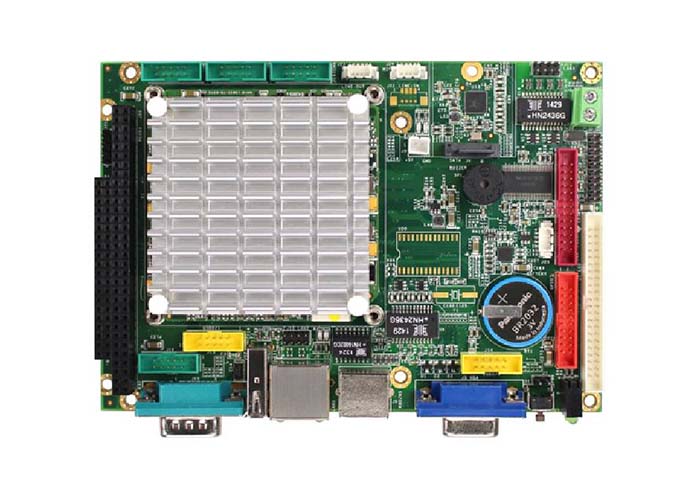

The VDX3-6726 is powered by a 1GHz single-core (dual-core optional) Vortex86DX3 and 1-2Gb DDR3. This 3.5” (102 x 146mm) module is designed to replace aging AMD LX800 equivalents and requires less power consumption, higher performance, and is cost effective. In addition, the VDX3-6726 series controllers are designed as replaceable plug-ins with backwards compatibility to support older versions of software. This, in turn, helps to extend the life cycle of existing products without the need for extensive redesigns. The VDX3-6726 offers two interfaces that support a maximum resolution of up to 1920 x 1080 (@ 60MHz) by connecting to VGA and/or 24-bit LVDS LCD Flat Panel.


The VDX3-6726 is suitable for a wide range of applications such as data acquisition, industrial automation, process control, automotive controllers, AVL, intelligent vehicle management equipment, medical equipment, human-machine interfaces, robotics, mechanical control, etc.

Main Features of VDX3-6726:

  • DM&P SoC Vortex86DX3-1GHz
  • 1GB / 2GB DDR3 onboard
  • 4S / 4U / VGA / LCD / LVDS / 2GLAN / LAN / PWM / Audio / 16GPIO
  • Operation Temperature: -20 ~ +70°C
  • Onboard 4MB SPI Flash Disk
  • PC/104 Connector Onboard

For more info and sample request, please write to, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
