VEX2-6415, A 100x66mm SBC than can support harsh environments (-40 ~ +85oC) containing 2 mPCIe expansion slots and many I/O ports

October 07, 2020



VEX2-6415 VEX2-6415





Vortex86 EX2

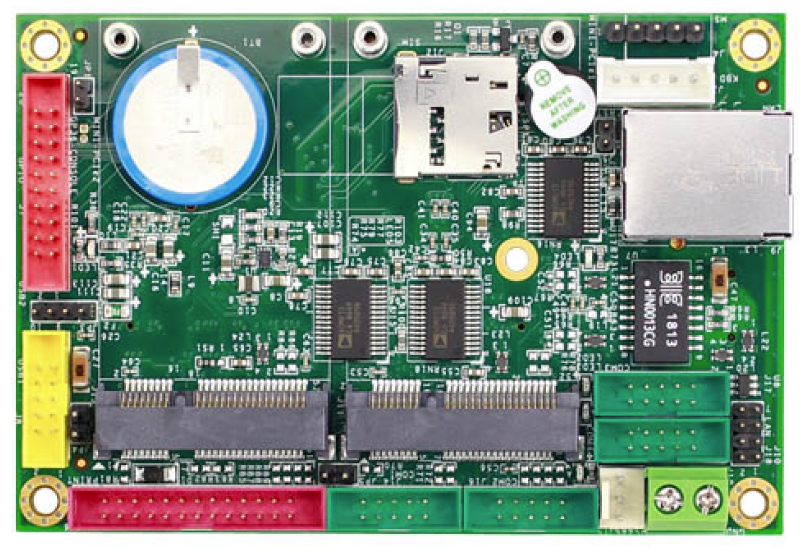

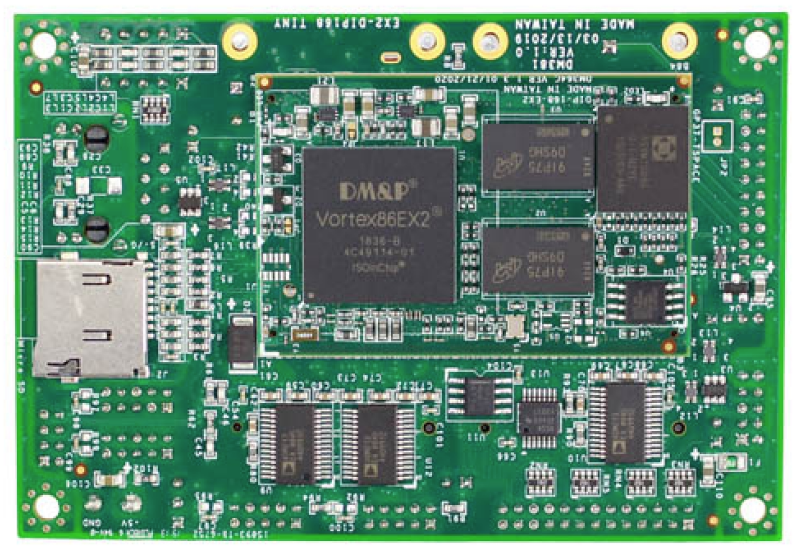

VEX2-6415 is a tiny SBC powered by the DM&P Vortex86EX2 processor and with compact size (100x66mm) designed for IoT, automation, and other projects where space is limited.

VEX2-6415 consumes an extremely low amount of power(2.4 watts typically) while also having the option of supporting a wide operating temperature range(-40°C to +85°C ) with fanless design making this unit great for applications in harsh environment.



For many IoT applications, the VEX2-6415 will be the best choice because it supports Windows Embedded Compact 7, Windows Embedded Compact 6, Various of Linux distributions, QNX, and even the classic but still popular DOS;  as well as having the capacity for wide operating temperature range. The VEX2-6415 can be deployed in many existing applications without the need to modify the software.

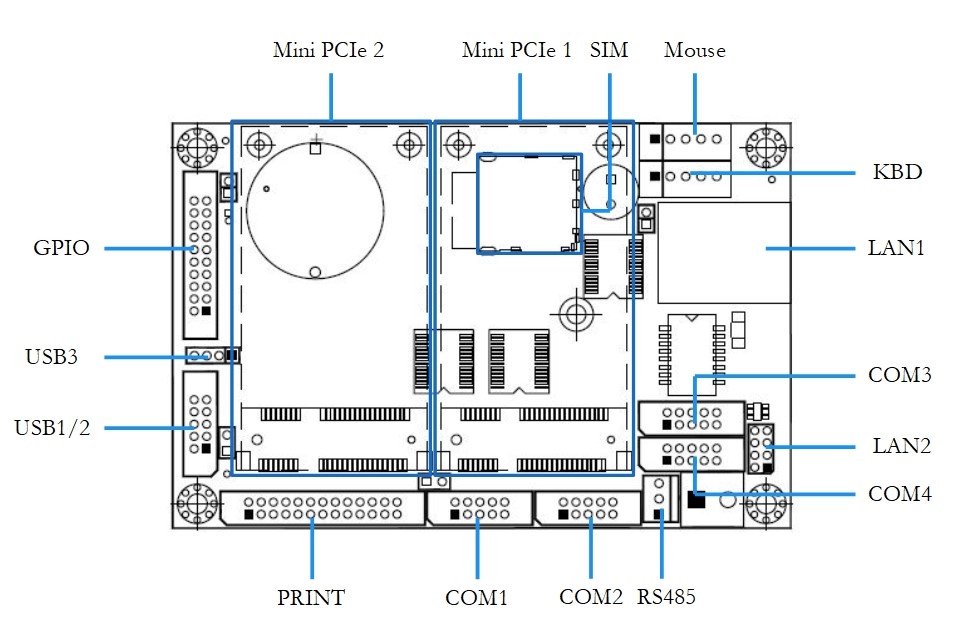

VEX-6415 Output Dimension



As a versatile and compact SBC, the VEX2-6415 features various I/O functions to meet the requirements for almost any embedded application. The VEX2-6415 comes equipped with four serial ports (2 x RS232/485), one 16-bit GPIO port, three USB 2.0 ports, two Ethernet ports, and one Printer port.



The VEX2-6415 has outstanding flexibility; there are two MiniPCIe slots available on the board measuring at 100x66mm. These two expansion buses allow user to have Bluetooth, WLAN, and other I/O functions through MiniPCIe modules. In regards to 4G connectivity, the VEX2-6415 comes with a SIM card slot onboard giving users more flexibility when picking out a 4G modern module.



Key features of the VEX2-6415:

  • A compact SBC powered by the DM&P Vortex86EX2 600MHz processor
  • Extremely low power consumption which only requires 2.4 Watts
  • Fanless design while supporting a wide operating temperature:
    -20°C ~ +70°C, -40°C ~ +85°C (Optional) making it ideal for harsh environments
  • Operating systems supported:
    Windows Embedded Compact 7, Windows Embedded Compact 6, Linux, QNX, DOS
  • Amazing I/O functions & expandability:
    4 x COM Port (2 x RS232/485), 1 x 16-bit GPIO, 1 x LPT, 3 x USB 2.0, 2 x LAN, 2 x MiniPCIe





For more product information, please check https://www.icop.com.tw/product/VEX2-6415.
