VEX2-6427, A 3.5” Fanless x86 CPU Board with 10 Serial Ports, 3.5 Watts Power Consumption and -40 ° to +85 ° C Support

August 24, 2020

10 COM ports support

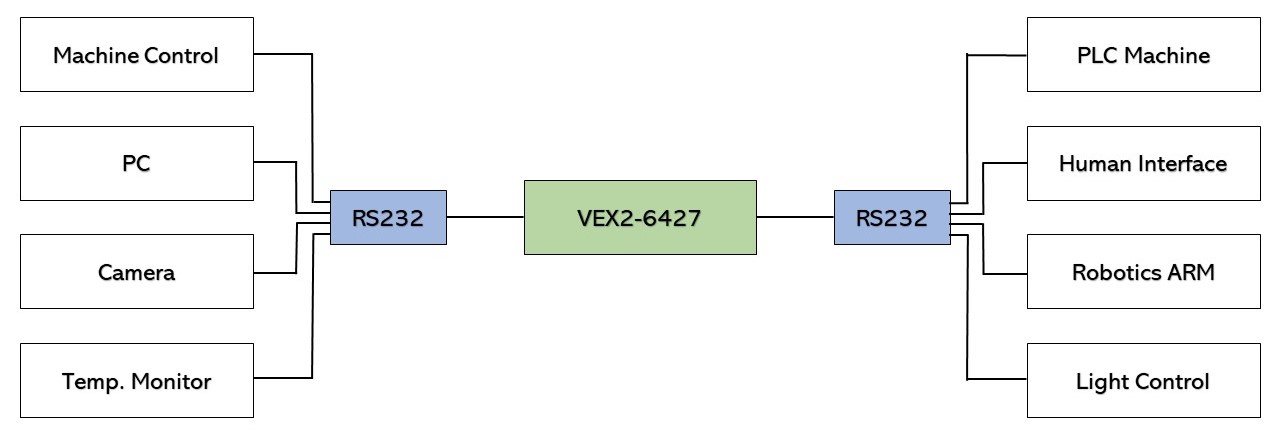

Industrial control systems using RS232 control are common. RS-232 (Recommended Standard 232) is a standard originally introduced for serial communication transmission of data. The generally RS232 provides 9-pin, which can be converted to RS485/RS422 protocol through software (2 for RS232/RS485). Most of the equipment has built-in RS232 control functions in the market, such as PLCs use RS232 to talk to other modules or even other PLCs, which can also use RS232 such as operator interface or HMI, motor controllers or drives, robots, or robotic arm.




Extended Reading: Serial Port, RS232

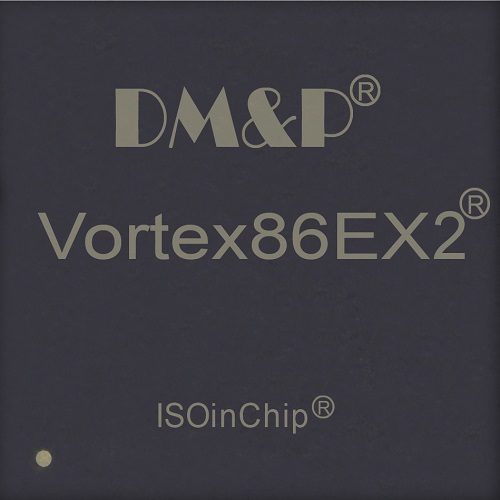

Two Brain-Cores: Vortex86EX2 SoC

The Vortex86EX2 series is the new generation heterogeneous two core CPU which utilizes the Master and Slave cores to simultaneously run two different BIOSs & Operating Systems without affecting each other; equipped with various programmable I/ O; it is designed for real-time desired industrial/automation applications.


• Main Features of Vortex86EX2:

  • Two independent CPU core. Master for UI, Slave for real-time I/O
  • Truly two BIOS, two OS, no need Hypervisor and OS Virtualization
  • Two independents assigned DDR3 memory area, support ECC
  • Fail-save between Master and Slave core.
  • Working Temp. -40 to 85 ˚C


Extended Reading: Vortex86EX2, Vortex86EX2 processor Introduction

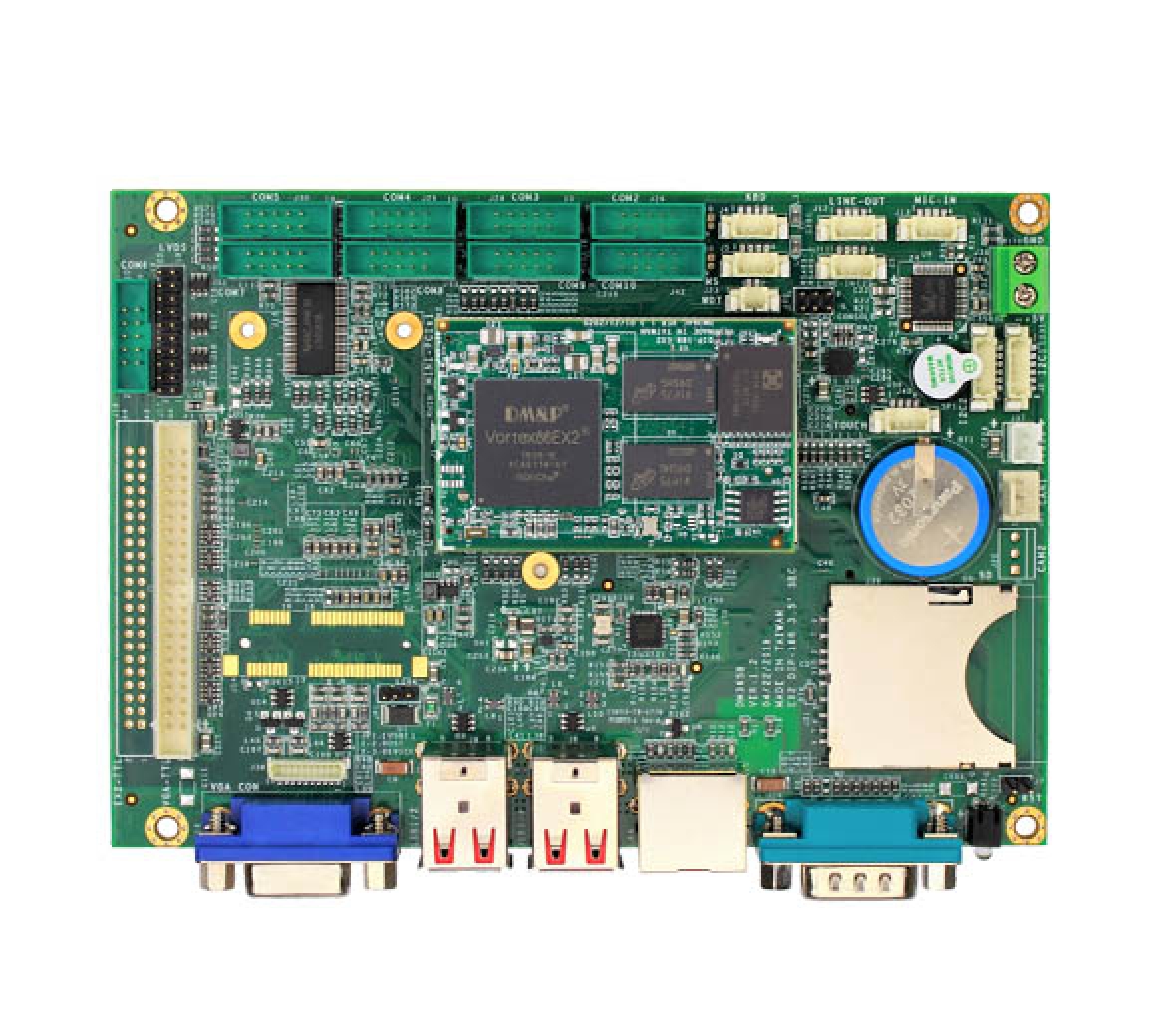

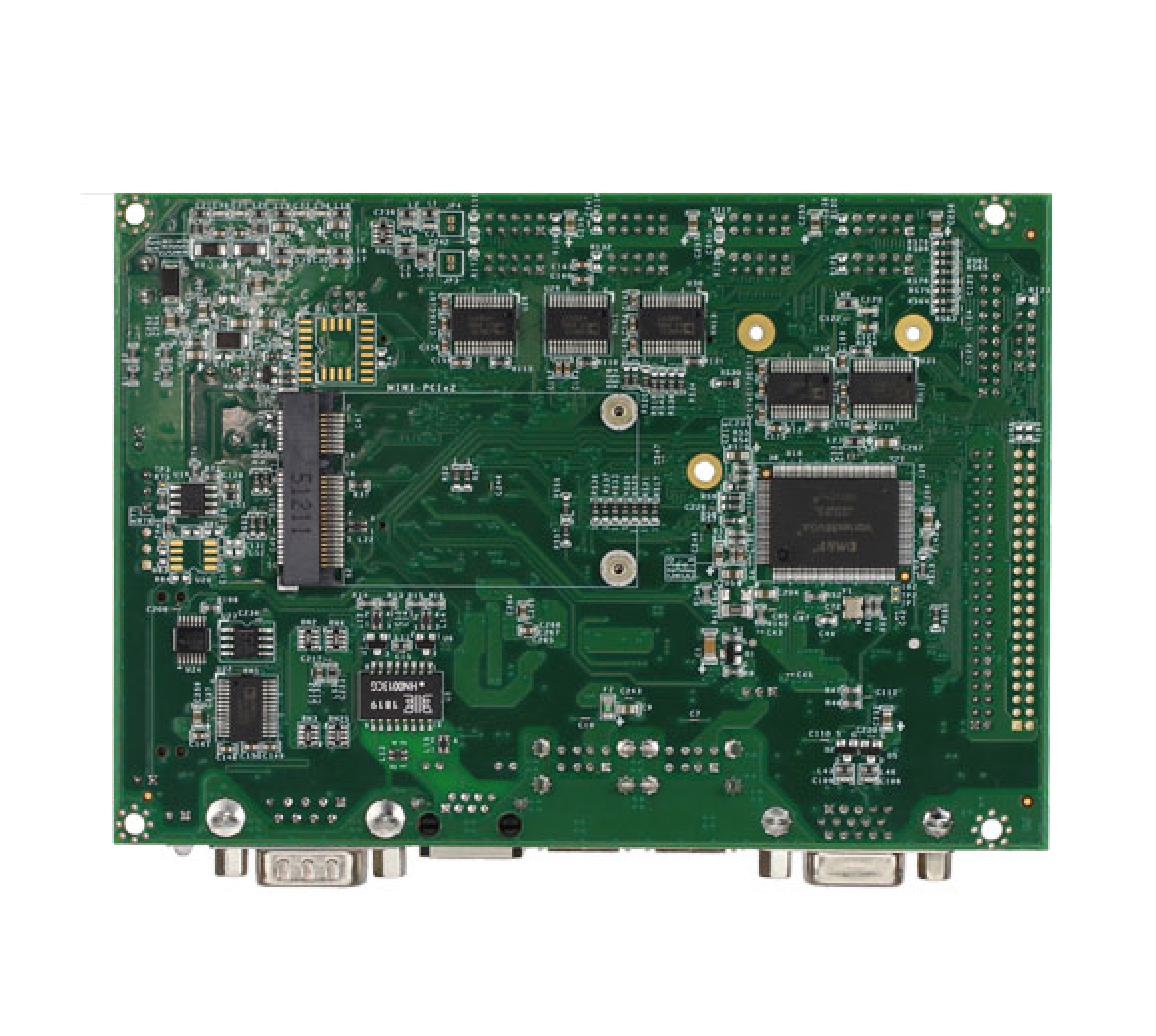

A 3.5” Fanless x86 CPU Board with 10 Serial Ports, 3.5 Watts Power Consumption and -40 ° to +85 ° C Support: VEX2-6427

VEX2-6427 family is an embedded 3.5" SBC solution for industrial applications based on the DMP Electronic Vortex86EX2 600MHz processor, with up to 1GB of onboard memory, Fanless design, and independently consumes 3.5 watts. VEX2-6427 family can support up to 10 serial ports, 2 CAN bus, 8 12-bit ADC channels, 2 mini-PCIe expansion slots and many other functions.

For those users who wish to design their own carrier board to carry the Vortex86EX2-DIP168 module, VEX2-6427 can also be used as a development board. ICOP guarantees a service life of at least 10 years after the first delivery of the OEM/ODM board.




Features of VEX2-6427:

  • Processor: DM&P SoC Vortex86EX2 - 600 MHz
  • Form factor: 3.5” CPU board
  • 512MB/1GB DDR3 onboard
  • 10S / 4U / VGA / LCD / LVDS / LAN / 2CAN / I²C / Audio / MINIPCIE
  • Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Option)



For more info and sample request, please write to, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
