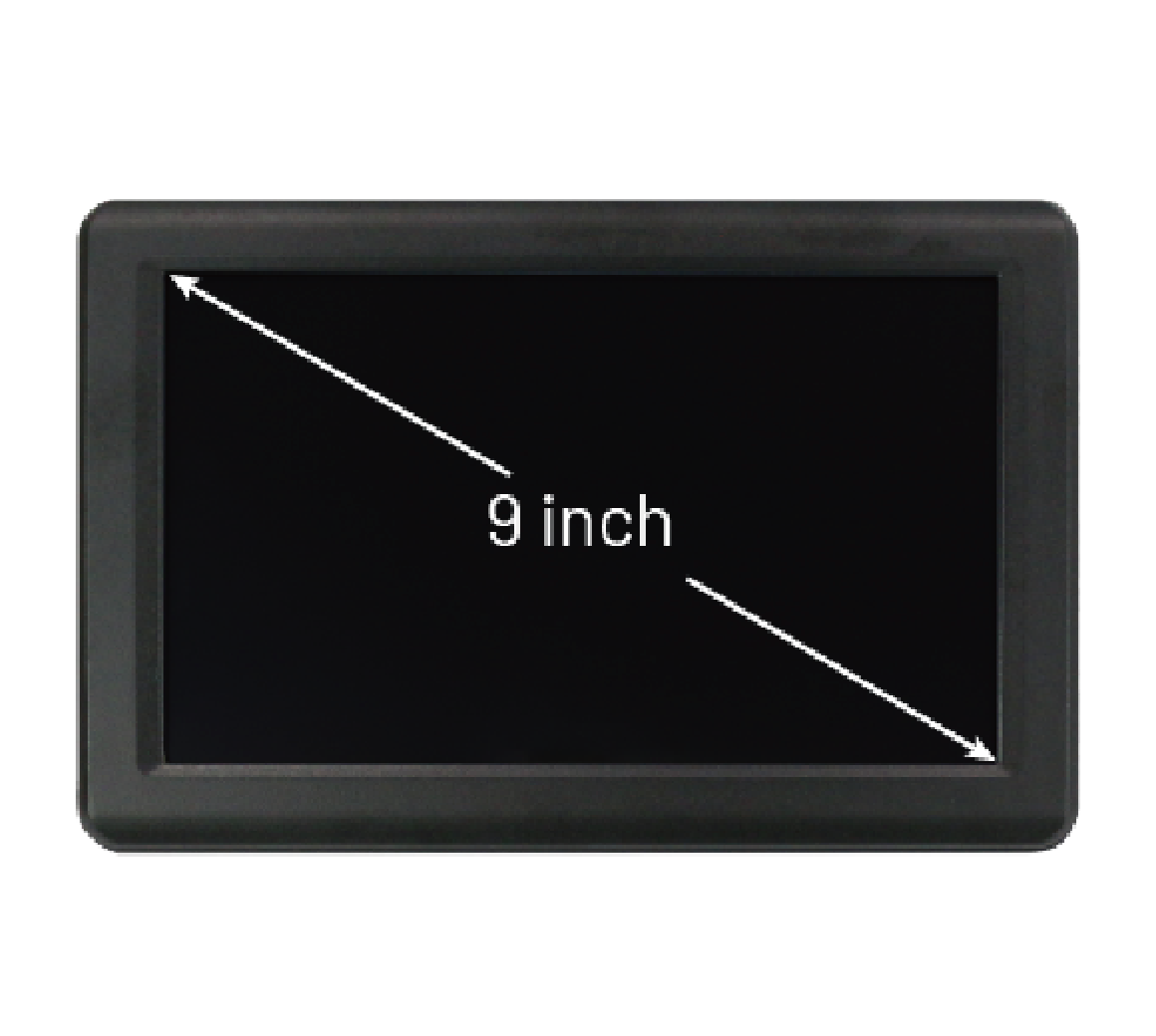

ICOP Technology introduces the QEC-PPC-M-090T, a 9-inch EtherCAT MDevice Panel PC built for machine builders who want deterministic control and a ready-to-use touch HMI in one compact platform. Instead of integrating an EtherCAT master, a separate HMI panel (or IPC), and the communication bridge between them, QEC-PPC-M-090T consolidates everything into one industrial grade controller — reducing wiring, BOM cost, and integration risk.
Developed with 86Duino IDE (open-source, Arduino-style), it enables fast prototyping and efficient engineering workflows while supporting Ethernet, Modbus TCP, and real-time EtherCAT control for motion and high-speed I/O applications. It is also HMI-ready with LVGL and ICOP’s in-house 86HMI Editor for rapid UI development.
QEC-PPC-M-090T combines real-time EtherCAT control and a 9” touch HMI into one device, helping SI teams and machine builders:
To support real-world factory installation and global deployment, QEC-PPC-M-090T features an IP65 front panel and CE / FCC / VCCI certifications — helping teams deploy with confidence and shorten qualification time.

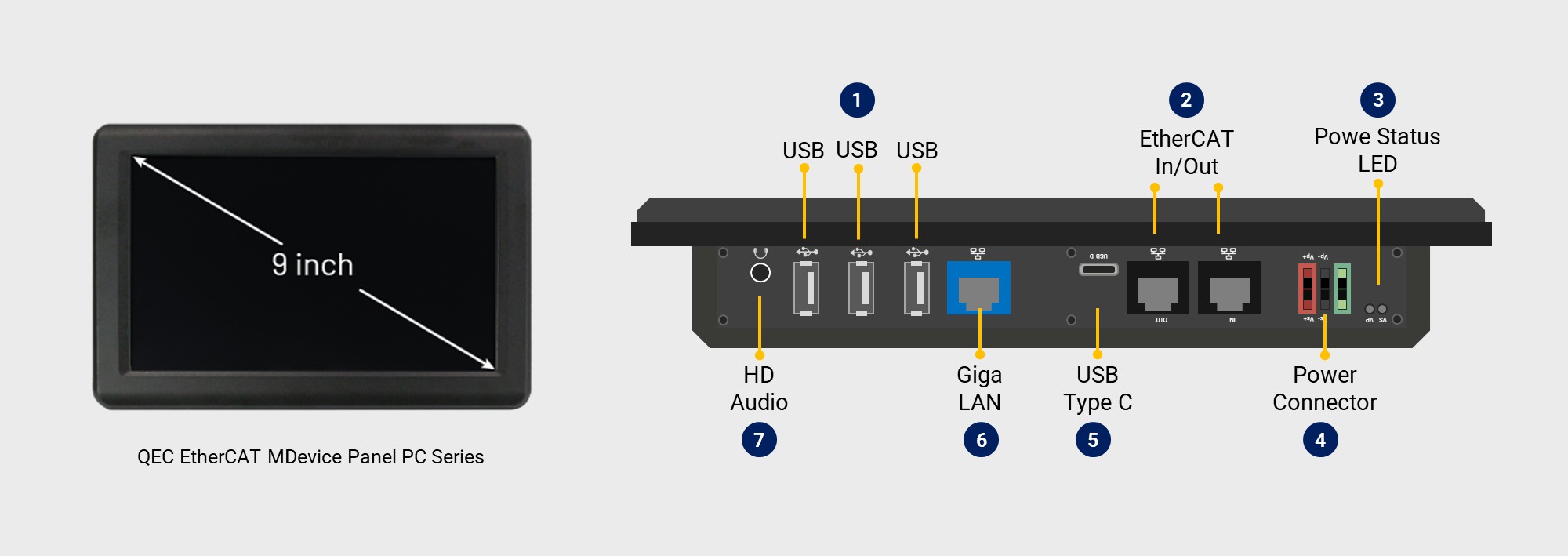

Each QEC-PPC-M unit features a built-in 2GB SLC eMMC, dual EtherCAT ports (for redundancy), one Giga LAN port, three USB ports, a USB debug port (for upload/debug), and HD Audio, which can all be accessed and controlled via an off-the-shelf Library.

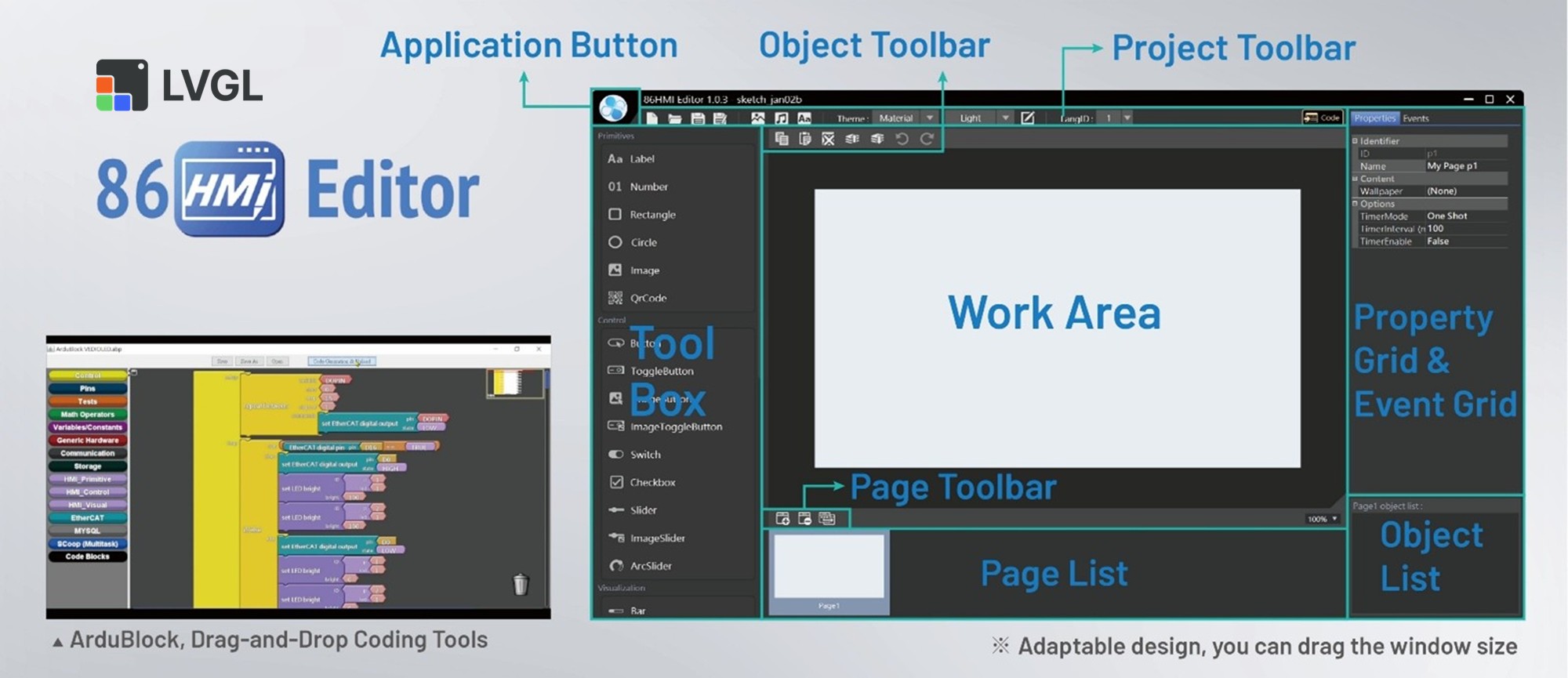

For HMI development, QEC-PPC-M-090T supports LVGL and ICOP’s in-house 86HMI Editor. Engineers can build interactive touchscreen HMIs with LVGL widgets, while 86HMI Editor provides a graphical workflow with Auto Code Generation — generating HMI APIs and reducing repetitive manual coding. This helps teams build and iterate customized HMIs faster, especially in projects with frequent UI changes.

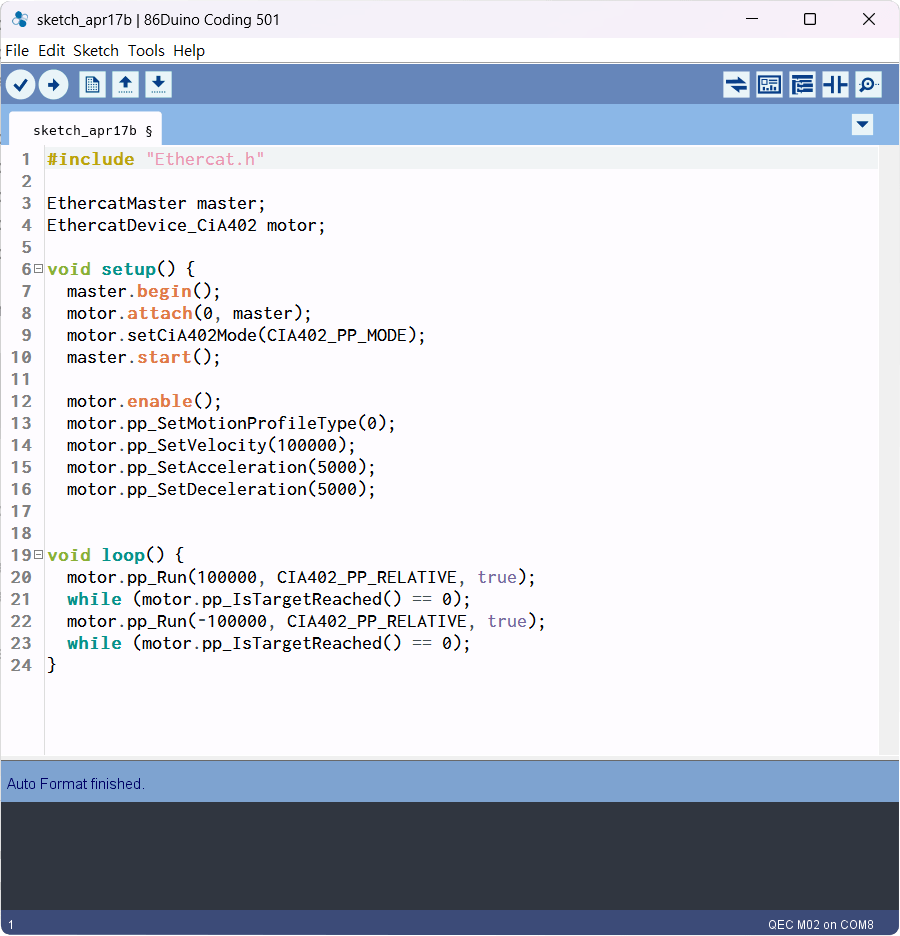

Automation projects often spend significant effort on software integration—communication, control logic, HMI flows, and diagnostics. With 86Duino IDE, teams can prototype quickly, onboard engineers faster, reuse libraries, and iterate efficiently — ideal for SI and machine builders working under tight schedules.
QEC-PPC-M-090T is designed for real-world deployment, supporting:
This multi-protocol positioning makes it easier to integrate with existing factory infrastructure while maintaining real-time control where it matters most.
With real-time EtherCAT control and an integrated 9” touch HMI in a compact panel PC design, the QEC-PPC-M-090T is an ideal solution for machine builders seeking faster integration, predictable control performance, and an efficient development experience.
For more information and sample requests, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
