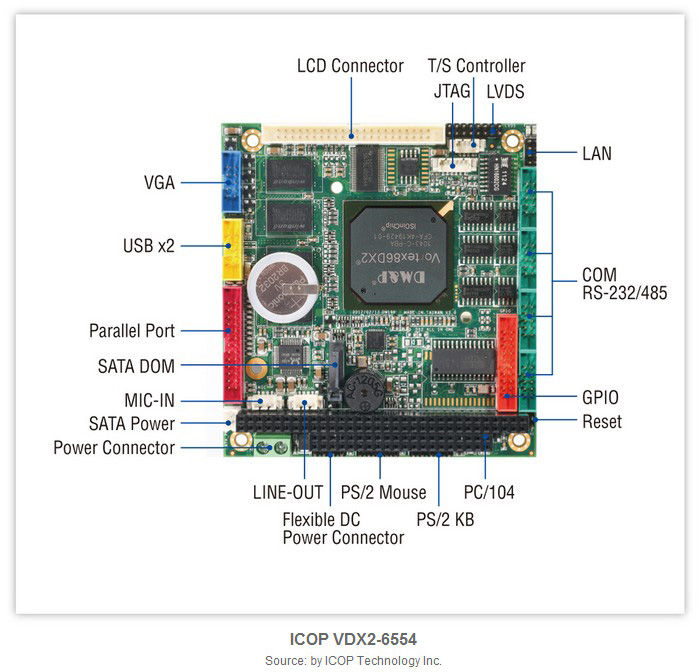

VDX2-6554
PC/104 Form Factor with newly DMP Vortex86DX2 SoC,
SATA Interface, and VGA Integrated Featuring 3rd Generation Vortex86 SoC
ICOP Technology, a member of DM&P Group, is proudly going to release an All-in-one PC/104 model, VDX2-6554, which is highly integrated, low power consumption design and extended temperature supported by using the latest Vortex86DX2 SoC (System-on-Chip) CPU. The Vortex86DX2 SoC, 3rd generation SoC of Vortex86 family, is indeed designed ideally for industrial and embedded applications due to various integrations of its I/Os, LAN, GPU and Bus such as PCIe, ISA, I2C, SPI, and as well as two WatchDog, etc.
ICOP devotes work for providing kernel solutions for low power consumption, extended temperature support up to -40~+85C optional, and 10+ years Life-Cycle SBC (Single-board-computer) in applications; thus, we design and develop all of our SBC based on these 3 core technology as ICOP’s mission is to be the most professional and advanced manufacturer in the embedded industry field. Vortex86DX2 is the world’s first SoC which integrates CPU, North and South Bridge, GPU, HD Audio, versatile I/O ports, ISA, and PCIe bus into a single chip. Therefore, the performance of operating stability, quality control, and product availability are guaranteed undoubtedly.

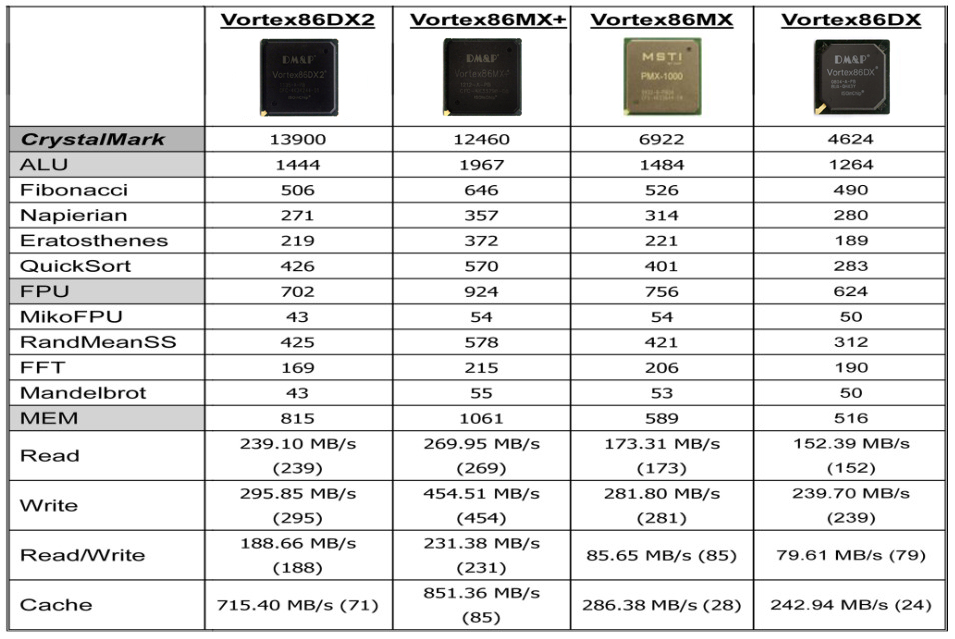

The performance of VDX2-6554 series is the most outstanding SBC among our product lines that its RAM size can be upgraded to 1GB, operates faster with SATA interface, and supports mono display panel under DOS, Windows CE, Windows Compact 7, Linux, VxWorks, QNX, etc. the advantages can also be easily found in the benchmark comparison diagram below.
The capability and the benefits of Vortex86DX2 are now very clear and obvious. We strongly recommend all of our customers who are using VDX PC/104 modules to have their next focus on ICOP’s latest product – VDX2-6554 with advanced technology and performance.
Ordering Information
