VOX-090-TS-D3: A new generation with the Legacy Solution, 9-inch Open frame supports Windows Embedded Standard 7, Compact 7, Linux, and QNX

October 30, 2024

ICOP Technology proudly announces the release of the VOX-090-TS-D3 Embedded Display System, a rugged solution engineered specifically for industrial applications. The default SBC is VDX3-6726-1G-T, based on the DM&P SoC Vortex86DX3 (1GHz) processor. It combines flexible expandability and comprehensive connectivity, which is ideal for HMI, automation control, device monitoring, and a wide range of embedded applications .

VOX-090-TS-N8M

VOX-090-TS-D3, an x86 Open Frame Solution with Powerful Connectivity for Industrial Needs

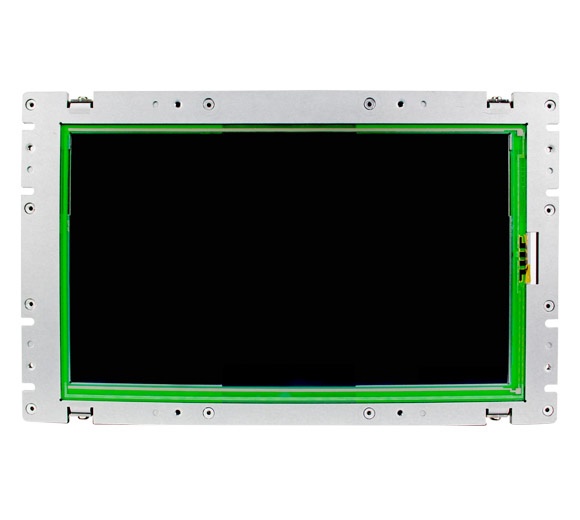

The VOX-090-TS-D3 is a flexible embedded display system for industrial use. It features a 9" TFT 1024×600 Resolution LCD with a resistive touchscreen and 300 nits brightness for clear visuals in any lighting.

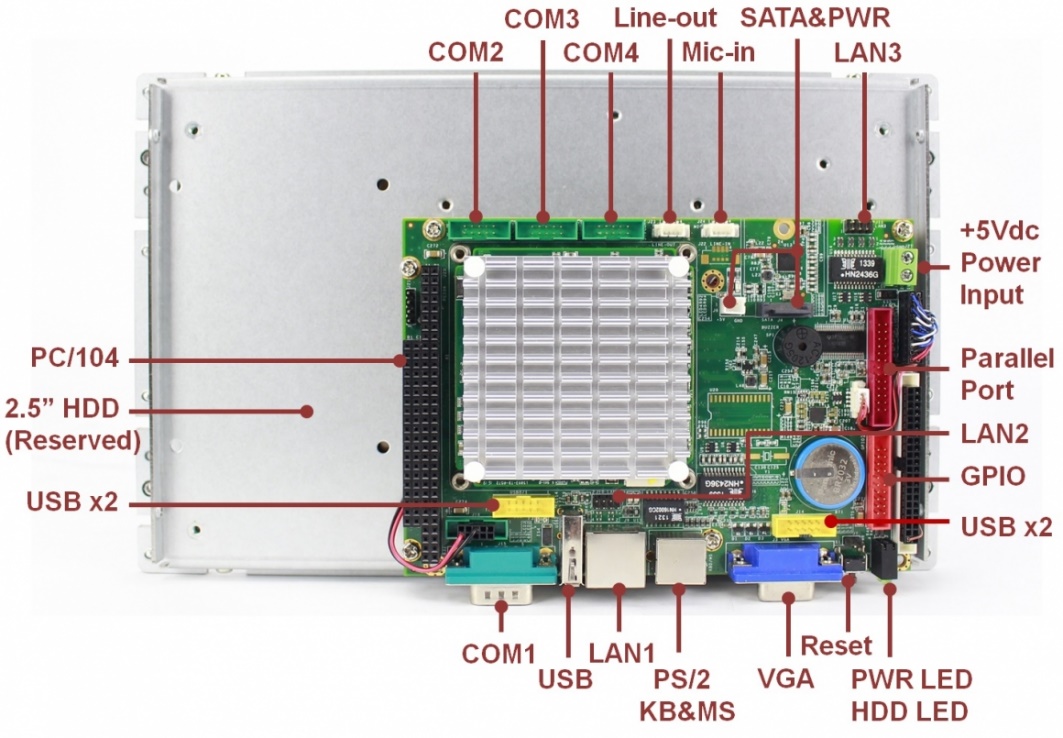

In terms of expandability and connectivity, the VOX-090-TS-D3 is equipped with a PC/104 expansion interface and a comprehensive set of I/O ports, including 4 USB 2.0 ports, 4 RS232/485 interfaces, VGA, audio input/output, and 16-bit GPIO, along with one 10/100Mbps Ethernet port and two Gigabit Ethernet ports. This extensive connectivity makes it easy to handle data transmission, device control, and remote monitoring needs in modern embedded applications, while the PC/104 interface allows for seamless hardware expansion.

VOX-090-TS-N8M

The memory and storage configuration options include 512MB, 1GB, or 2GB DDR3 memory and support for SATA DOM or 2.5-inch HDD, providing flexible storage solutions that accommodate high-speed local data processing and long-term storage requirements.



Open Frame Design for Easy Integration and Customization



The VOX-090-TS-D3's compact 245 x 152.2 x 38.5mm design and lightweight 1.07 kg build make it easy to install in limited spaces. It operates within a temperature range of 0°C to +50°C and is designed with 20W low power consumption to ensure stable performance across various environments.

VOX-090-TS-N8M

Software Resources and Programming Guide

For maximum flexibility, the VOX-090-TS-D3 supports multiple operating systems, including Windows Embedded Standard 7, Windows Embedded Compact 7, Linux, FreeBSD, POS Ready (WePOS), Buildroot, and QNX.

On the following website, you will find our latest user manuals, including OS support resources systems such as evaluation images for Windows Embedded Compact 7 and Windows XP Embedded / Windows Embedded Standard 2009 (Win XPe / WES2009).
For details, please kindly visit the following link: http://tech.icop.com.tw/.

The vortex86 processor programming guide allows software programmers to build their programs more quickly and easily on the Vortex86 processor. This programming guide includes the installation guide for X-Linux, Debian & Ubuntu Linux guide and board support package (BSP) for Windows Embedded OS on Vortex86SX/DX/DX2/DX3.
For details, please kindly visit the following link:
https://www.dmp.com.tw/tech/os-xlinux/
https://www.vortex86.com/news/2


Main features of VOX-090-TS-D3:

  • DM&P SoC Vortex86-DX3- 1GHz, with 1GB DDR3 onboard
  • 4S / 4U / VGA / LCD / LVDS / 2GLAN / LAN / PWM / Audio / 16GPIO / SATA / 5V
  • 9” TFT 1024×600 Resolution LCD with resistive touchscreen
  • Operation Temperature: 0 ~ +50°C/ -20 ~ +60°C (Optional)
  • Brightness 300nits and Backlight 20,000hrs
  • Default SBC: VDX3-6726-1G-T
  • Can install any ICOP’s 3.5-inch SBC

For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
