Unleashing the Potential: The New Generation NX8MM-35

May 31, 2024

NX8MM-35 series has been launched since April 2023, and during this year, ICOP gathers a lot of suggestions from our customers. Therefore, we decided to modify and renew the NX8MM-35 for supporting LVDS display for industrial applications.

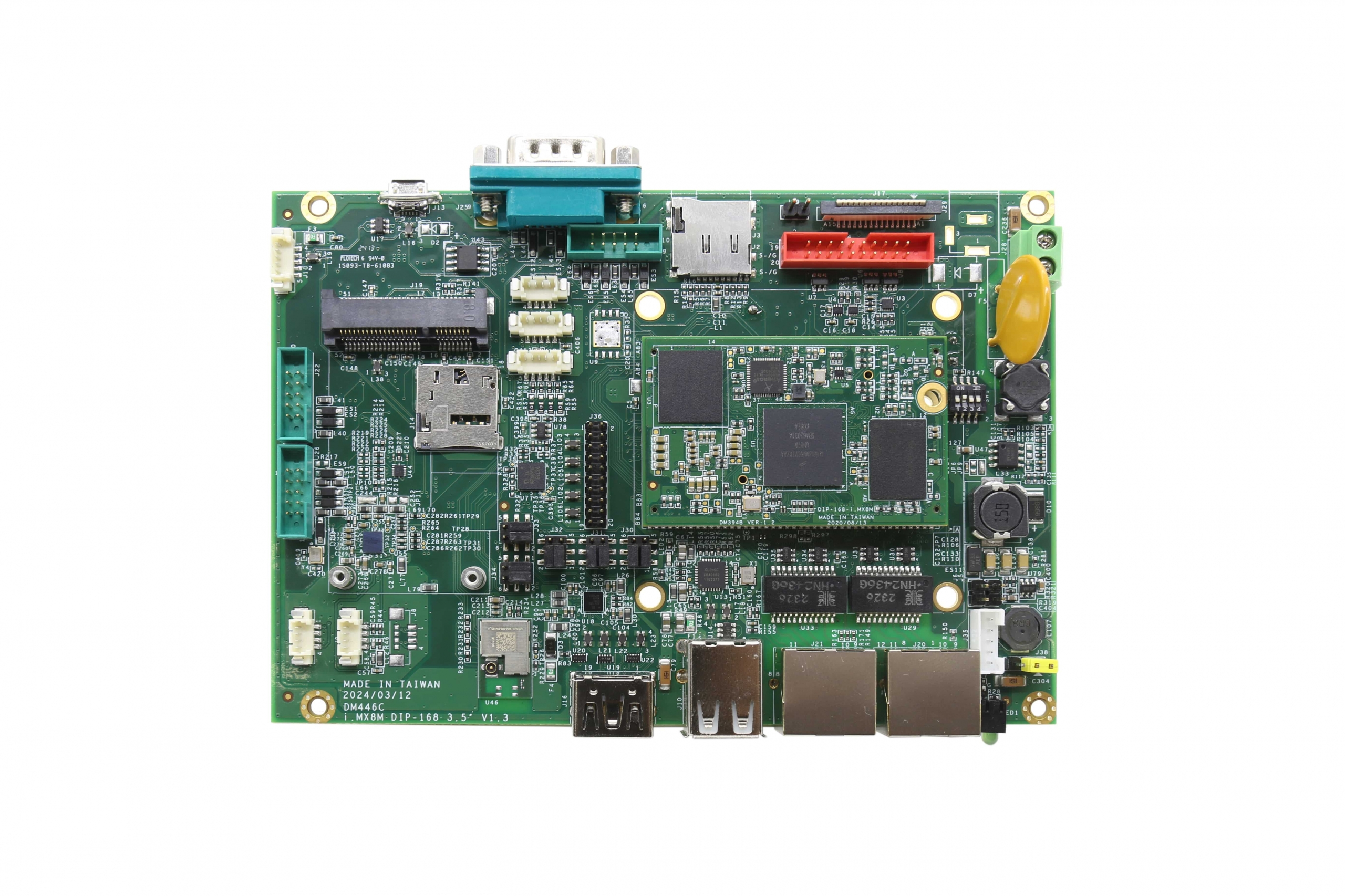

nx8mm-35-front

The NX8MM-35 is a powerful industrial single board computer from ICOP Technology, featuring the following specifications:

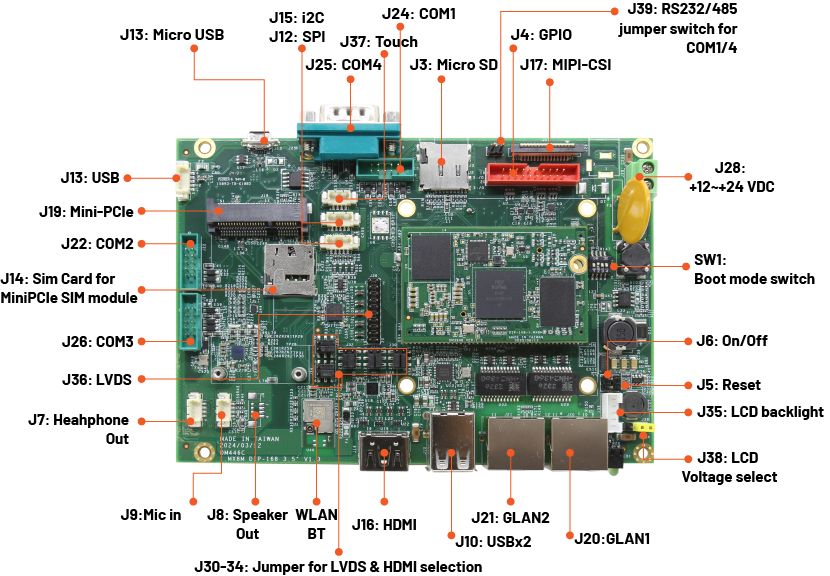

board outline
  • Processor: i.MX 8M Mini Quad-core ARM Cortex-A53 up to 1.6/1.8GHz
  • Memory: Up to 4GB LPDDR4
  • Storage: Up to 64GB eMMC
  • Display: LVDS/HDMI interface
  • Camera: MIPI-CSI interface
  • Connectivity: Gigabit Ethernet, USB x4, COMx4, i2c, SPI, GPIO, Touch, MiniPCIe with SIM card holder and HD Audio.
  • Temperature range: -20°C to +70°C or -40°C to +80°C (Optional)

Main differences between the old and new NX8MM-35.

  • Display:
    • Old -> MIPI-DSI/HDMI interface
    • New -> 24-bit LVDS/HDMI interface.
  • Connectivity:
    • Old: SPIx2
    • New: SPIx1 (UART3 switchable)/Touch controller/SIM card holder.

The board supports both LVDS and HDMI interfaces, which can be easily switched via a jumper. This flexibility allows the NX8MM-35 to be used in a wide range of display applications, from high-definition HDMI displays to industrial LCD panels using LVDS. This switchable display function makes it an excellent choice for developers who need adaptability in their projects.

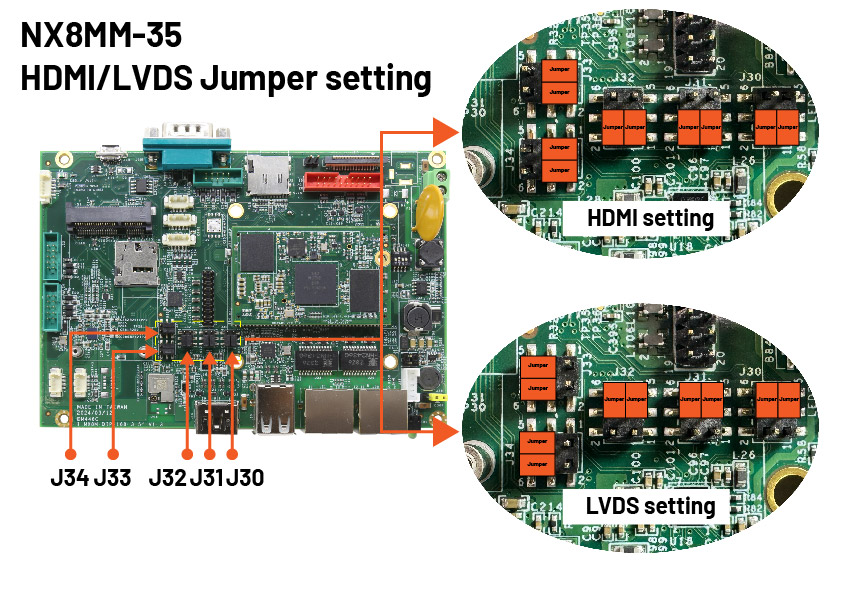

How to switch the display type by jumper.

NX8MM-D168

Key Benefits of LVDS

The NX8MM-35, an advanced single-board computer, integrates the LVDS interface to enhance its functionality and applicability in industrial contexts. Here are some specific ways LVDS contributes to the NX8MM-35's capabilities:

  1. High-Speed Data Transmission: LVDS supports high data transfer rates, which is essential for applications that require rapid data exchange.
  2. Low Power Consumption: The technology operates at low voltages, which significantly reduces power consumption compared to other signaling methods.
  3. Noise Immunity: LVDS offers excellent resistance to electromagnetic interference, ensuring reliable communication even in electrically noisy environments.
  4. Signal Integrity: Differential signaling helps maintain signal integrity over long distances, which is crucial for industrial applications where devices are often spread out over large areas.

Development Support

  1. Technical Resources:

    ICOP Technology provides comprehensive technical support for the NX8MM-35, including recipes, demo images, and device tree configurations. These resources help developers quickly get started with the board and accelerate their development process.

  2. Custom Carrier Board Development:

    The NX8MM-35 serves as a development platform for custom carrier board development, enabling customers to tailor the hardware to their specific needs. This flexibility ensures that the board can meet unique application requirements in industrial automation.

    The NX8MM-35 single-board computer offers a powerful and versatile solution for industrial automation applications. Its robust processing capabilities, extensive connectivity options, and support for high-resolution displays make it an excellent choice for a wide range of automation tasks. With the NX8MM-35, industrial operations can achieve greater efficiency, reliability, and performance, driving advancements in automation technology.


nx8mm-35-front

Main Features of NX8MM-35:

  • i.MX 8M Mini Quad-core ARM Cortex-A53 up to 1.6/1.8GHz
  • Memory: Up to 4GB LPDDR4
  • Storage: Up to 64GB eMMC
  • Display: LVDS/HDMI interface
  • Camera: MIPI-CSI interface
  • Connectivity: GLANx2, USB x4, COMx4, i2c, SPI, GPIO,Touch, MiniPCIe with Sim Card holder and HD Audio.
  • Temperature range: -20°C to +70°C or -40°C to +80°C (Optional)

For more info and sample request, please write to info@icop.com.tw, call your nearest ICOP Branch, or contact our Worldwide Official Distributor.
